Wheels: Application and ID

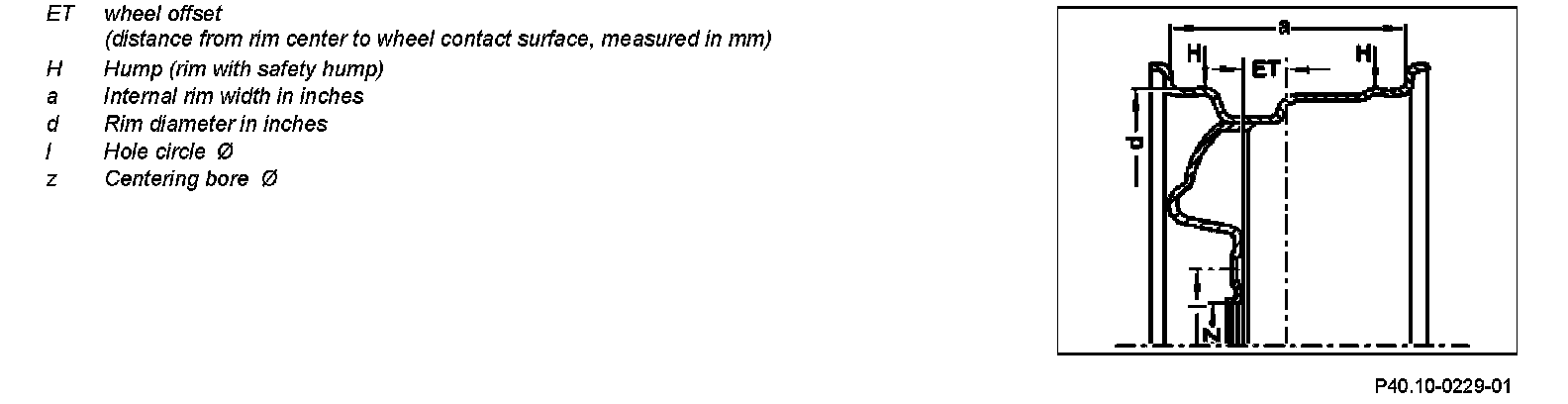

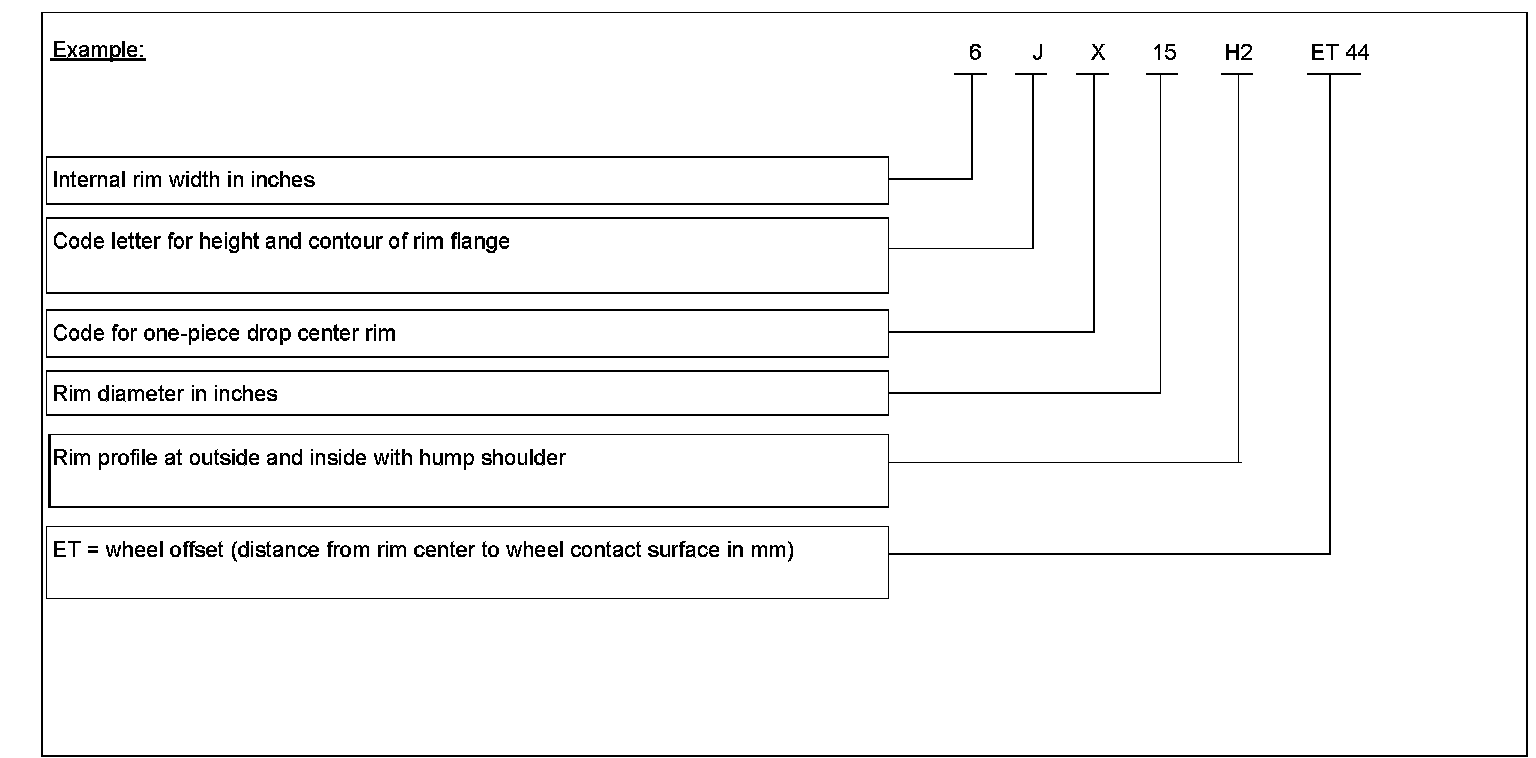

GF40.10-P-1010-01A Rim designation

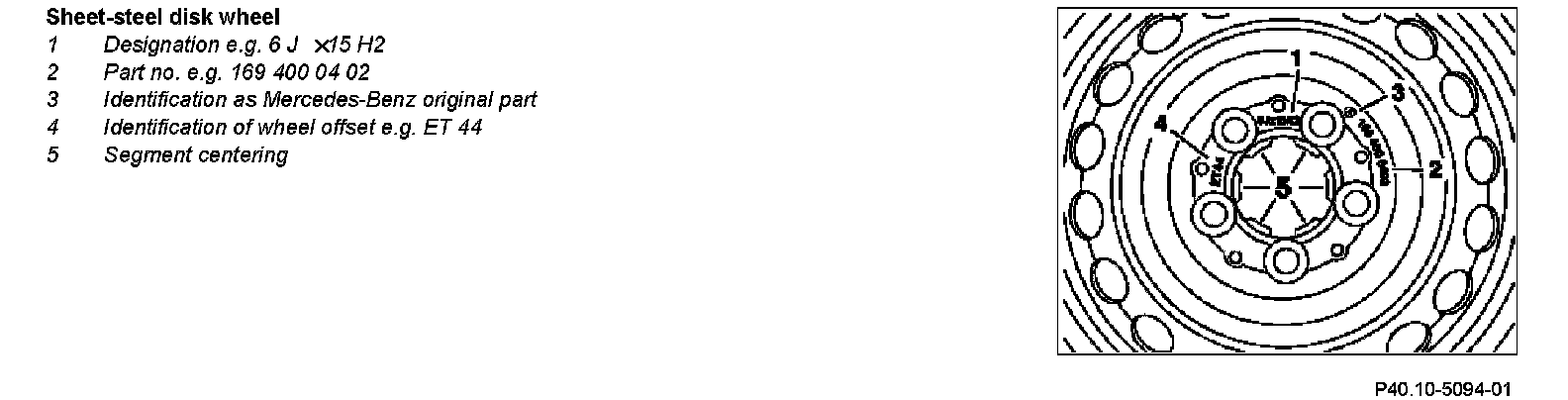

Component Identification:

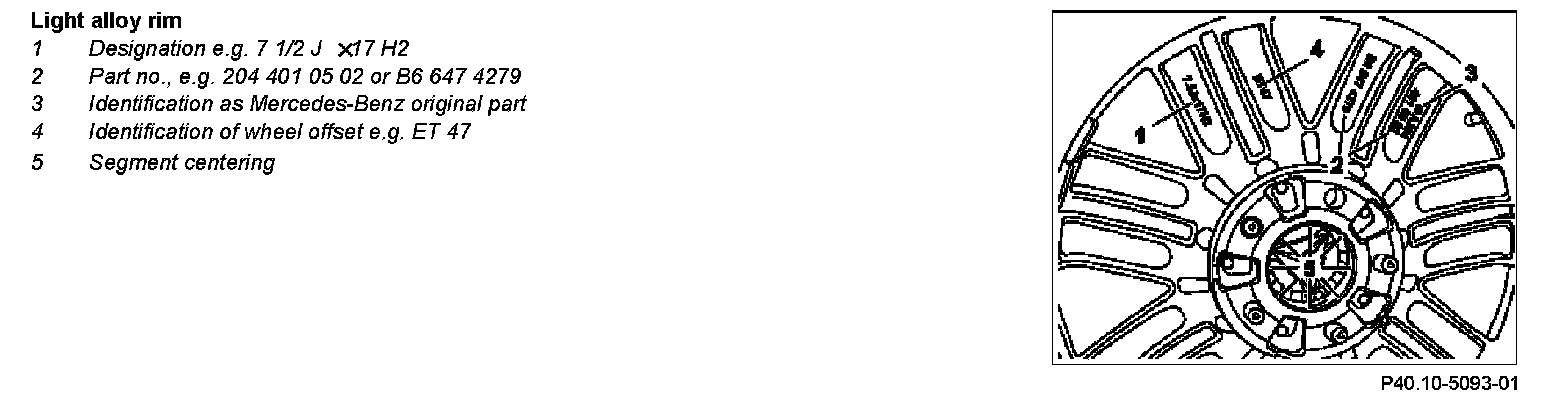

Component Identification:




Component Identification:
