AR32.20-P-0300QBS Remove/Install Stabilizer Bar on Front Axle



AR32.20-P-0300QBS Remove/install stabilizer bar on front axle
- with CODE (P98) Black Series

Component Identification:

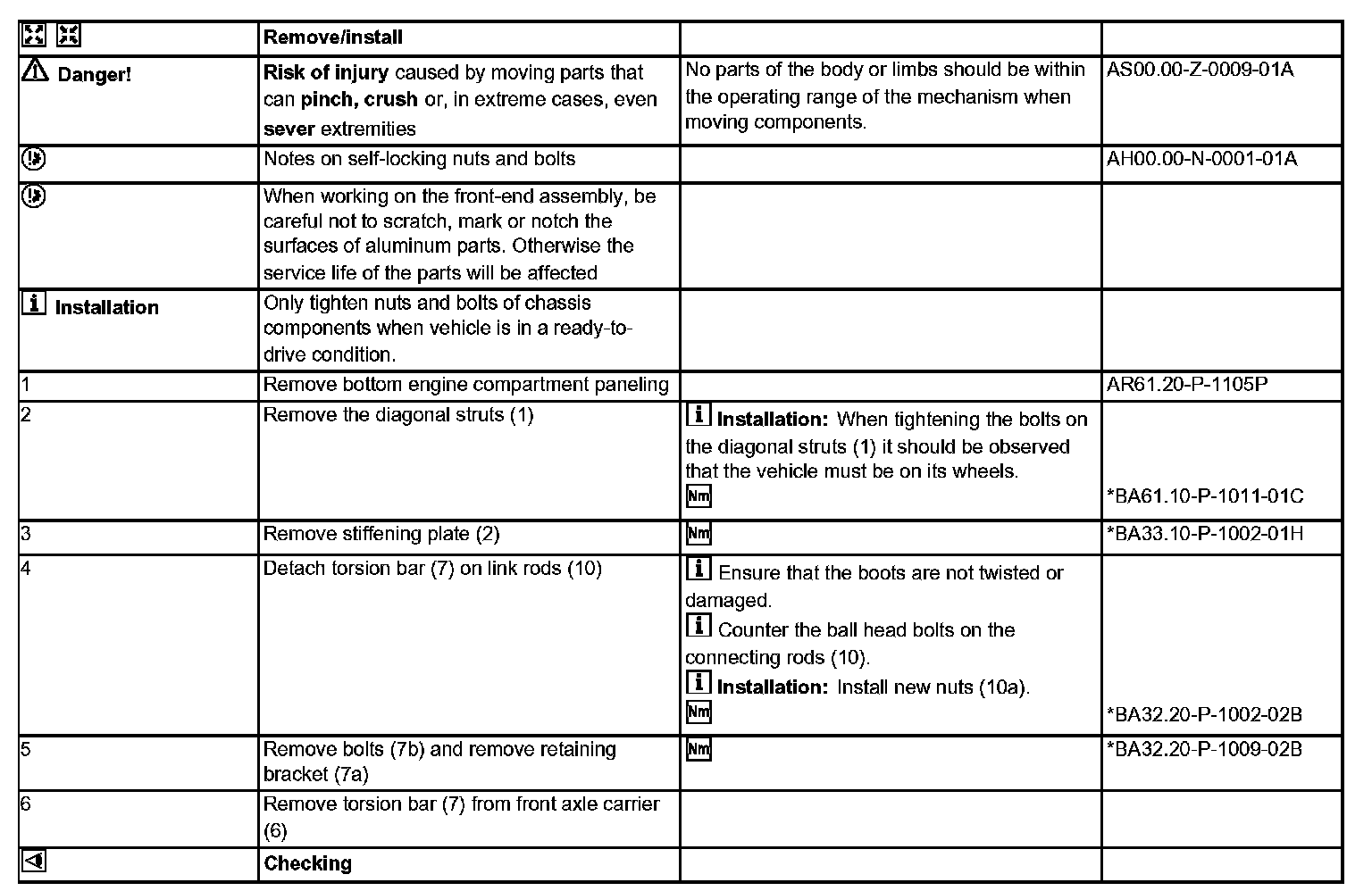

Remove/install Steps 1-6:

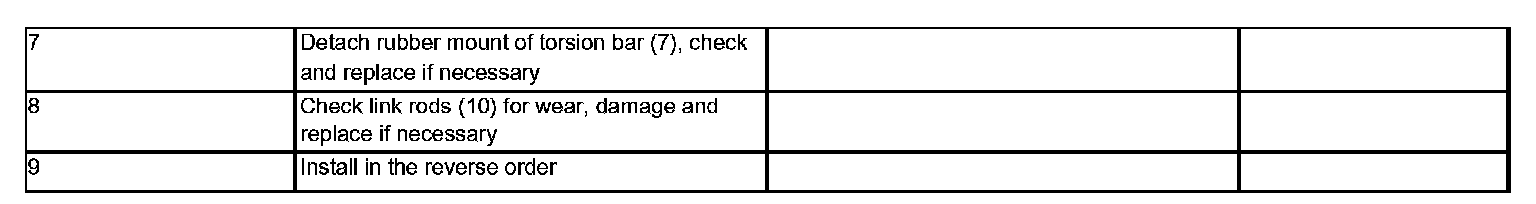

Remove/install Steps 7-9:

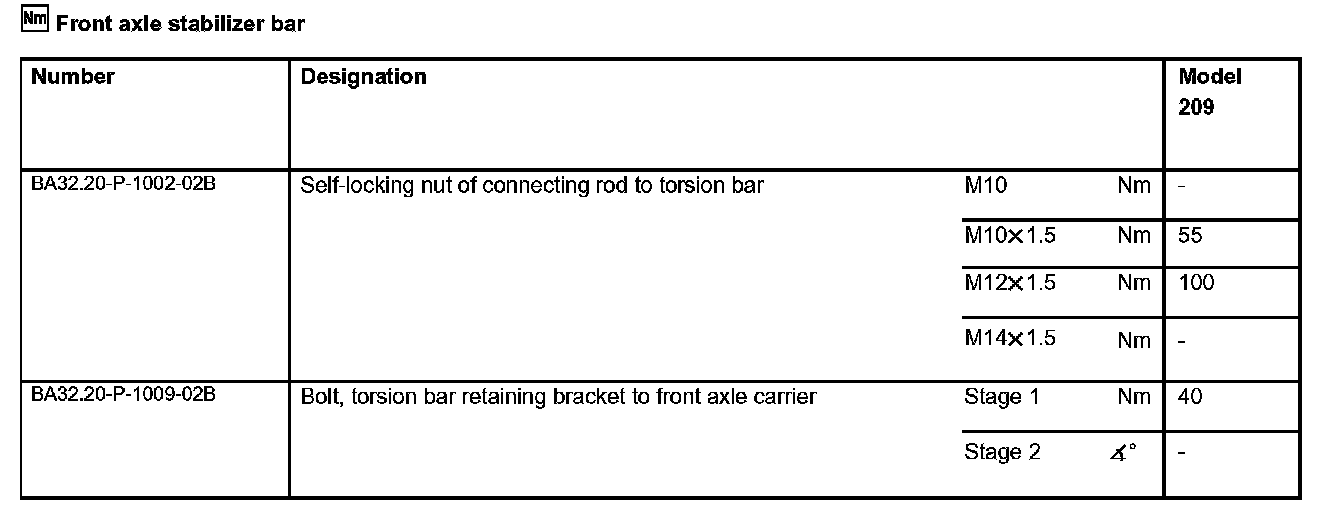

Front axle stabilizer bar:

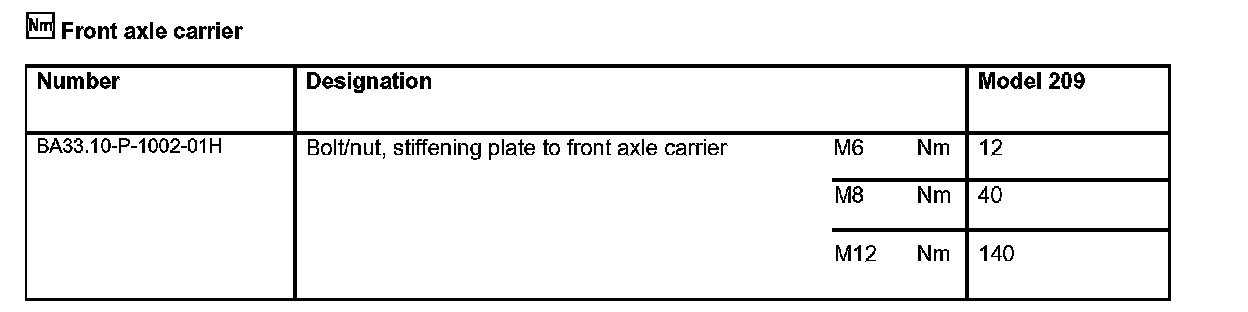

Front axle carrier:

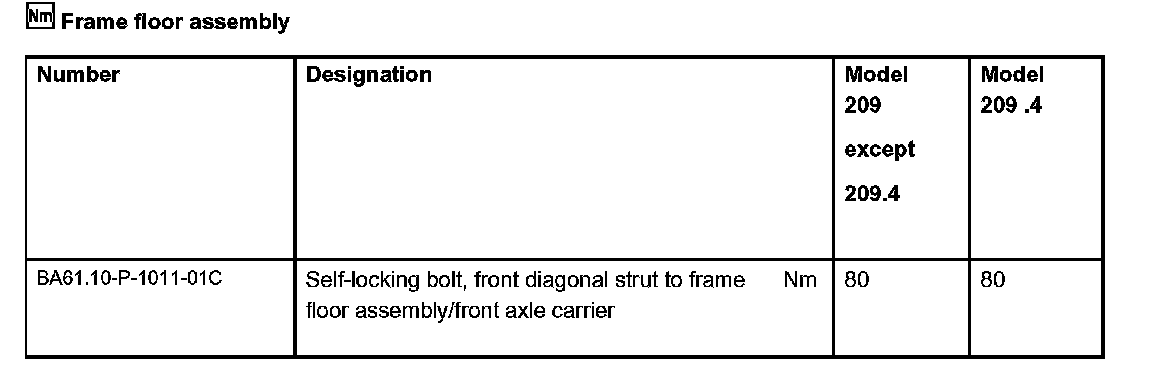

Frame floor assembly:
