AR35.20-P-0114P Remove/Install Spring Link, Replace Rubber Mount

AR35.20-P-0114P Remove/Install Spring Link, Replace Rubber Mount
- except CODE (P98) Black Series [model 209]







Work Instructions

DANGER:
- Risk of fatal accident from vehicle slipping or toppling off the lift platform
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer

CAUTION: Installation Replace self-locking nuts and bolts

NOTE: Remove and install rear spring

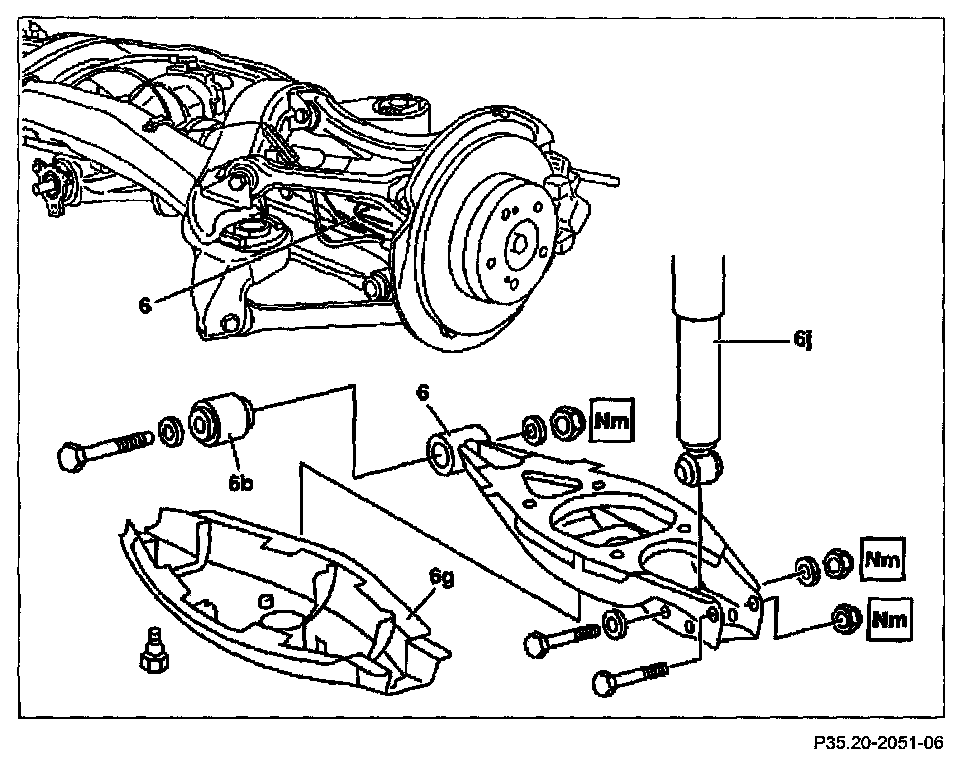

6 Track control arm

NOTE: When tightening the nuts and bolts, move rear axle shaft to approximately horizontal position

6B Rubber bearing to spring link
- If necessary after checking: Remove and install spring link rubber mount.
6g Spring link covering
6j Shock absorber at spring link
