AR35.20-P-0114-01B Remove/Install Spring Control Arm Rubber Mount

AR35.20-P-0114-01B Remove/install spring control arm rubber mount
- except CODE (P98) Black Series [Model 209]


Harder spring control arm rubber mount
Spring control arm rubber bearings standardized

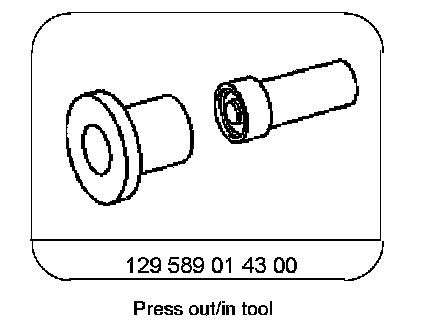

Special Tools:

Component Identification:

Removing

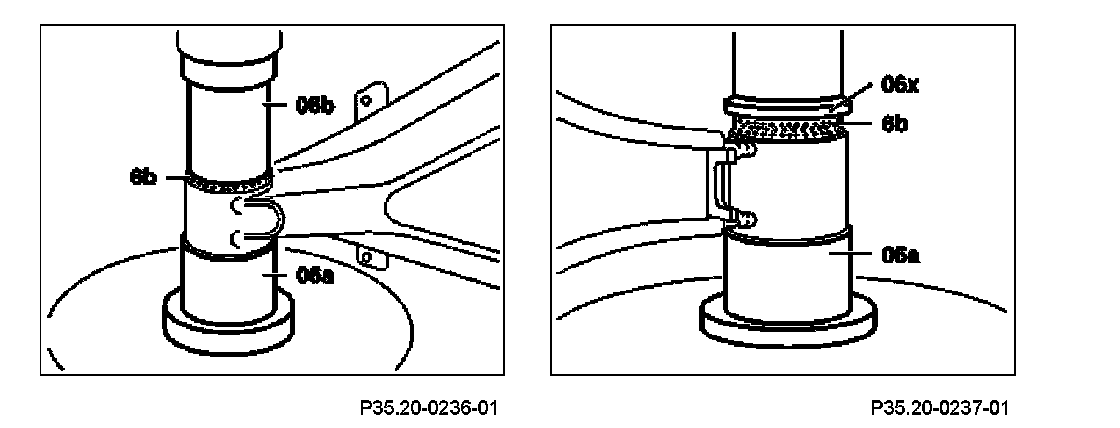

1 Press rubber mount (6b) out of spring control arm using the removal and installation tool (06a, 06b).

To press out jammed rubber mounts (6b) precisely, first press the small protrusion of the rubber mount up to the spring control arm sleeve using a flat pressure plate (06x).

Component Identification:

Install

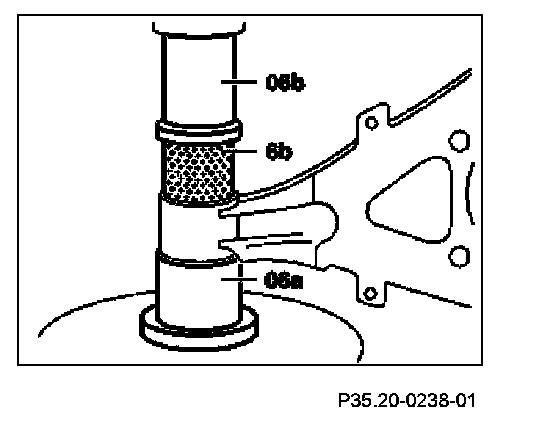

2 Using press out/in tool (06a, 06b), press rubber mount (6b) into spring control arm until both ends of steel sleeve are same distance from spring control arm sleeve.
