Procedures



AR46.20-P-3500P Sealing pipe from control head to steering gear housing

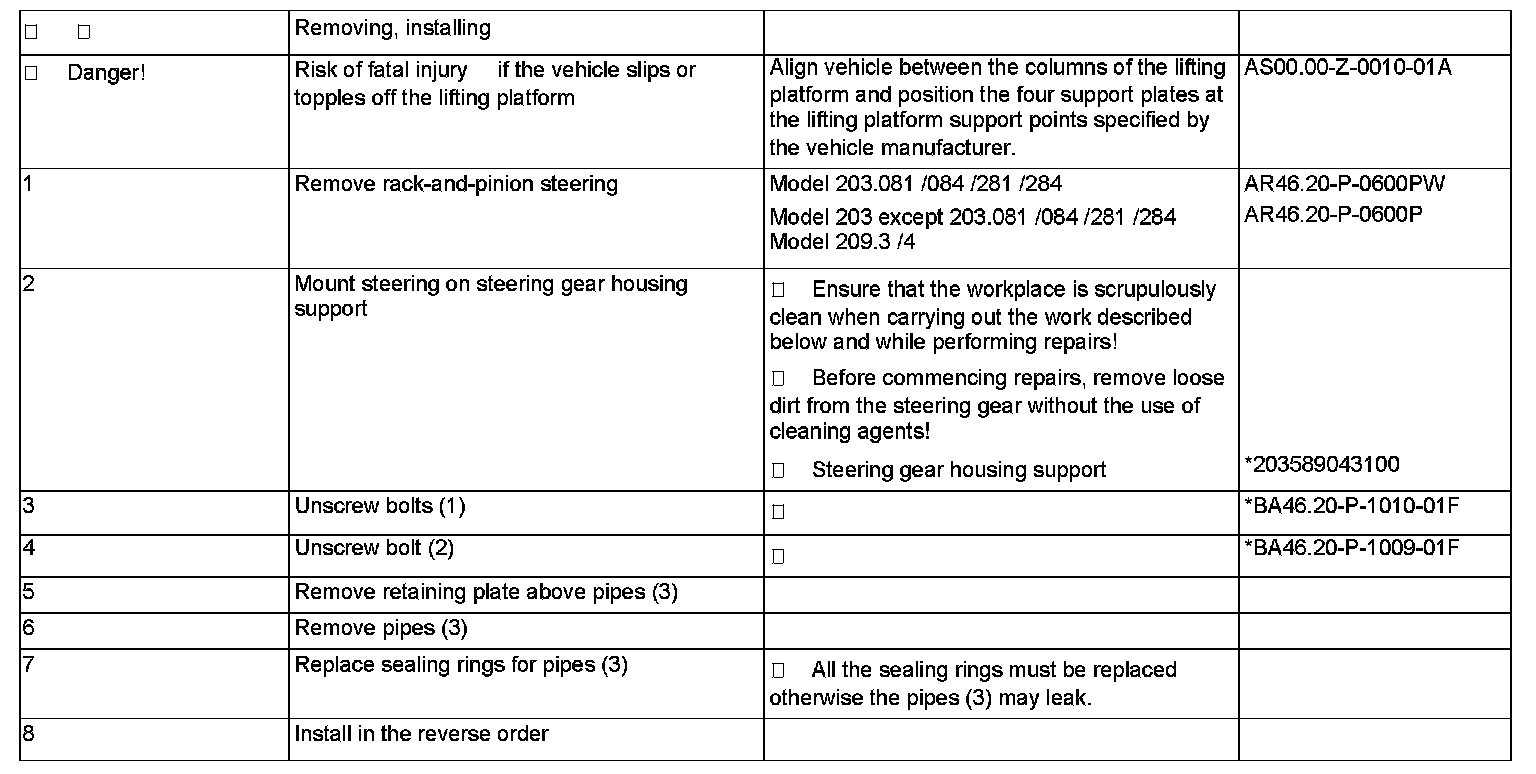

Steps 1-8:

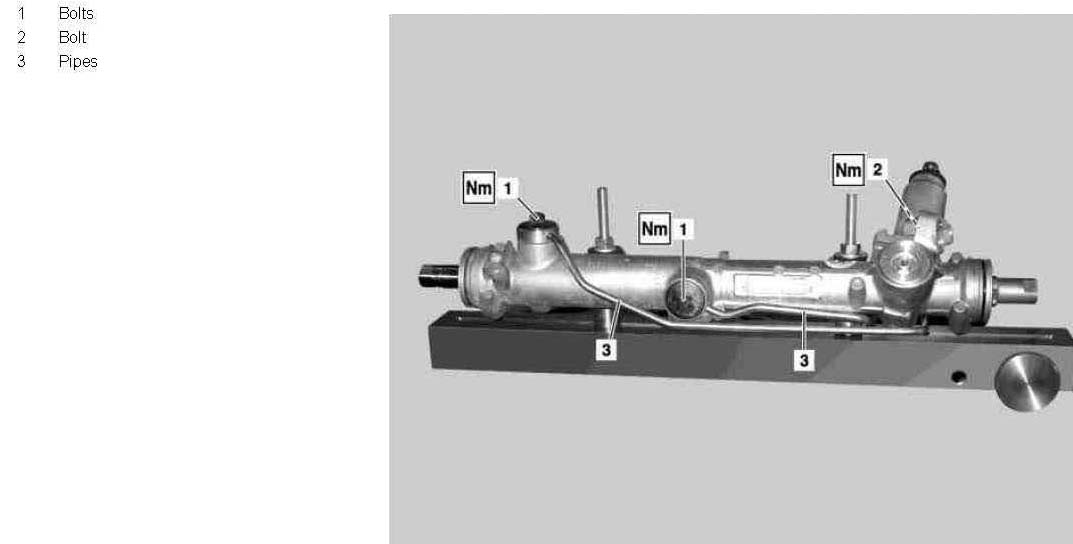

Part 1:




Part 2:

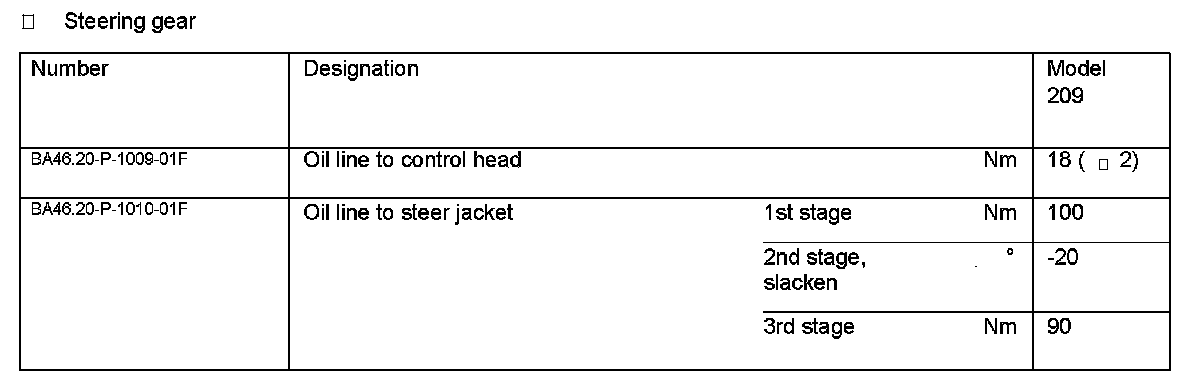

Steering gear

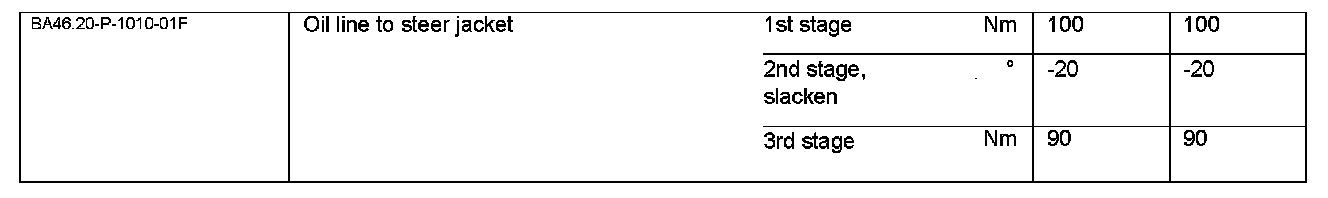

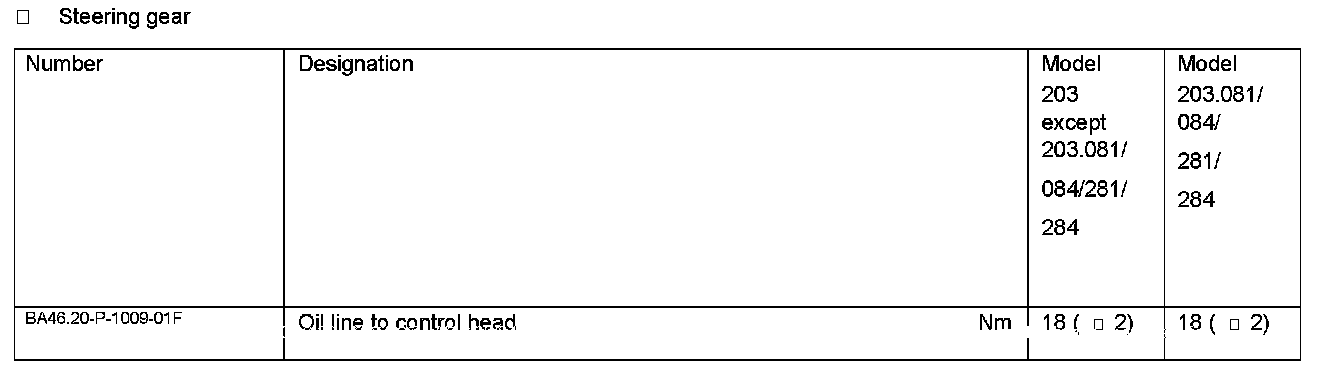

Steering gear

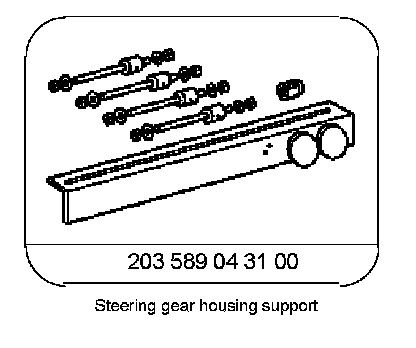

Steering gear housing support
