GF46.15-P-4101Q ESC
GF46.15-P-4101Q ESC

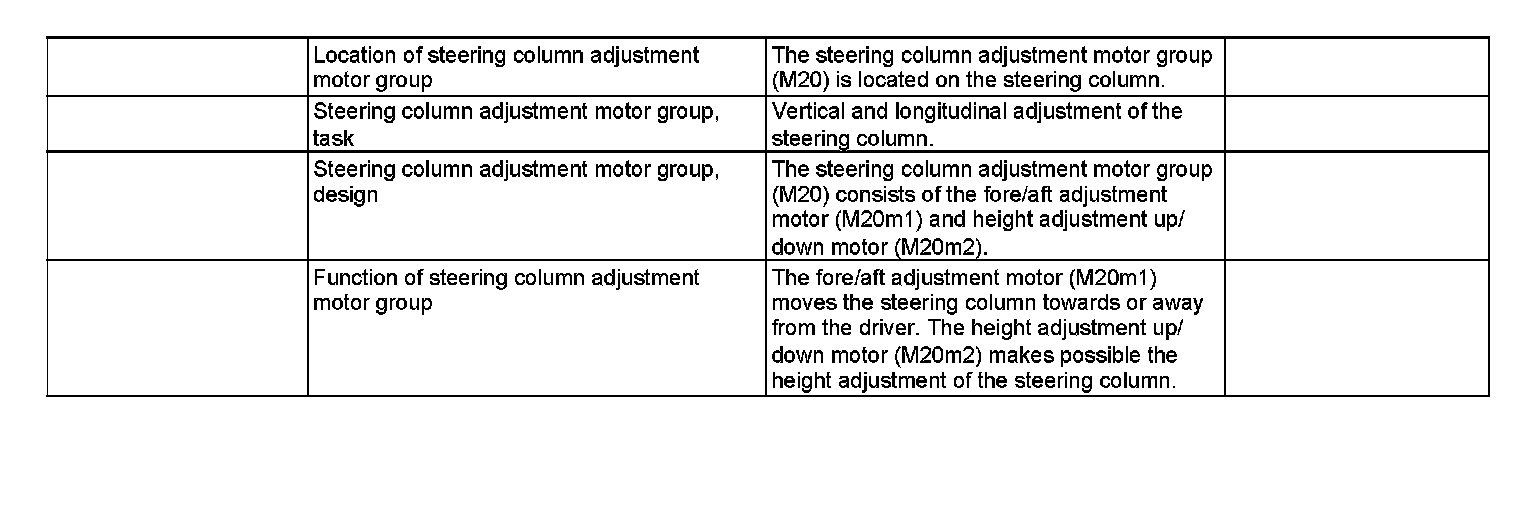

GF46.15-P-4101Q ESC [ELV] motor group, location/task/design/function
- with CODE (275c) Electronically adjustable driver seat,
steering column
and exterior mirrors with memory

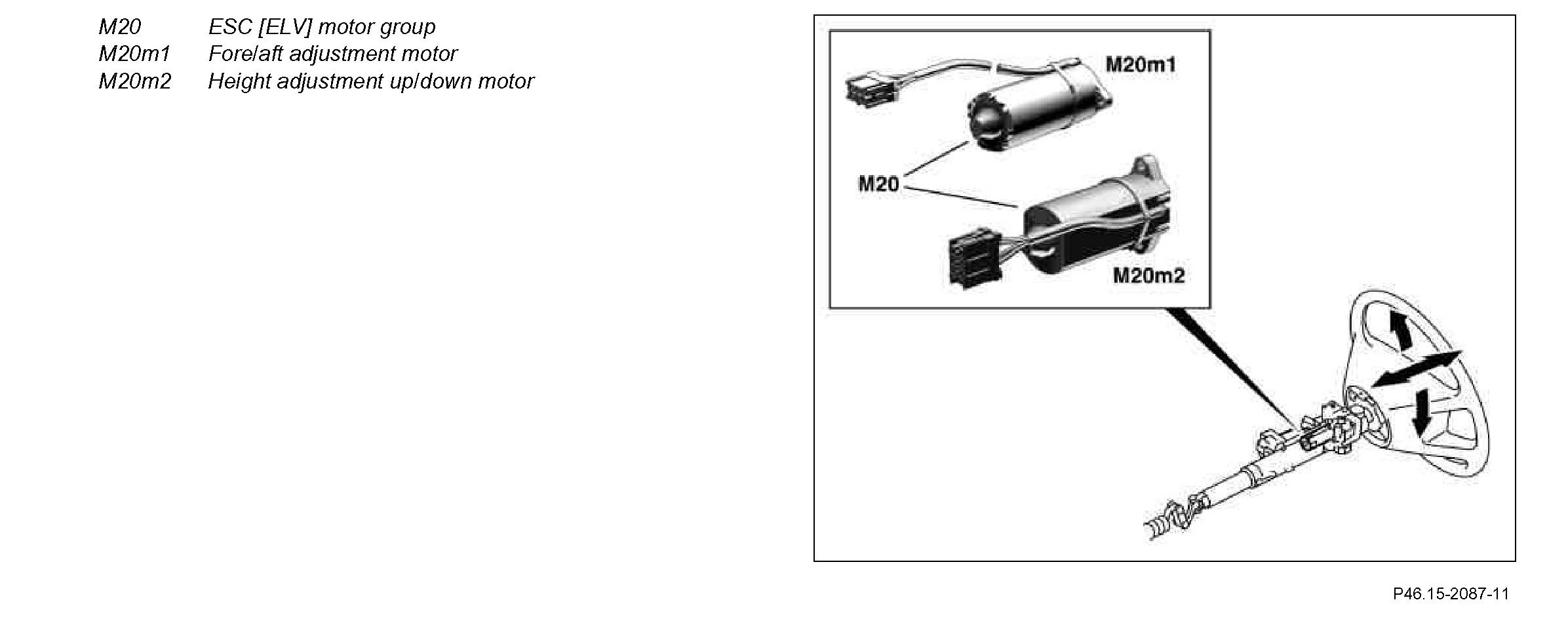

Component Identification:
