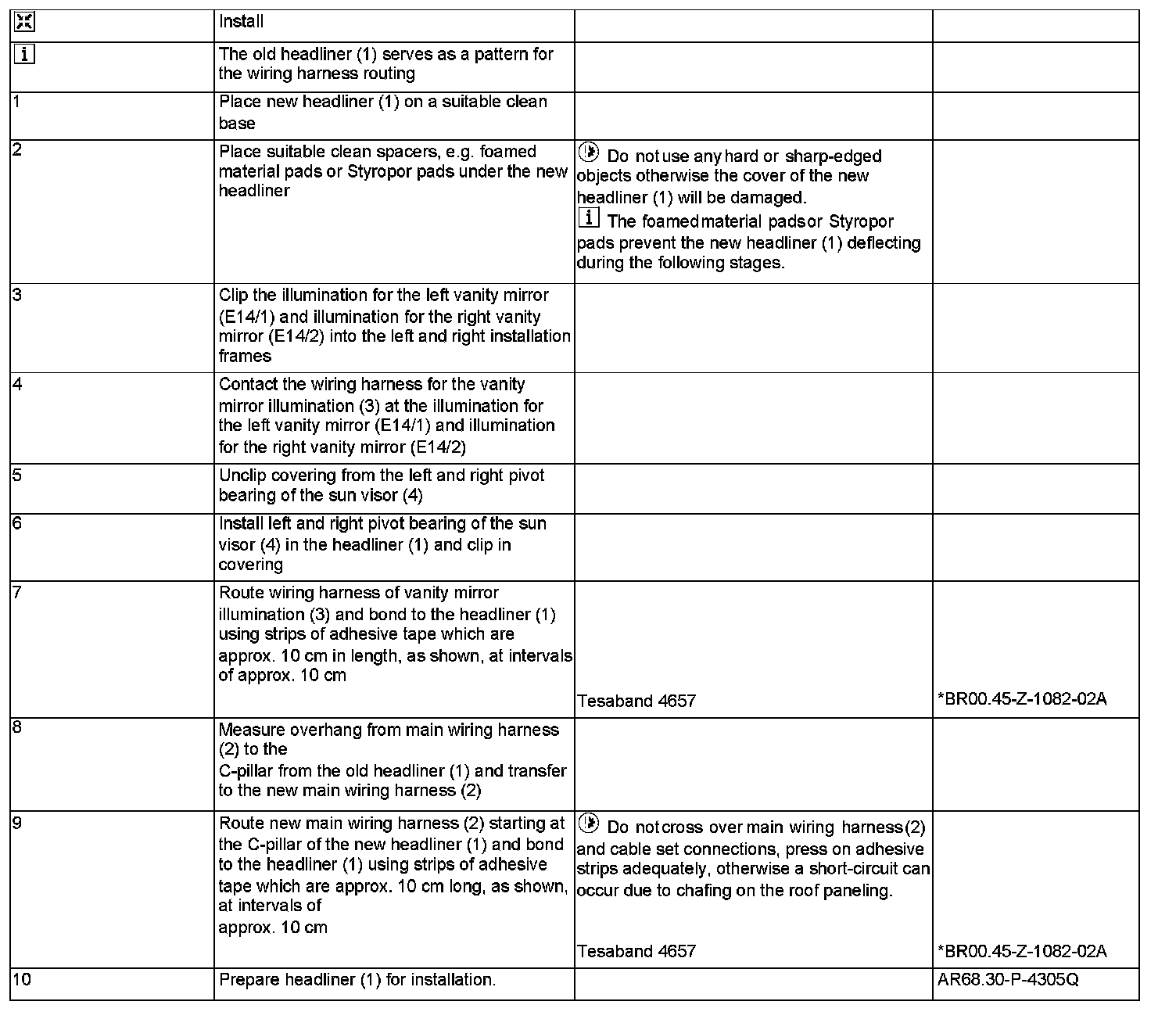

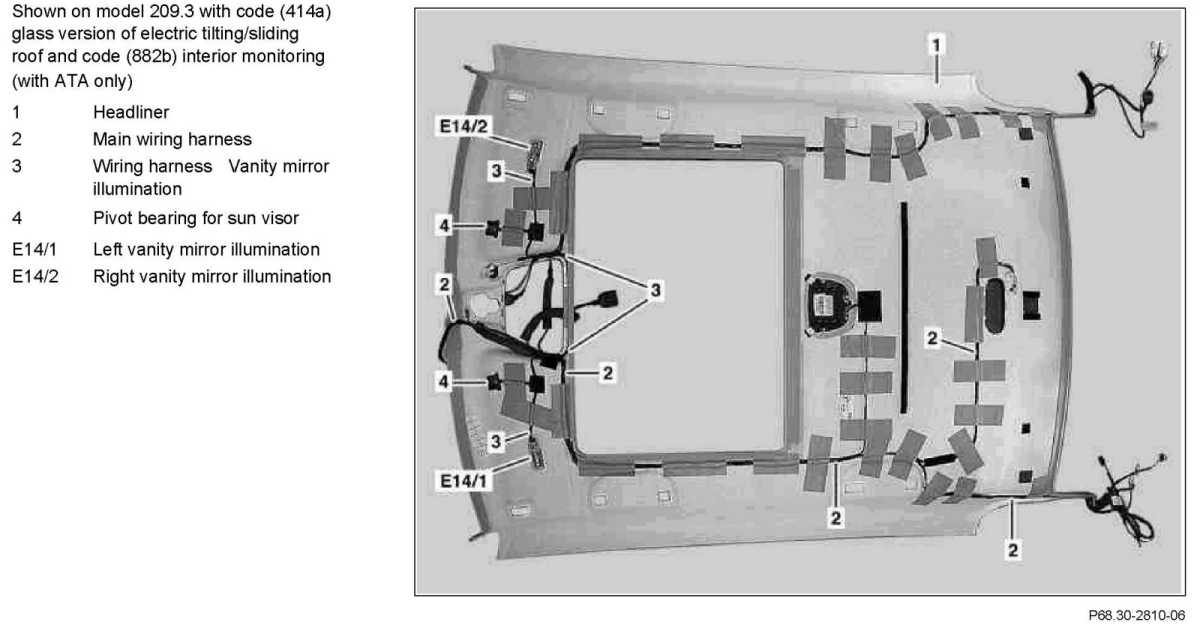

AR54.18-P-0020Q Install Headliner Wiring Harness
AR54.18-P-0020Q Install Headliner Wiring Harness
AR54.18-P-0020Q Install Headliner Wiring Harness
