AR15.40-P-5710P Remove/install
alternator
belt pulley

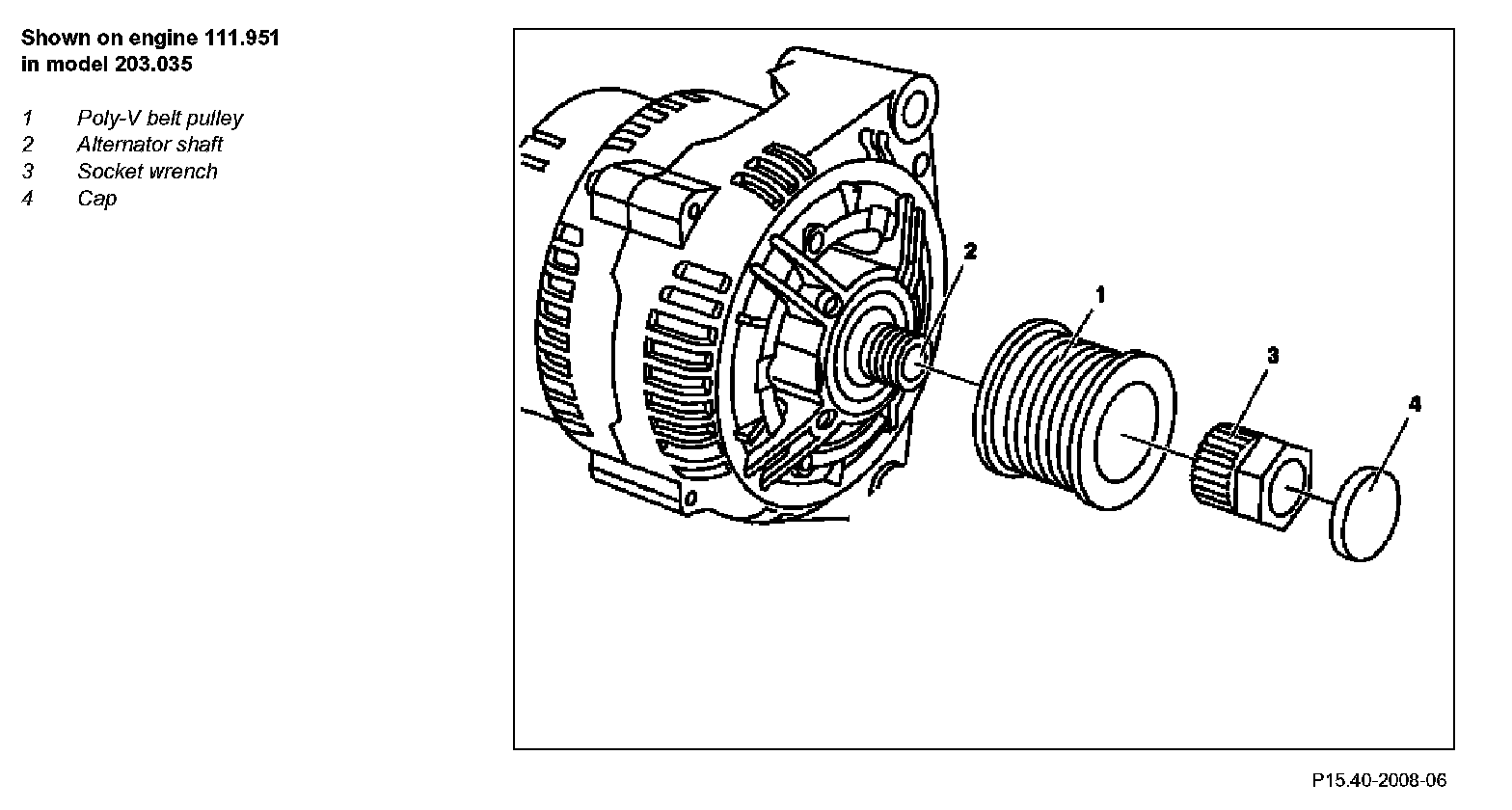

Component Identification:

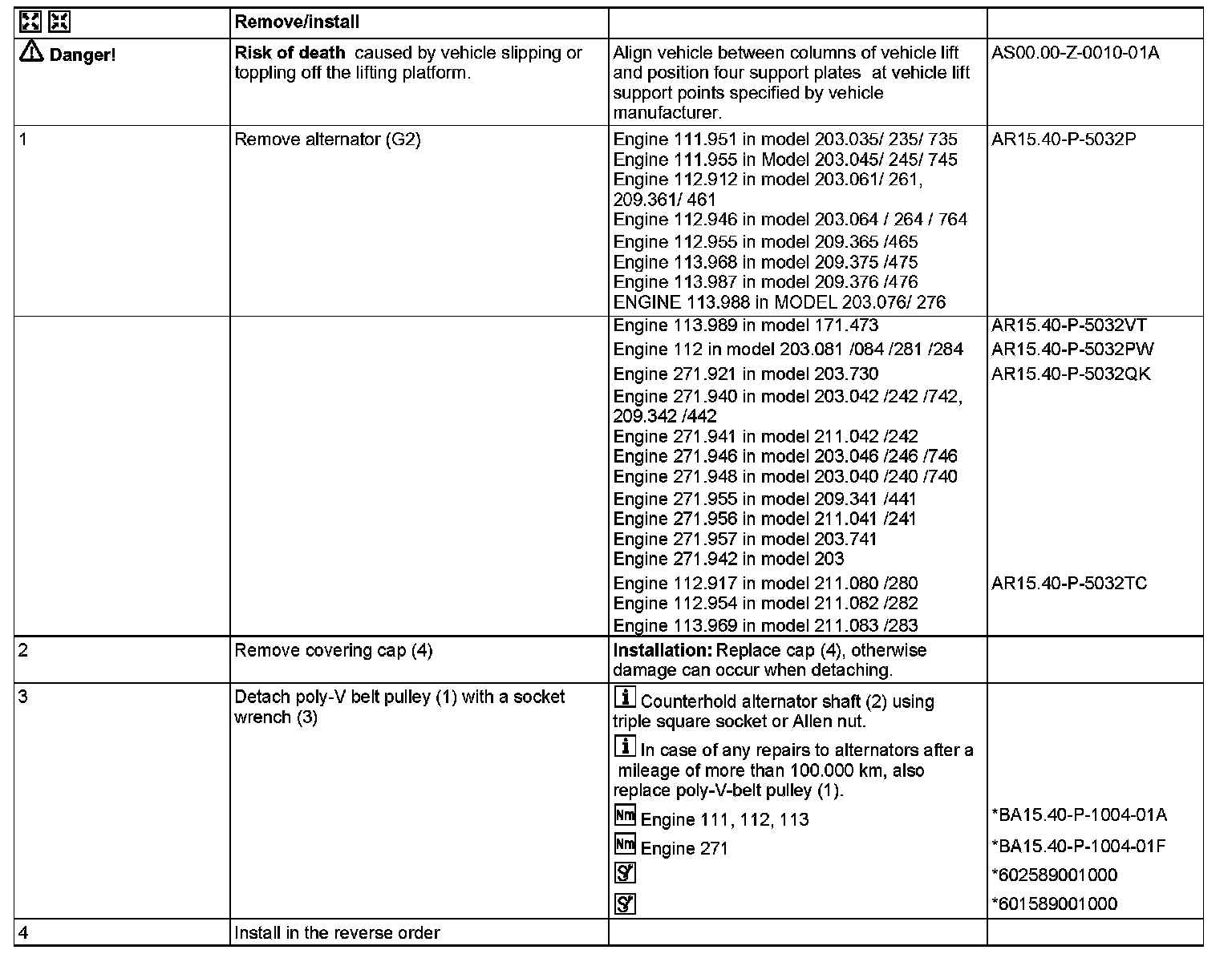

Steps 1-4:

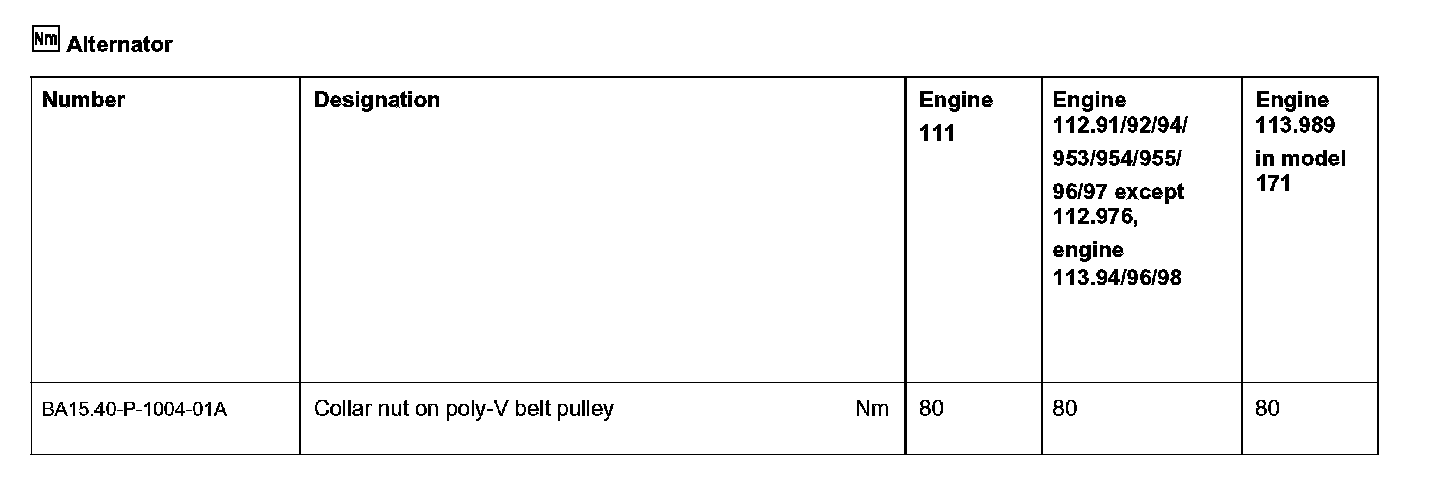

Alternator:

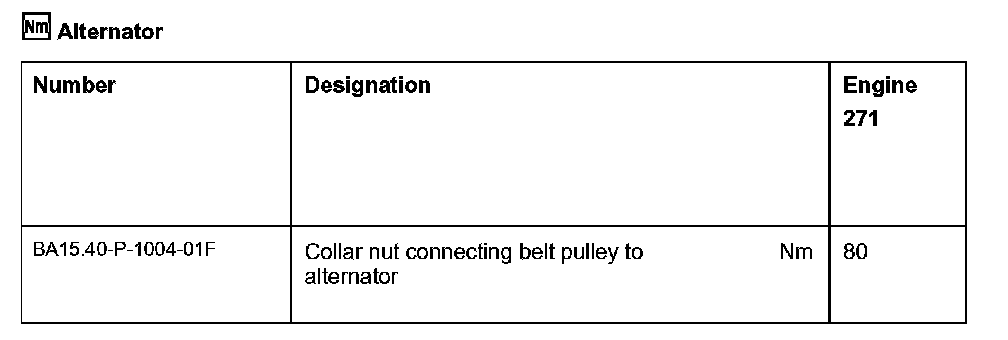

Alternator:

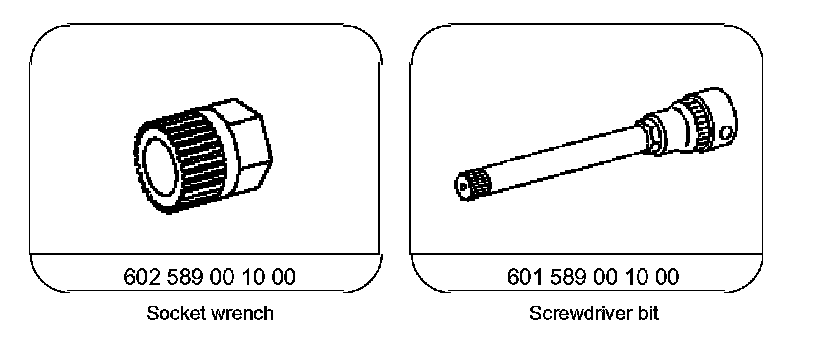

Special Tools:
