AR54.10-P-1129P Check Condition of Battery
AR54.10-P-1129P Check Condition of Battery
AR54.10-P-1129P Check Condition Of Battery

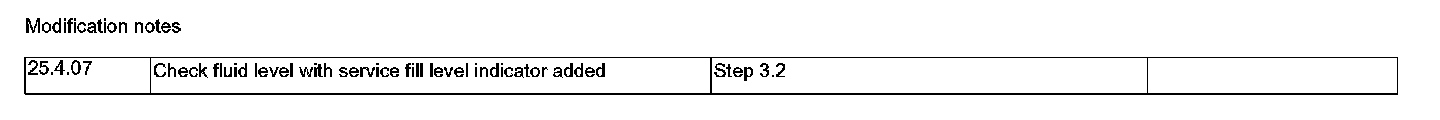

Modification Notes:

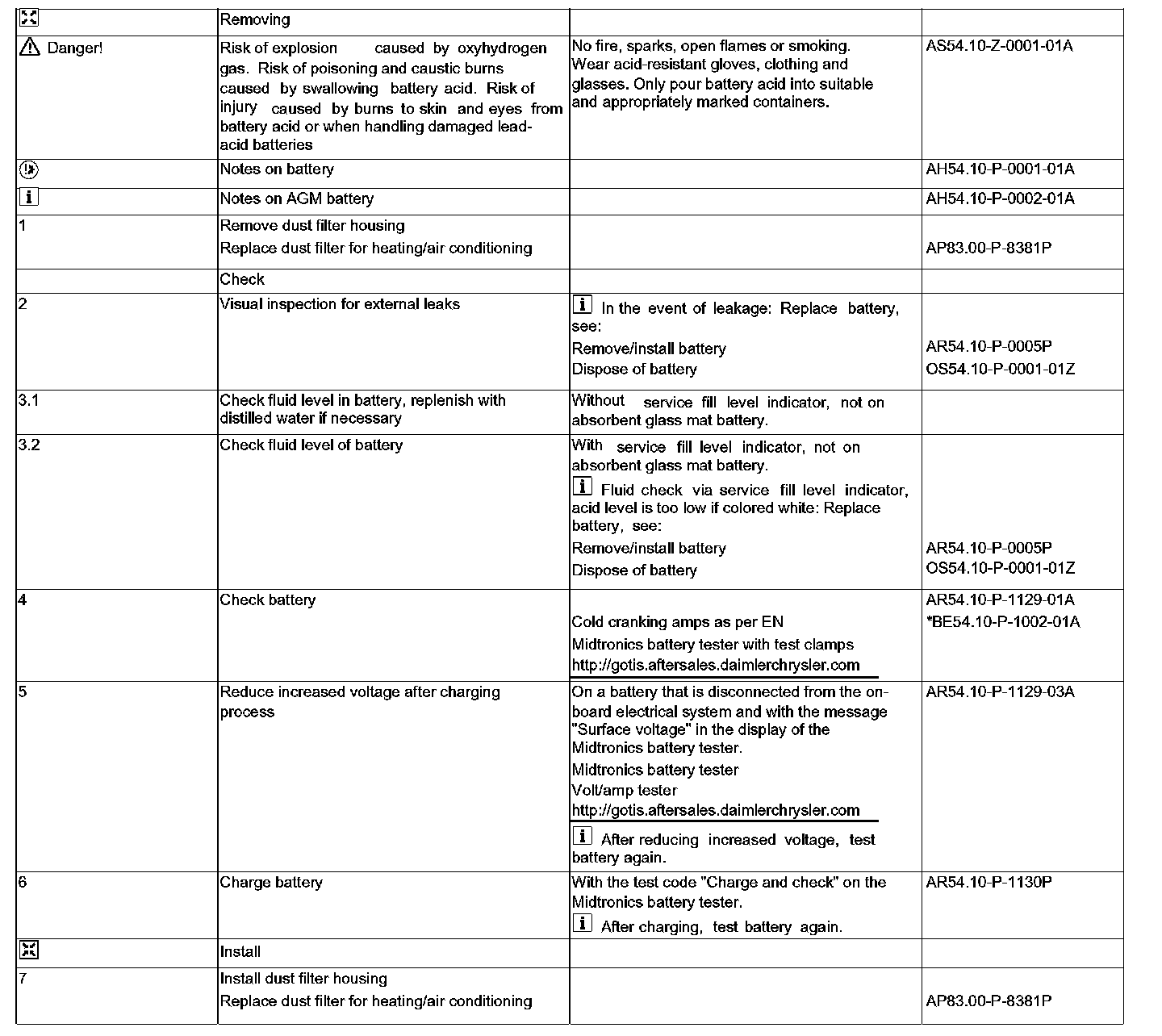

Steps 1 - 7:

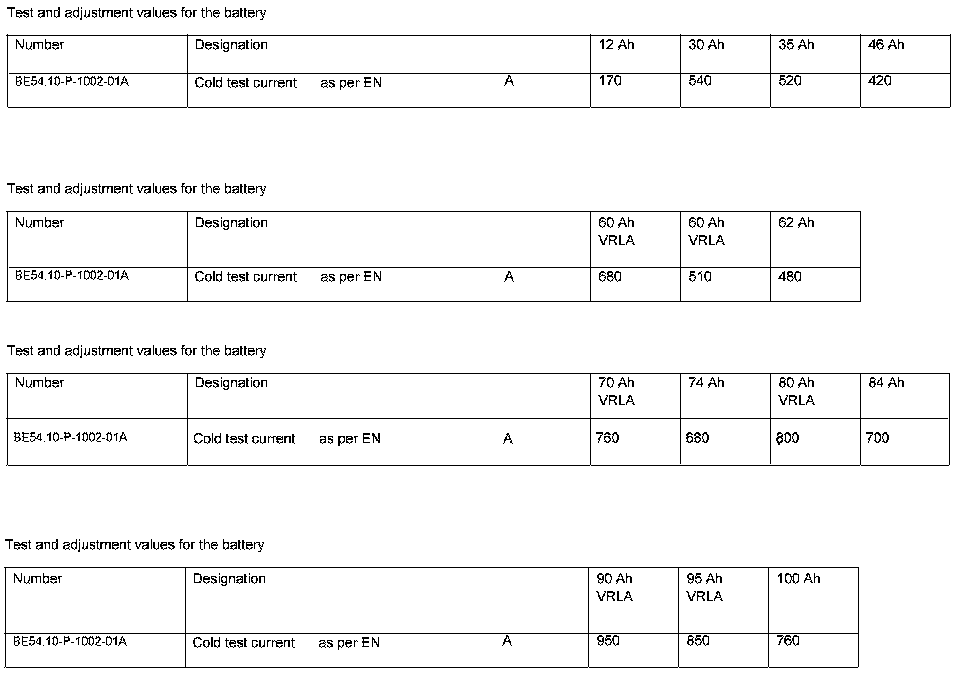

Test And Adjustment Values For The Battery:
