Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Testing and Inspection >> AR54.10-P-1129A Check Battery State

AR54.10-P-1129A Check Battery State

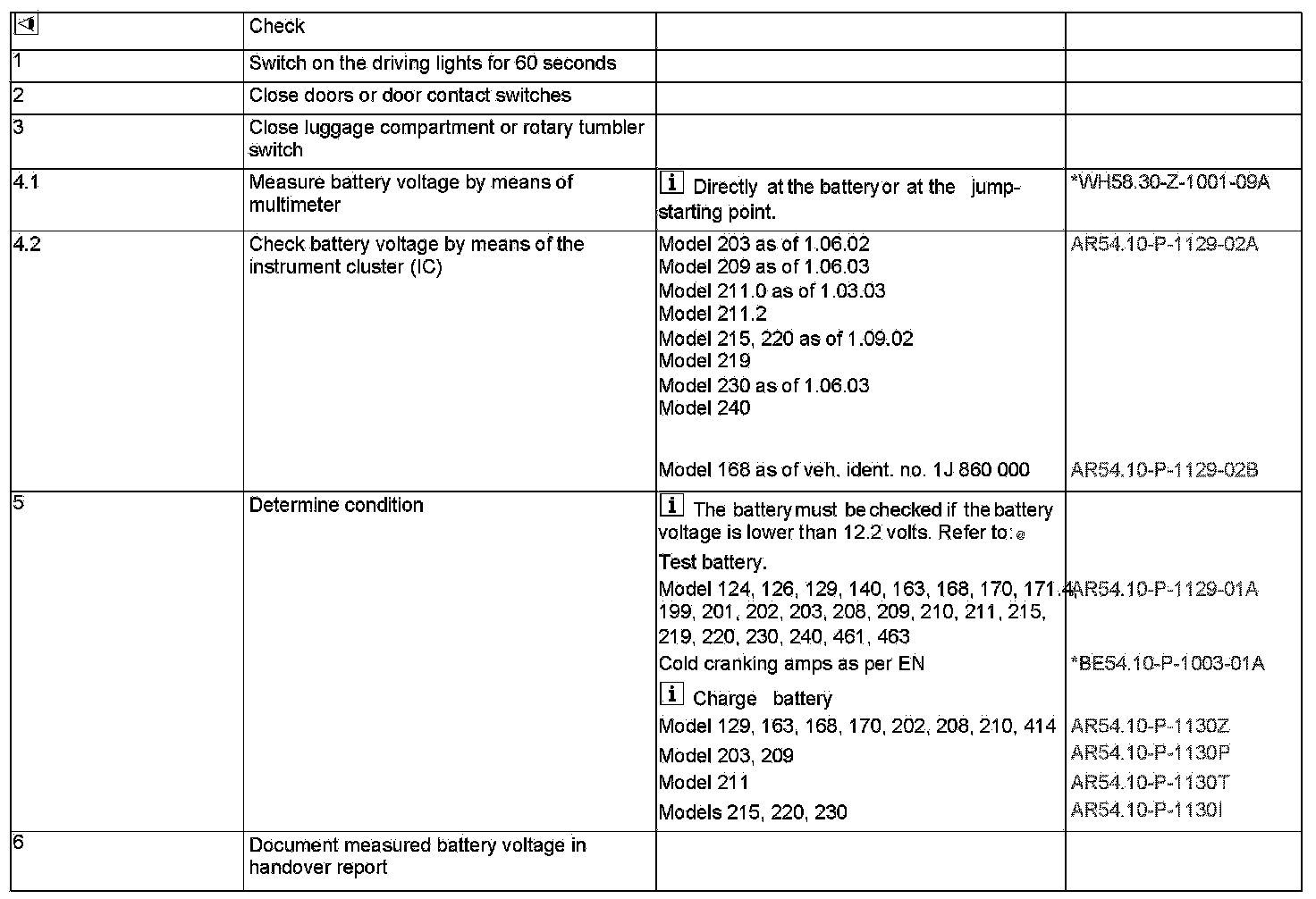

Check Battery State
In addition to delivery inspection prior to vehicle delivery

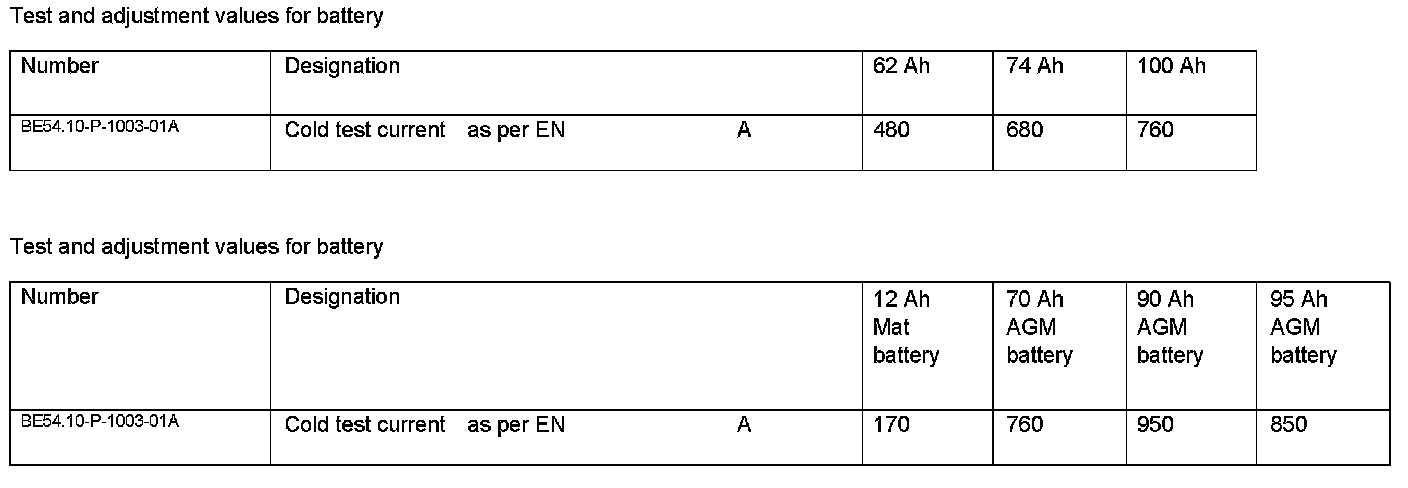

Test And Adjustment Values For Battery


Test and Adjustment Values for Battery:
