BE40.20-P-1000-07A Front Axle Toe



BE40.20-P-1000-07A Front axle toe
- except CPDE (P99) Special model "AMG Black Series" [model 230]

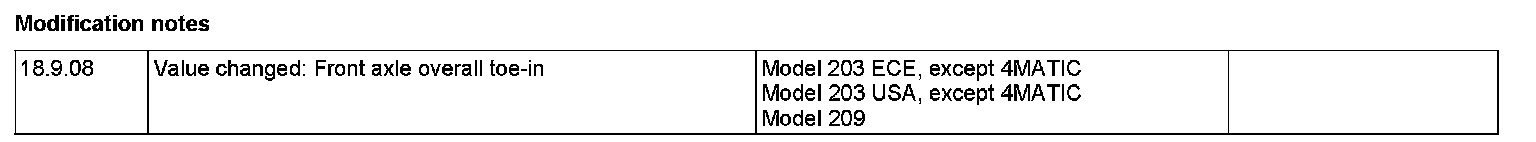

Modification Notes:

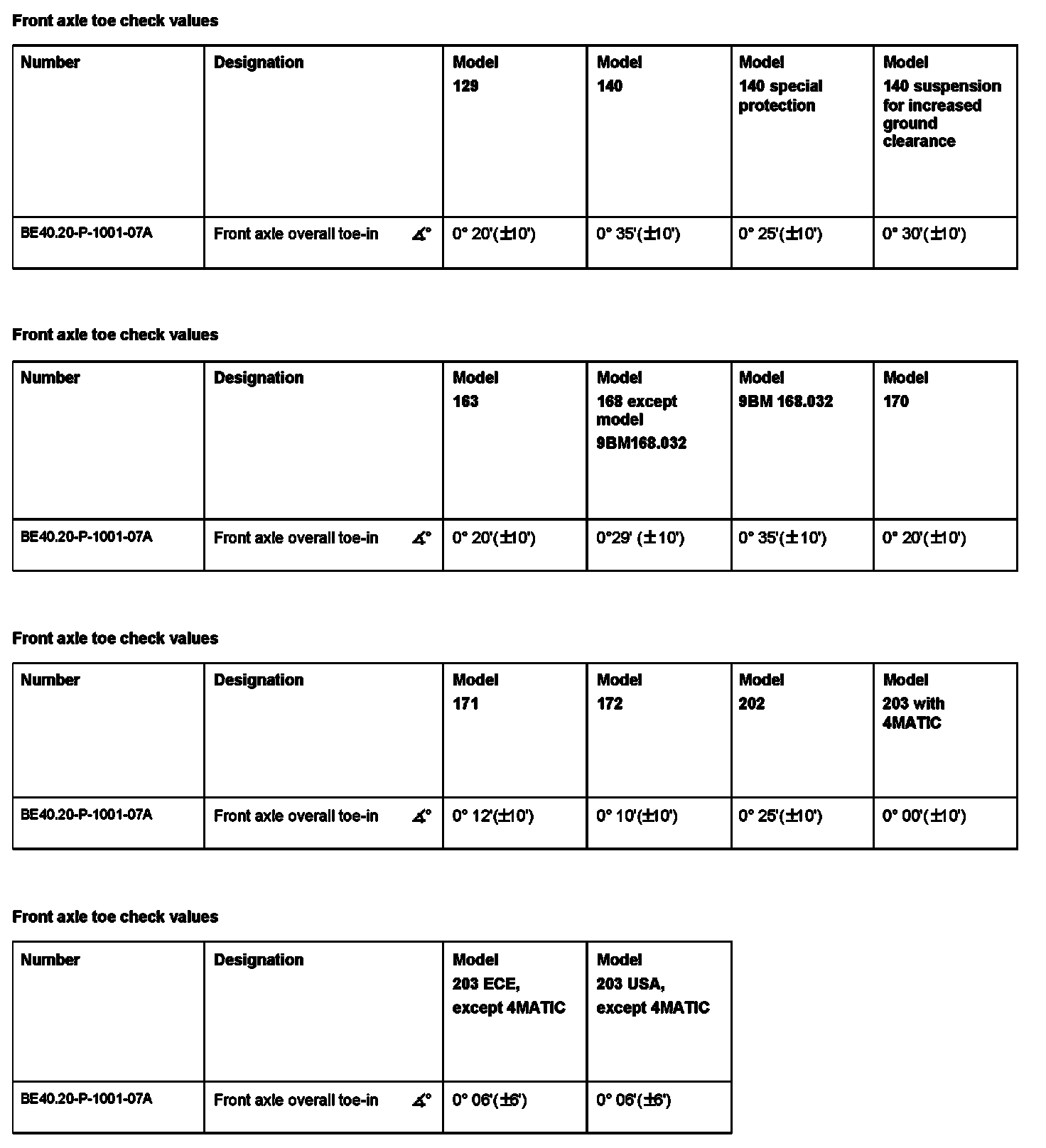

Front Axle Toe Check Values:

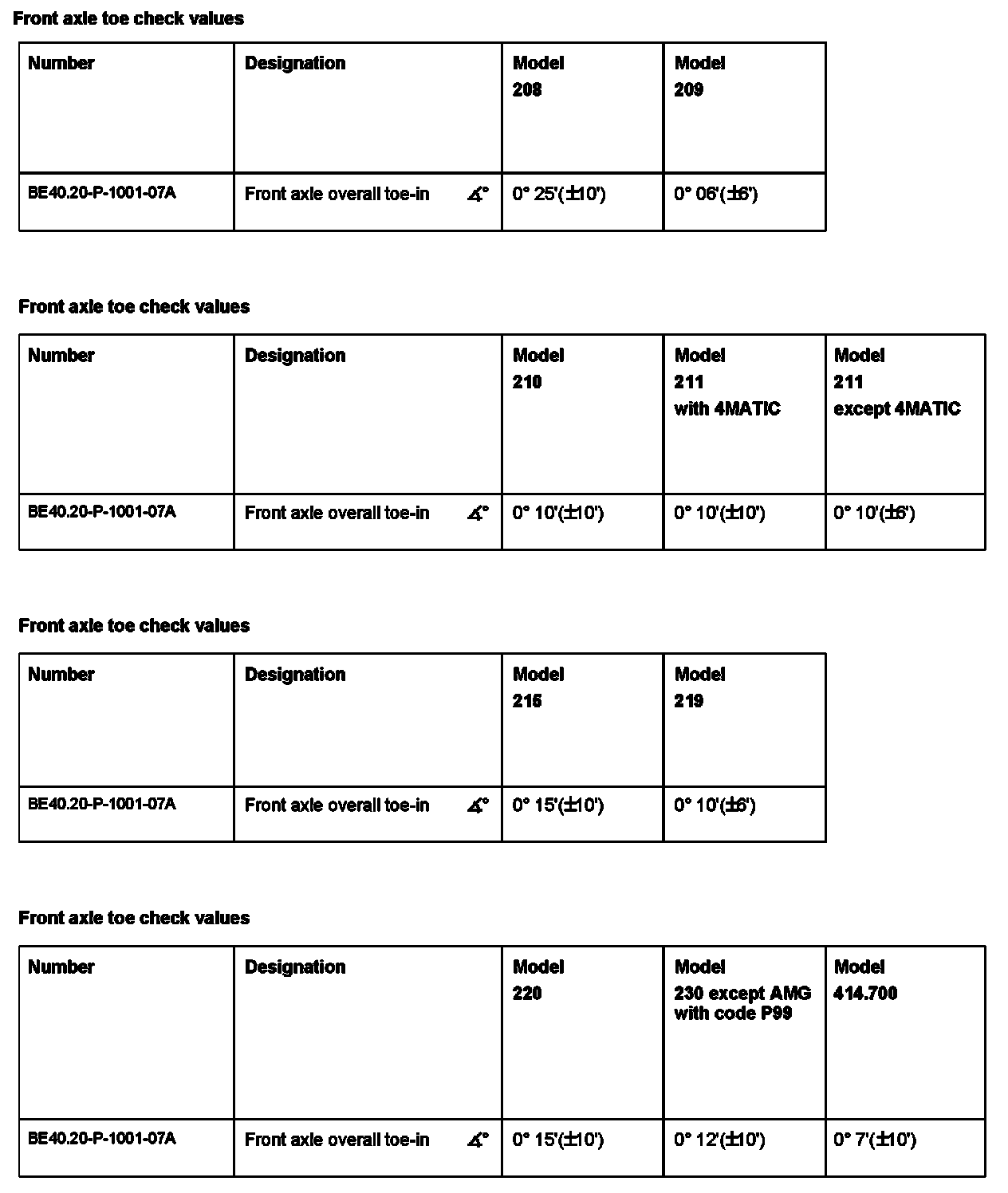

Front Axle Toe Check Values:
