Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Lubrication >> Engine Oil Dip Stick - Dip Stick Tube

Engine Oil Dip Stick - Dip Stick Tube



BE18.00-P-1000-02C Engine lubrication, general

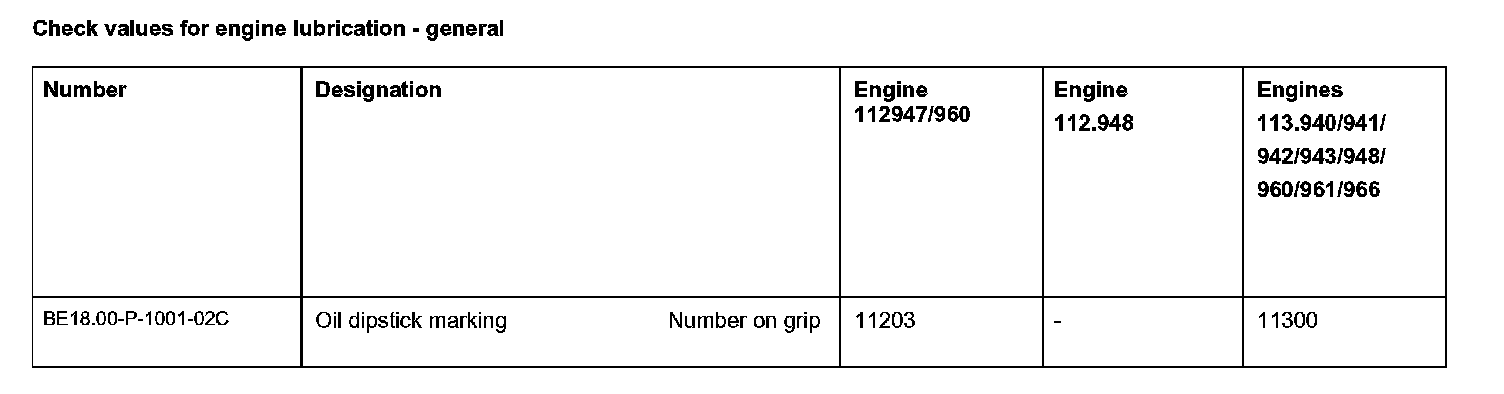

Check values for engine lubrication - general:

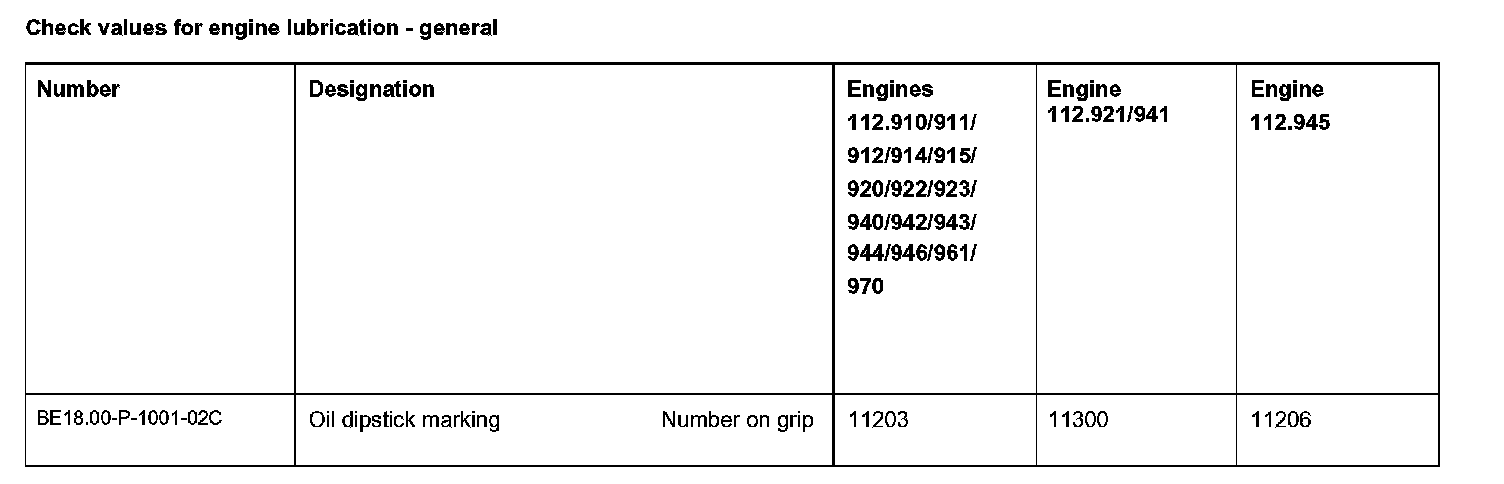

Check values for engine lubrication - general:

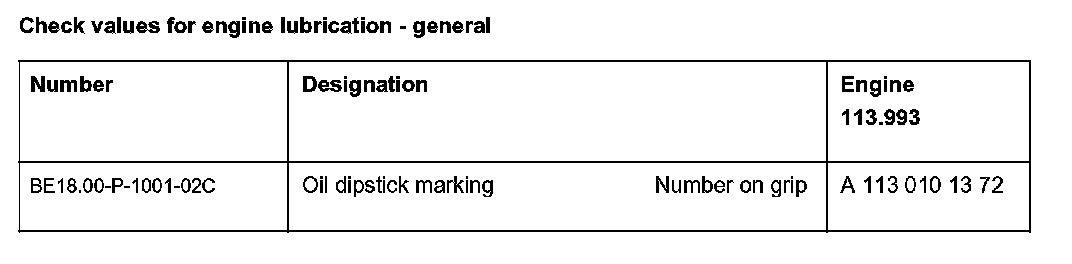

Check values for engine lubrication - general:

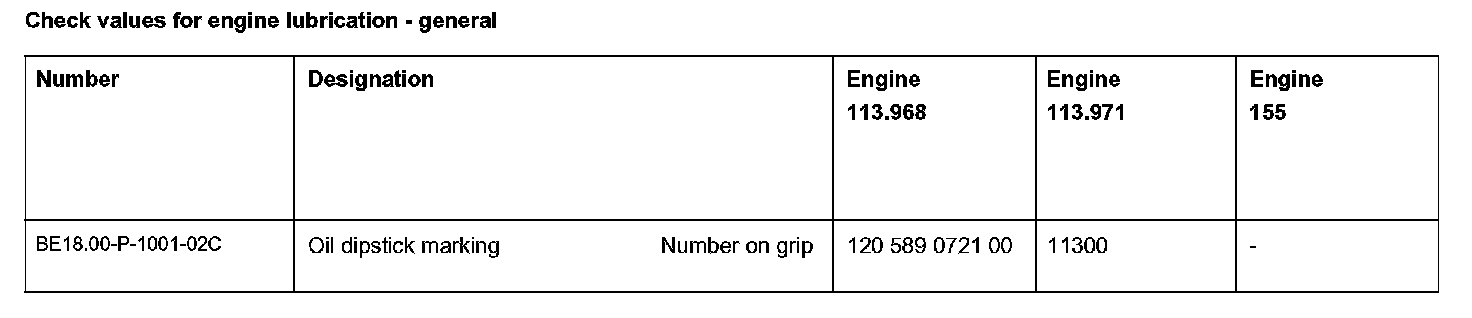

Check values for engine lubrication - general:




Check values for engine lubrication - general:
