BE35.31-P-1000-04F Test Values For Rear Axle Housing Expansion



BE35.31-P-1000-04F Test values for rear axle housing expansion
- Rear axle center assembly dia. 198

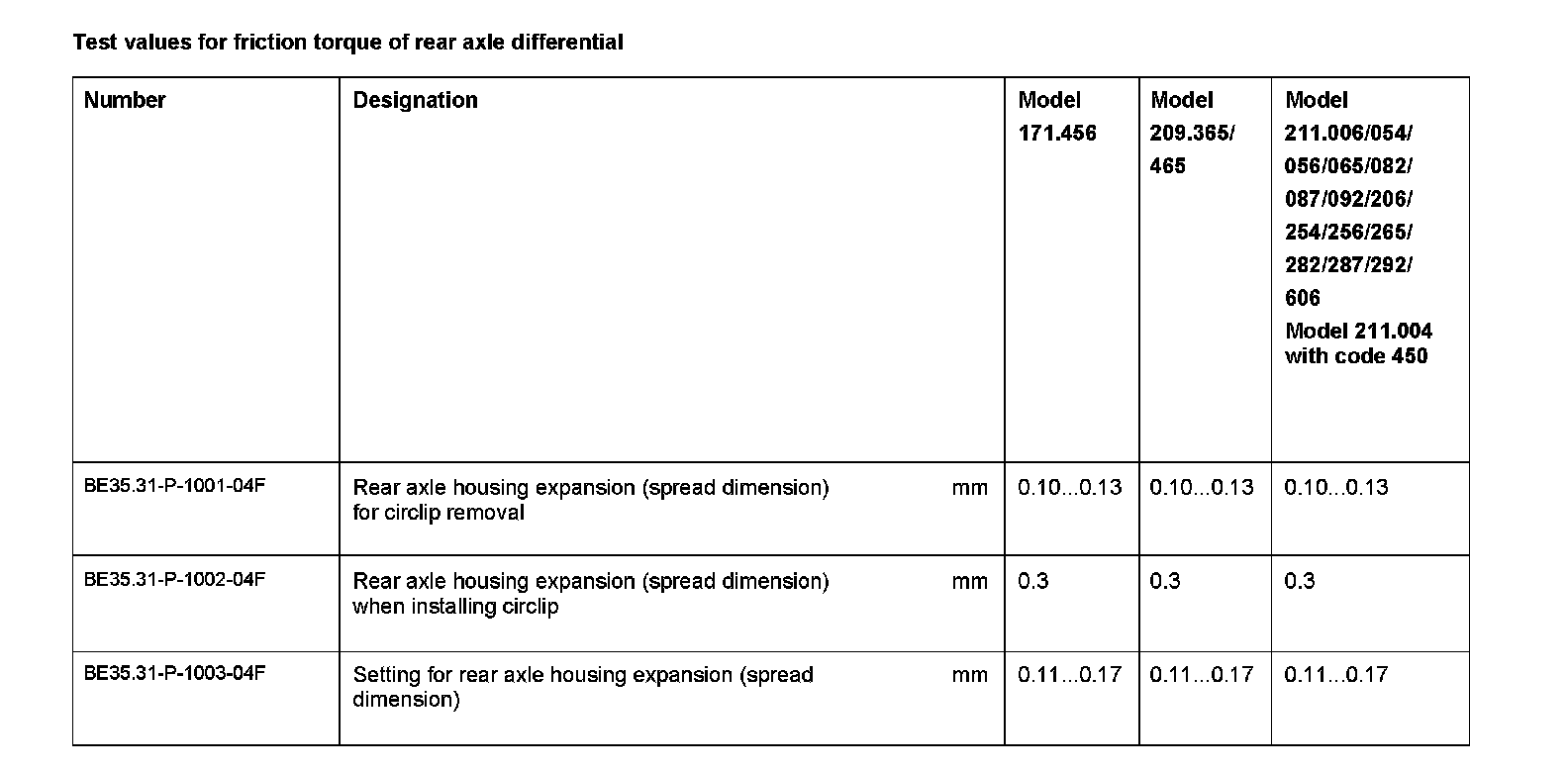

Test values for friction torque of rear axle center assembly:




Test values for friction torque of rear axle center assembly:
