Test Values For Brake Disks

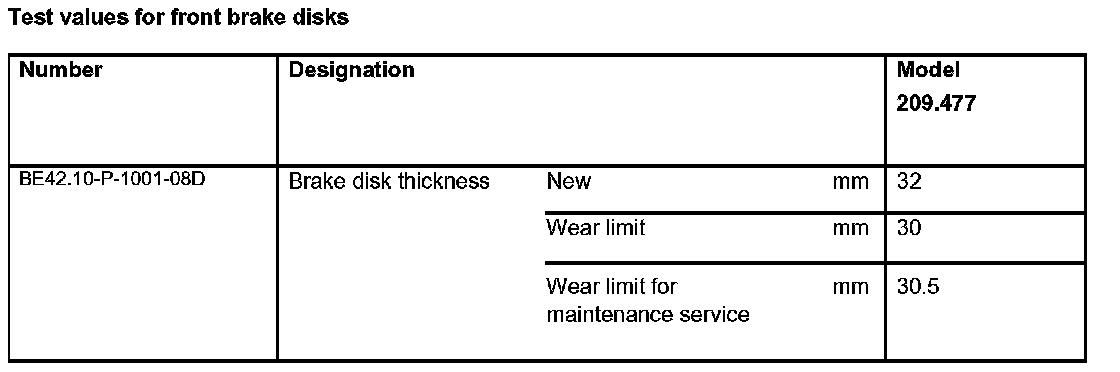

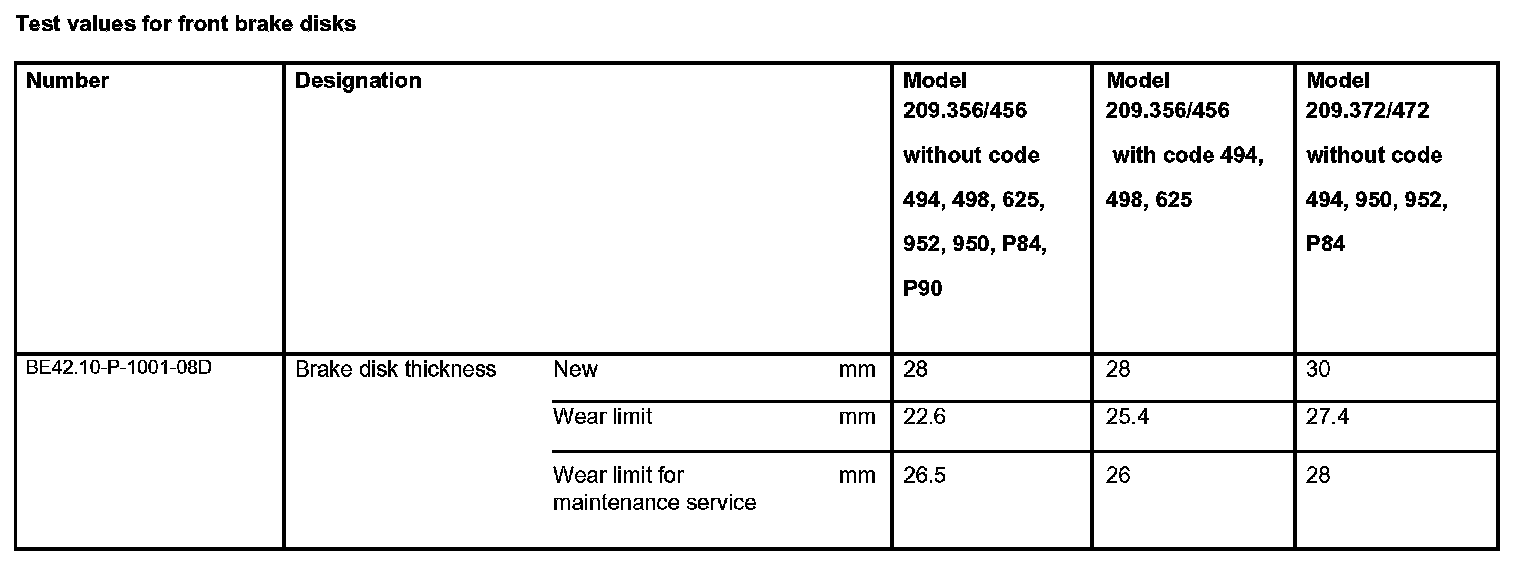

Test values for front brake disks:

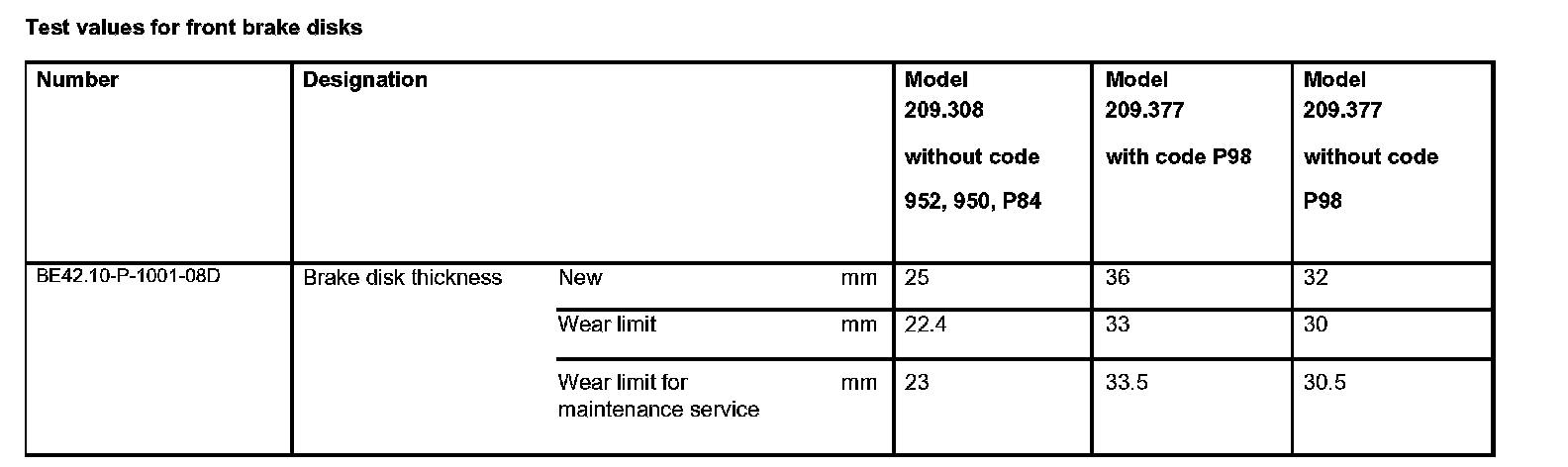

Test values for front brake disks:

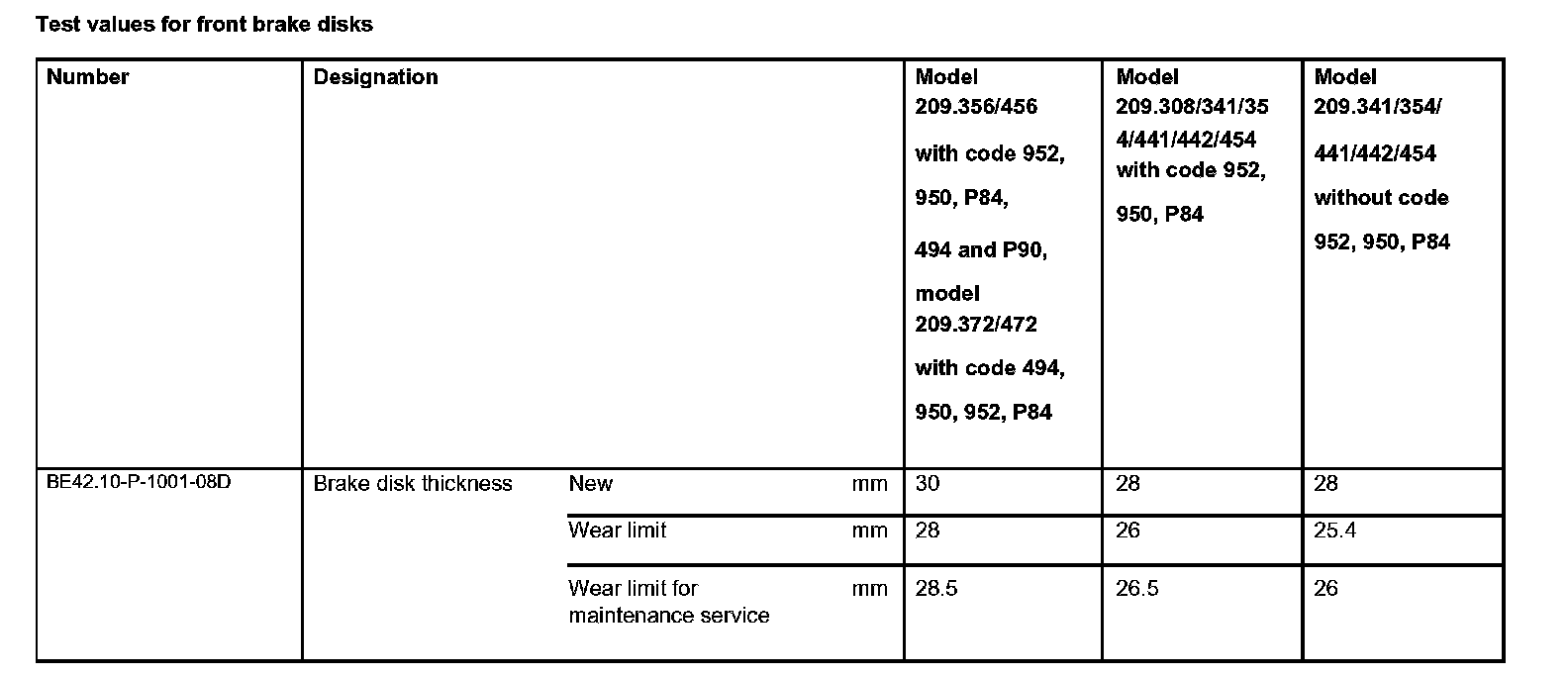

Test values for front brake disks:

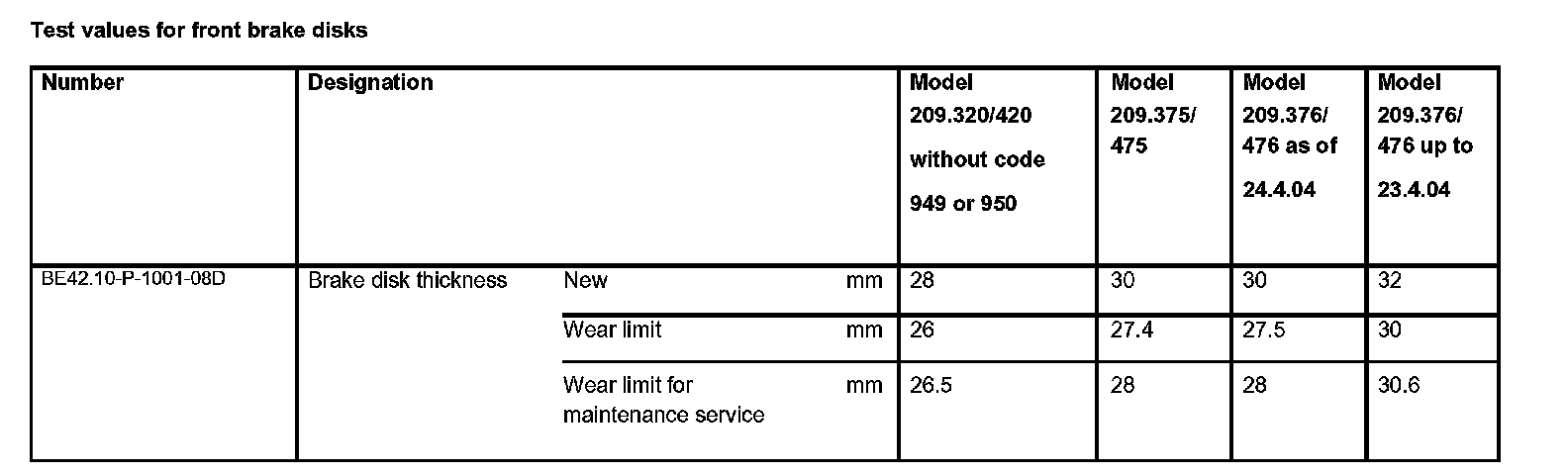

Test values for front brake disks:

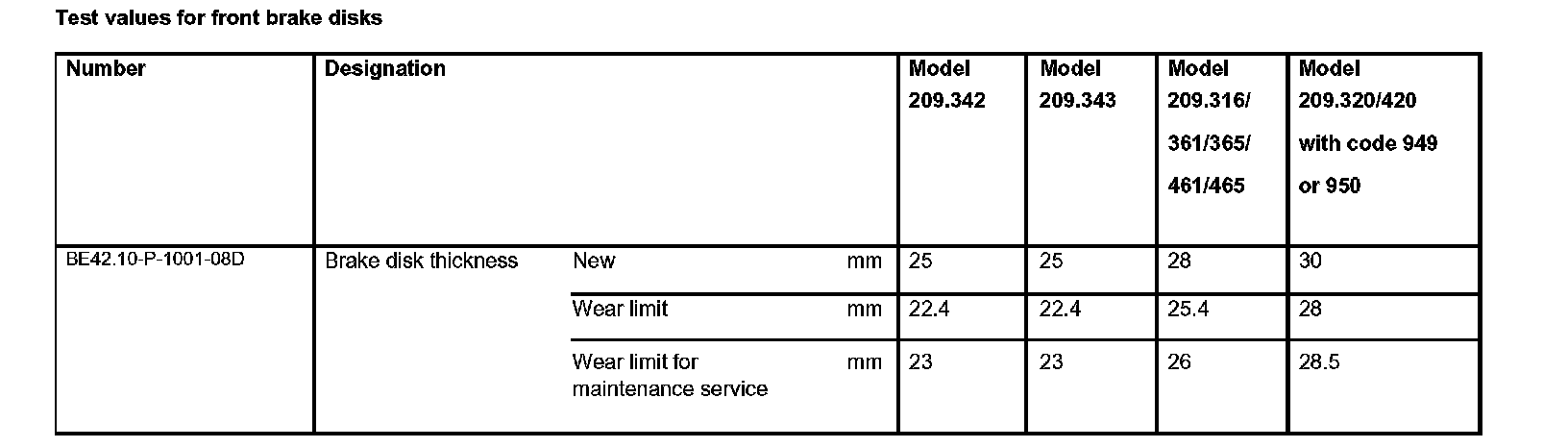

Test values for front brake disks:




Test values for front brake disks:

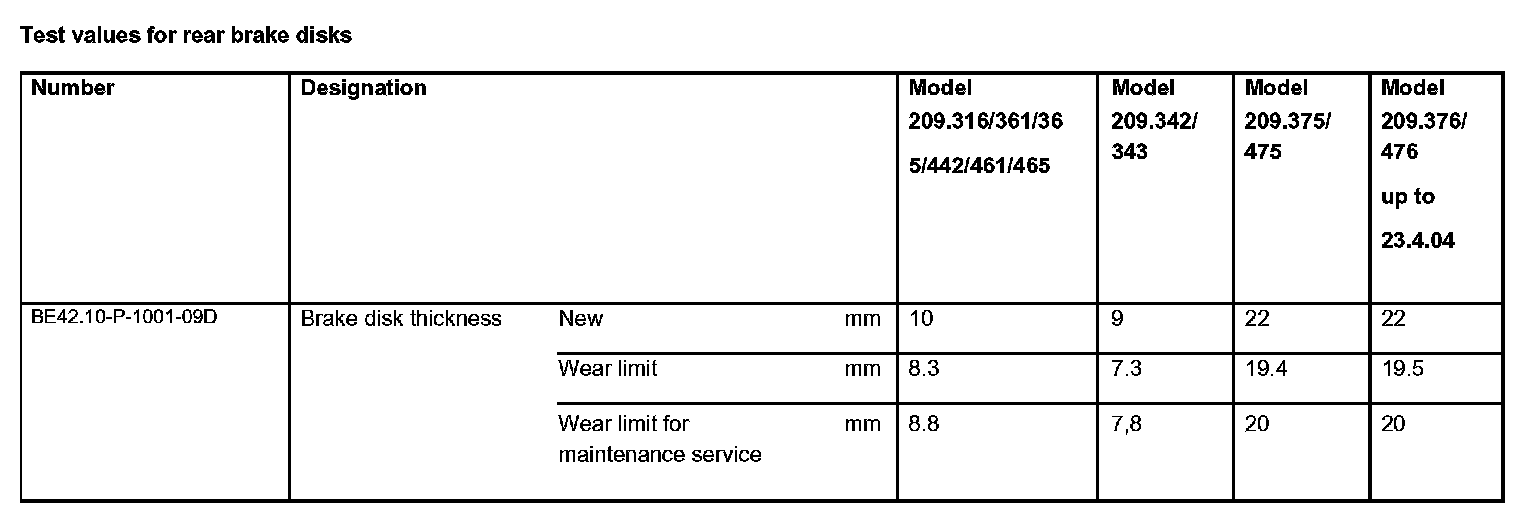

Test values for rear brake disks:

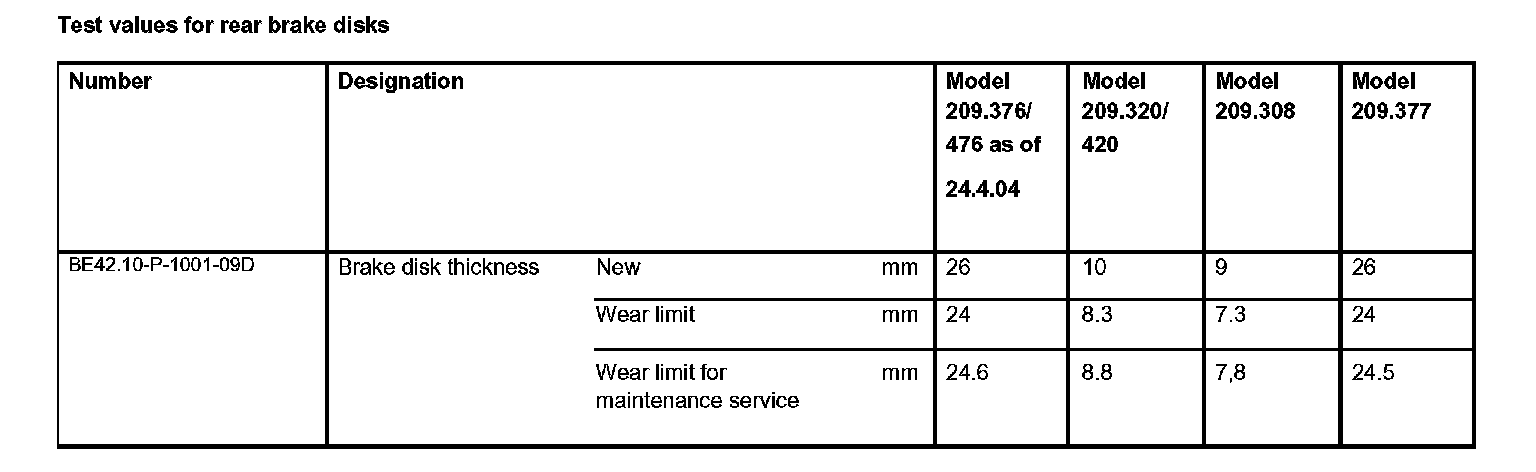

Test values for rear brake disks:

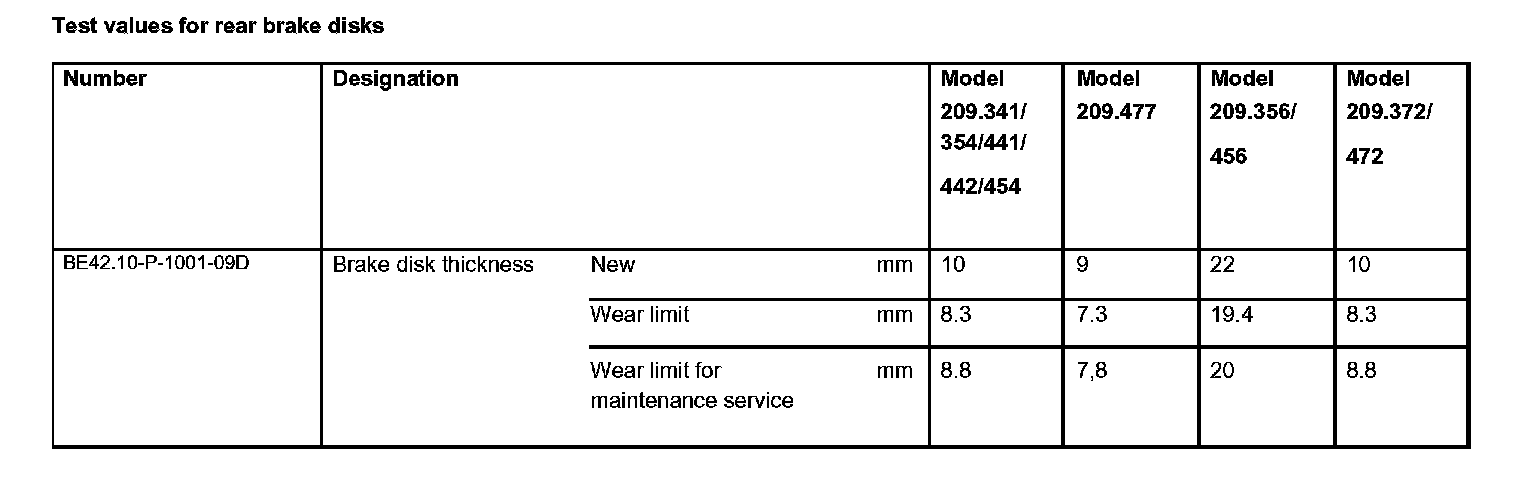

Test values for rear brake disks:
