CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Voltage Regulator
Voltage Regulator
BE15.40-P-1000-02A Governor

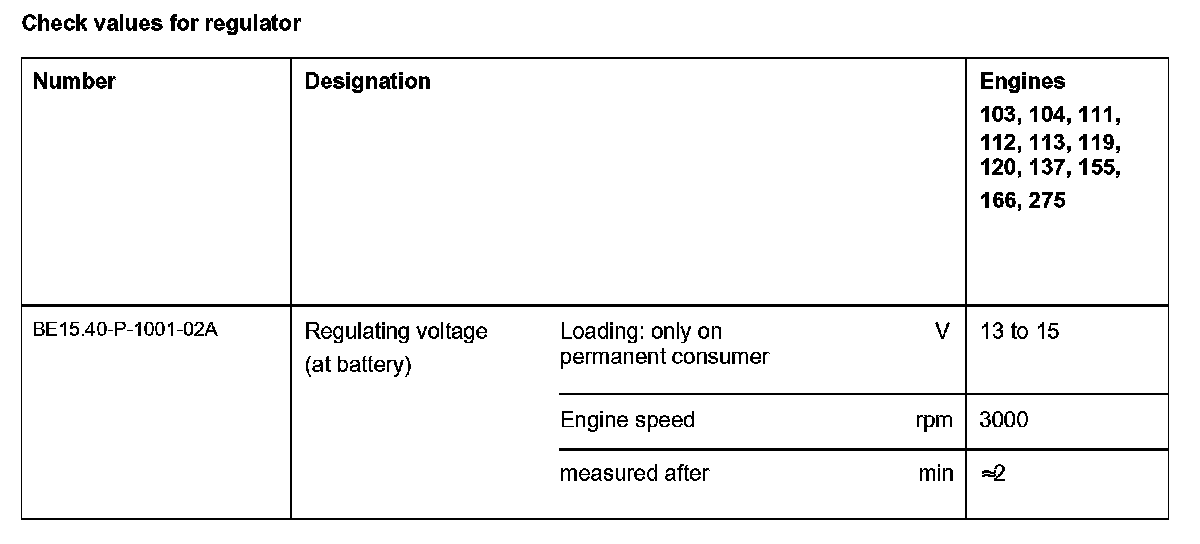

Check values for regulator:
