Steering Angle Sensor
>>
Service and Repair
Steering Angle Sensor: Service and Repair
AR46.10-P-0300PQ Remove/install
steering angle sensor

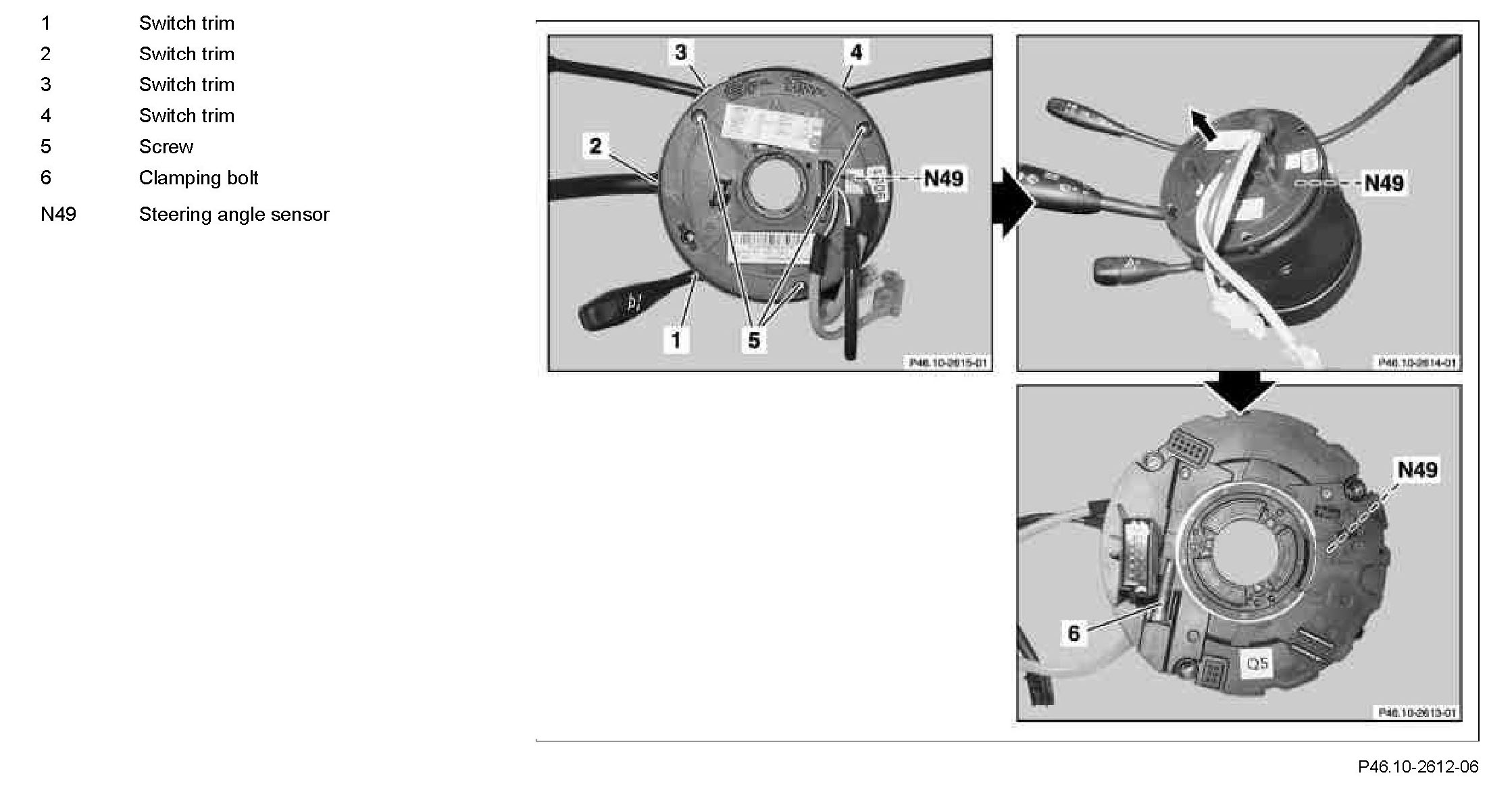

Component Identification:

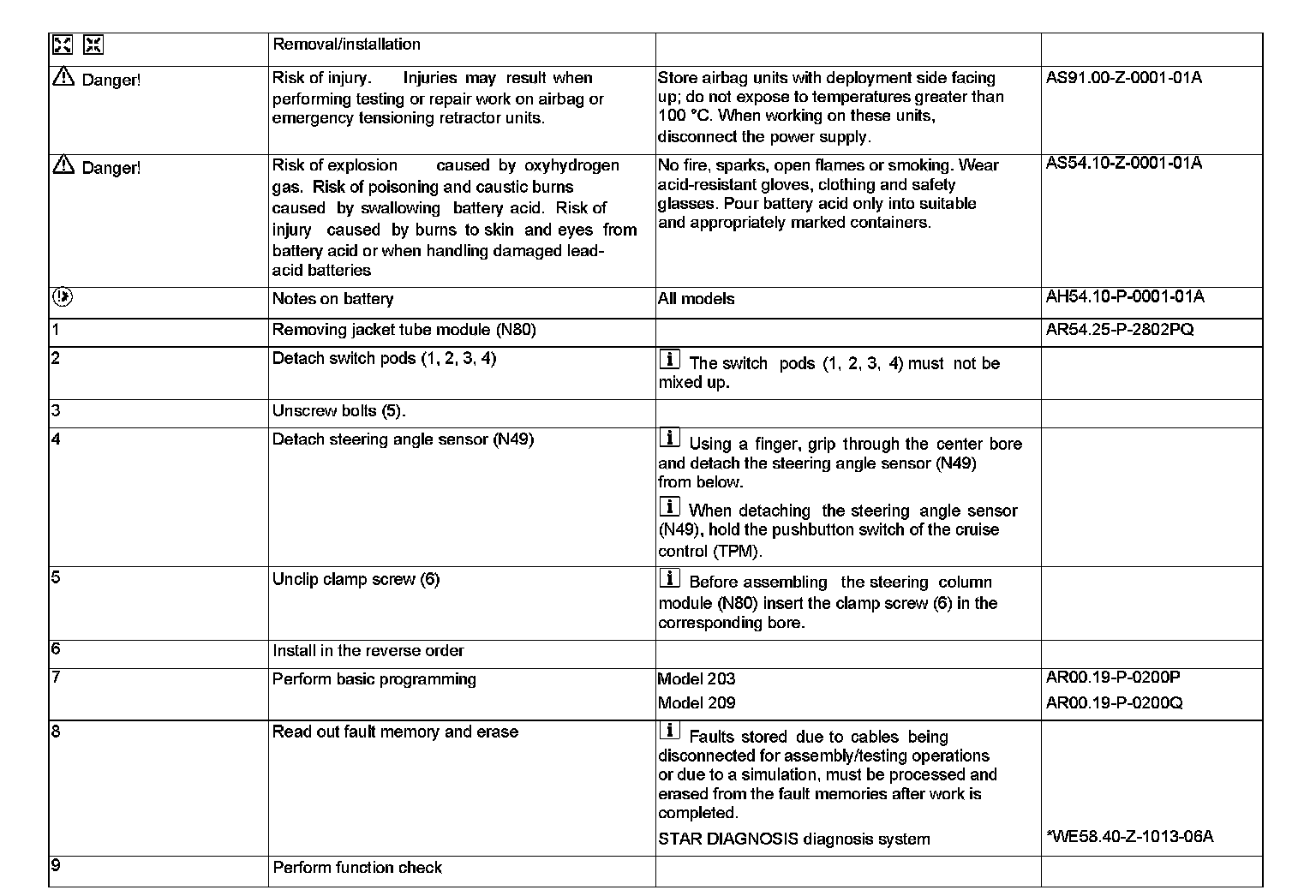

Steps 1 - 9:
Workshop Equipment/MB Testers:
