GF82.90-P-0001Q Multifunction Steering Wheel, Function

GF82.90-P-0001Q Multifunction Steering Wheel, Function
- except CODE (428a) Steering wheel shift buttons


15.03.07 The document has been updated to this date and will no longer be subject to revision.

Component Identification:

The multifunction steering wheel, used in combination with the instrument cluster (A1), serves to increase active driving safety in road traffic.
The driver can concentrate on the traffic without distraction when controlling and operating various vehicle components. The multifunction steering wheel allows the driver to operate and query the following systems:
^ Radio and navigation
^ Interior lights
^ Trip computer
^ ASSYST
^ Distronic
^ Telematics
^ Telephone
^ Tire pressure loss warning

Function requirements:
^ Circuit 15 ON

Only systems and functions with which the vehicle is equipped are displayed. If a system is not installed, it is "skipped" when the system selection button (S110s3) on the left multifunction steering wheel button group (S110) is pressed.

The system selected by the user is displayed on the multifunction display (A1p13) in the instrument cluster (A1). In addition, the fanfare horns (H2) can be actuated by means of the impact plate of the multifunction steering wheel.

Only the trip computer has a last-mode function. When the user switches to this system, the basic display is not shown; instead, the system displays the submenu that was last selected.

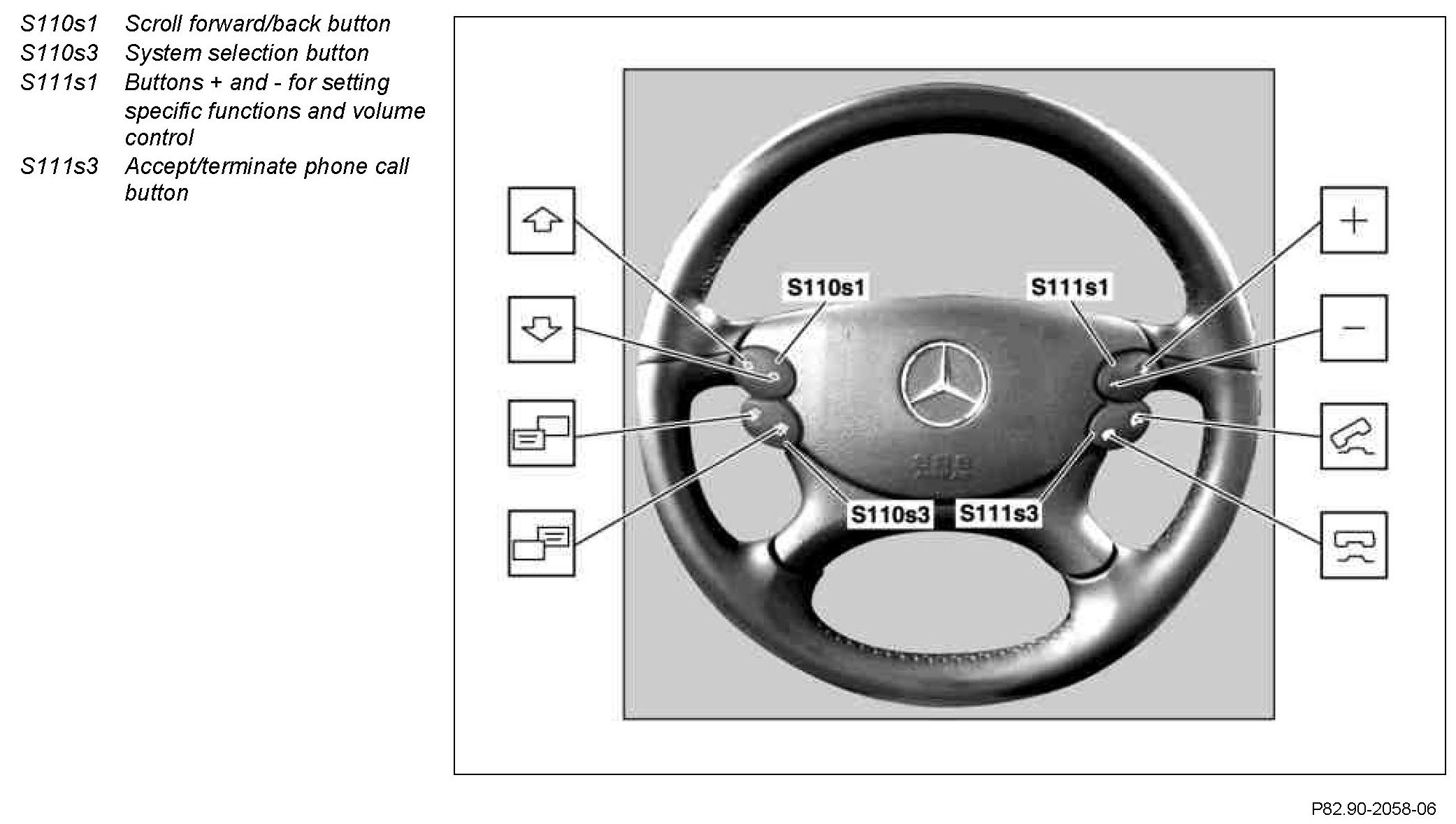

Left multifunction steering wheel button group (S110)
In system selection button (S110s3) and Scroll forward and backward buttons (S110s1) are included in the left multifunction steering wheel button group (S110).
Each of the systems can be called up with the system selection button (S110s3). This button is used to scroll forward and backward in the systems.
Use the Scroll forward/back button (S110s1) to call up additional submenus within a system.

Right multifunction steering wheel button group (S111)
The right multifunction steering wheel button group (S111) contains the Accept/terminate phone call button (S111s3) and the button + and -, setting of specific functions and volume control (S111s1). A telephone call can be accepted or terminated with the Accept/ terminate phone call button (S111s3).
The button + and -, setting of specific functions and volume control (S111s1), is used to adjust the volume of the currently active system.
