Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> AR91.40-P-0630Q Remove/Install Seat Belt With Emergency Tensioning Retractor

AR91.40-P-0630Q Remove/Install Seat Belt With Emergency Tensioning Retractor



AR91.40-P-0630Q Remove/Install Seat Belt With Emergency Tensioning Retractor

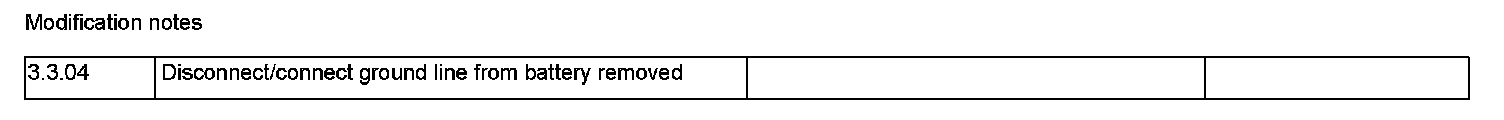

Modification Notes:

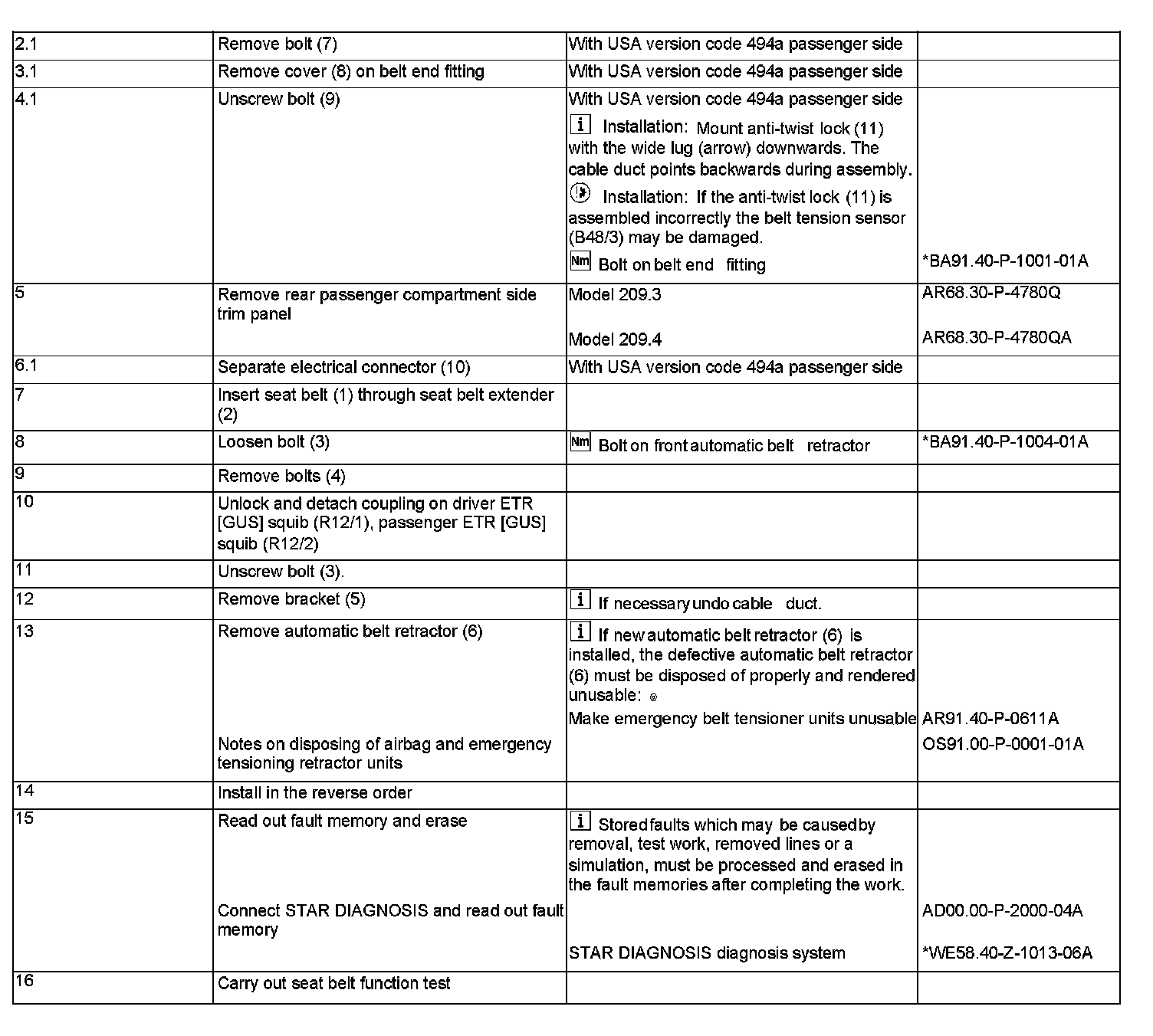

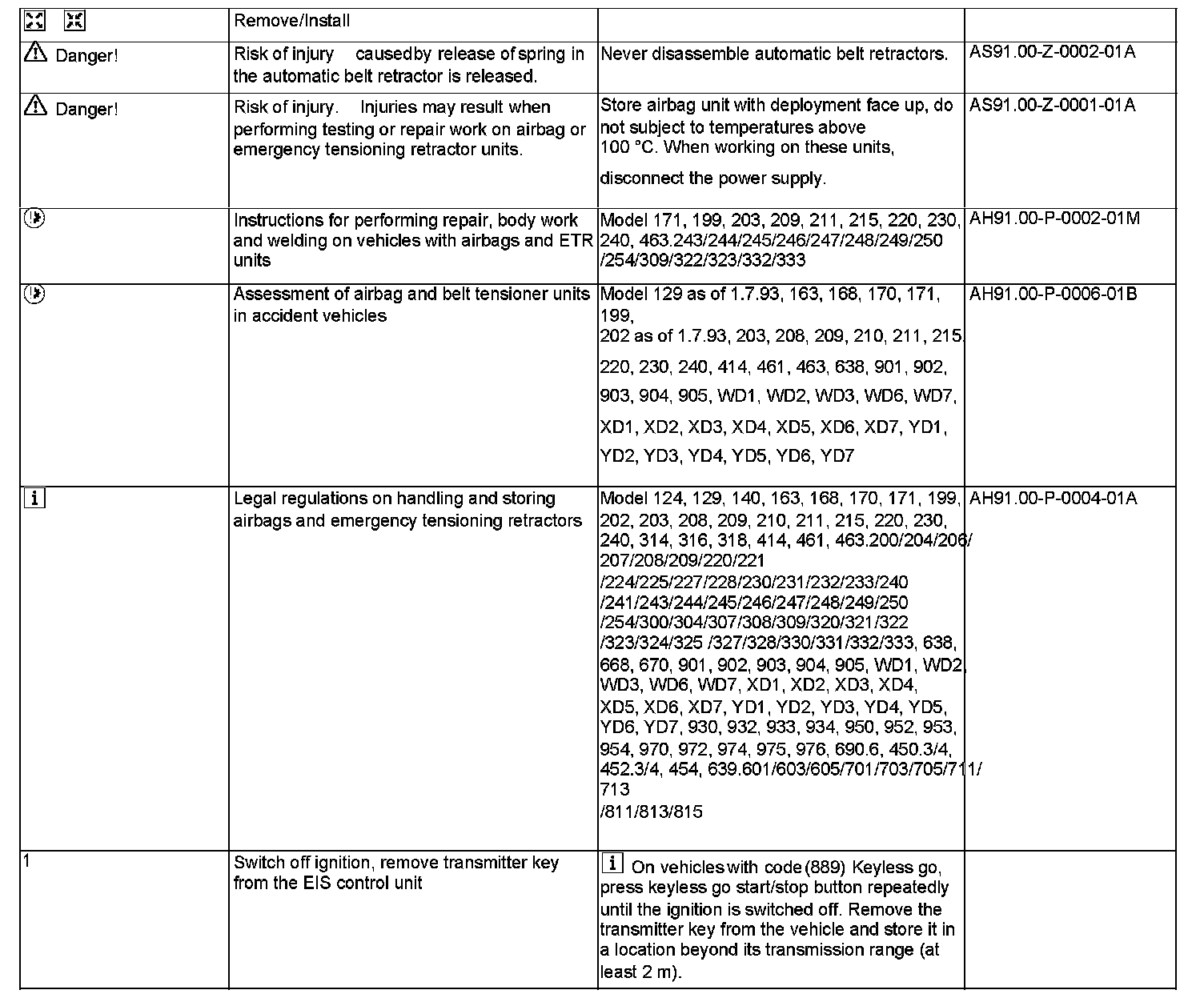

Part 1:






Part 2:

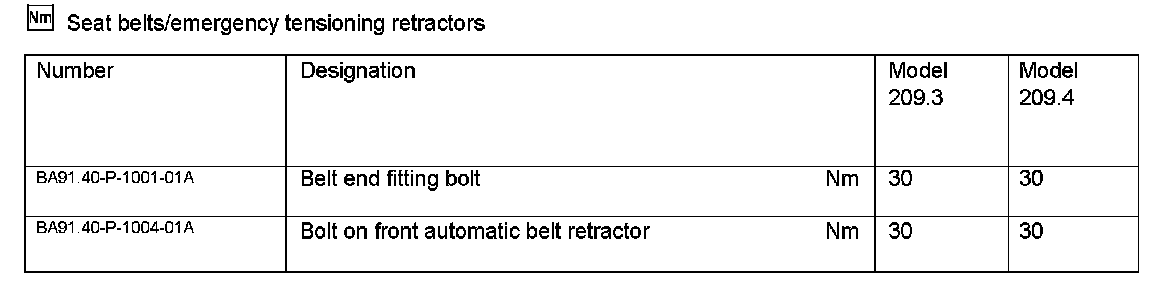

Seat Belts/Emergency Tensioning Retractors:
