FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2005
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt Tensioner
>>
Description and Operation
>>

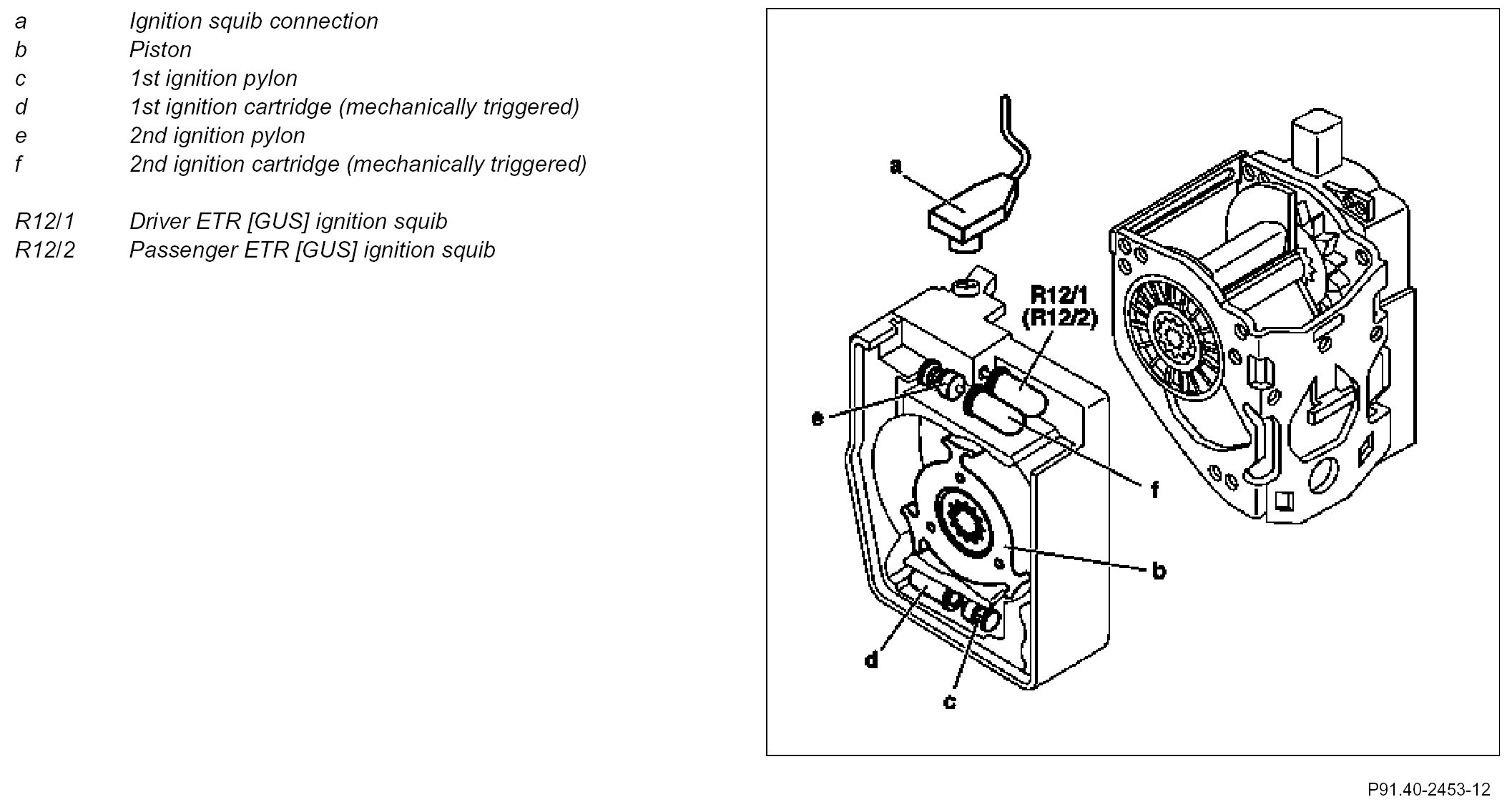

GF91.40-P-4000-02Q Front Emergency Belt Tensioner - Design
GF91.40-P-4000-02Q Front Emergency Belt Tensioner - Design
GF91.40-P-4000-02Q Front Emergency Belt Tensioner - Design
Component Identification:
