Seat Belt Guide Track: Service and Repair

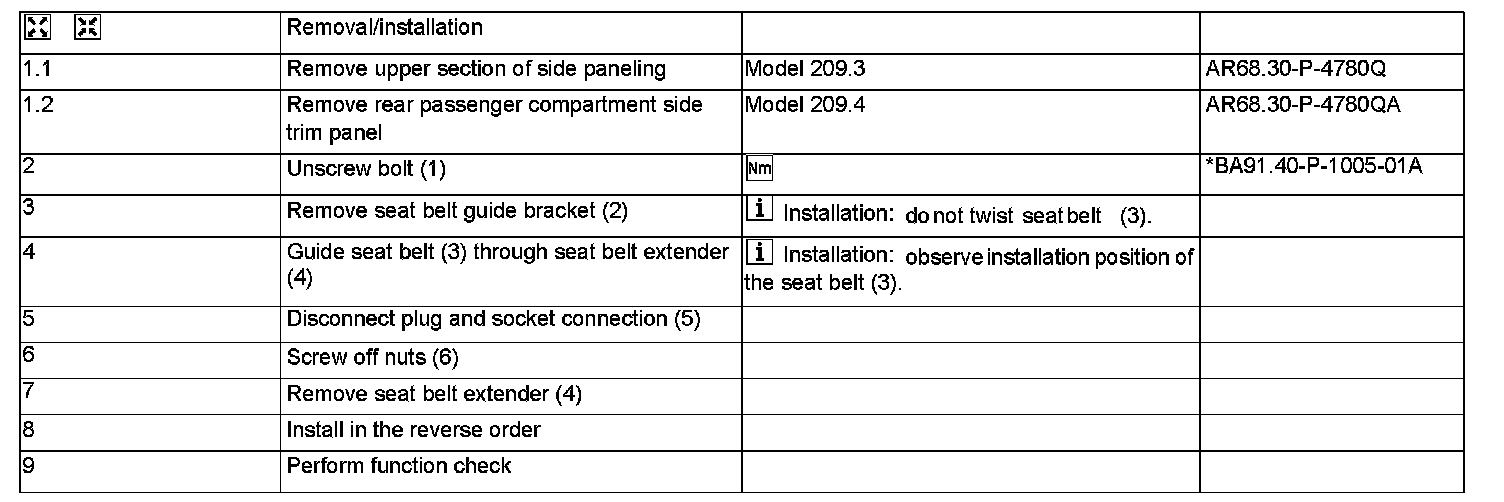

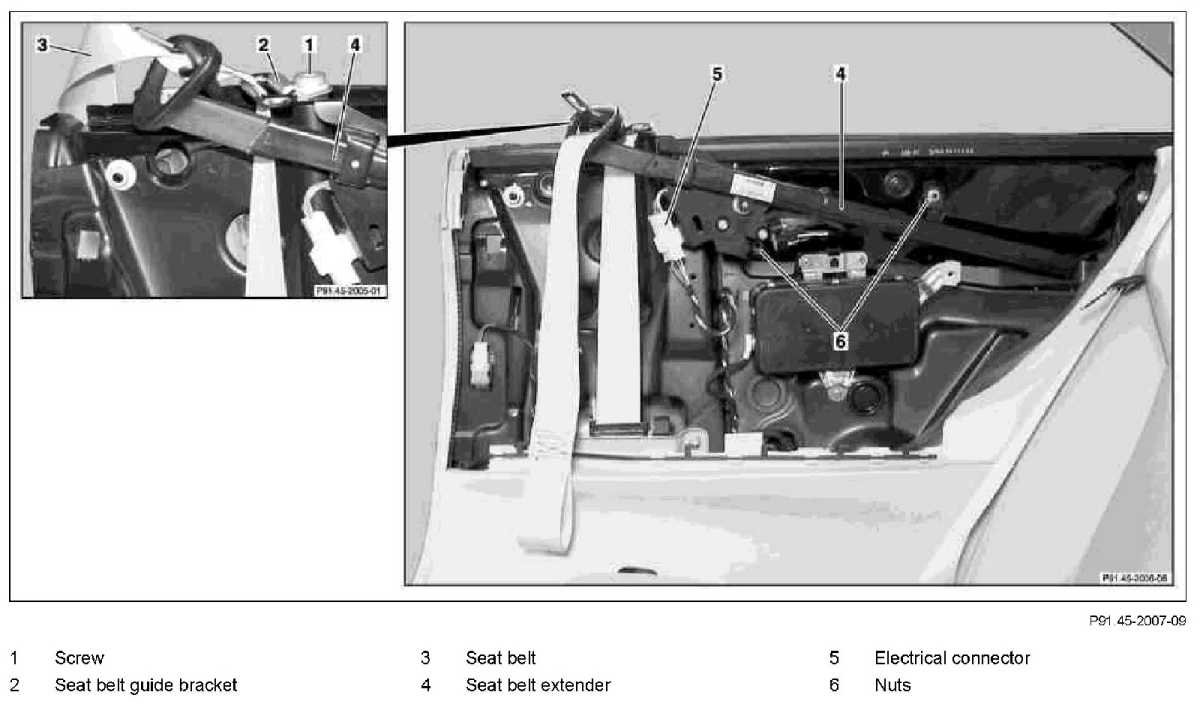

AR91.45-P-1000Q Remove/Install Seat Belt Extender

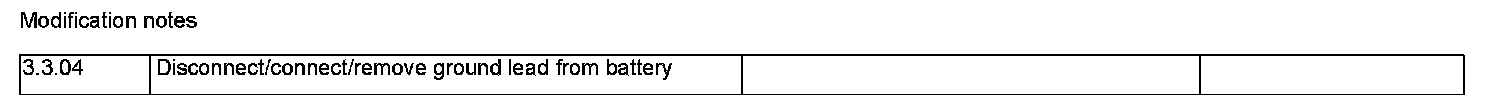

Modification Notes:

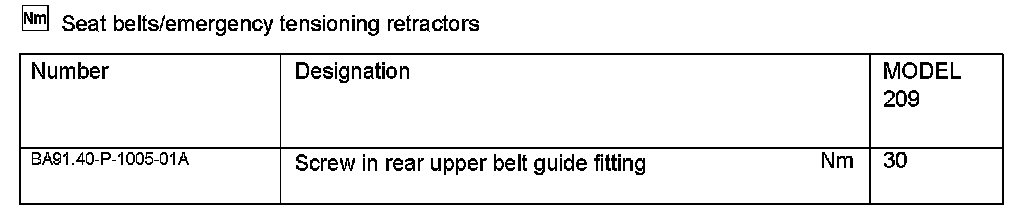

Seat Belts/Emergency Tensioning Retractors:
