Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Buckle >> Service and Repair >> AR91.40-P-1516Q Remove/Install Rear Seat Belt Buckle

AR91.40-P-1516Q Remove/Install Rear Seat Belt Buckle



AR91.40-P-1516Q Remove/Install Rear Seat Belt Buckle
- except CODE (P98) Black Series

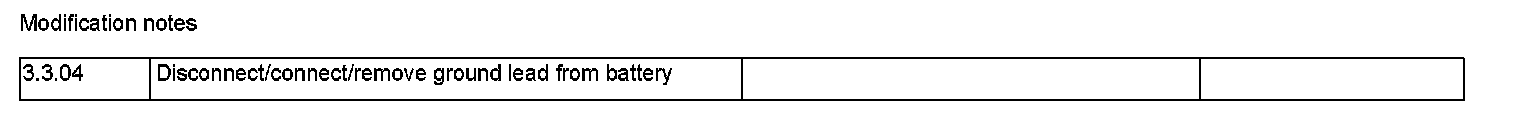

Modification Notes:

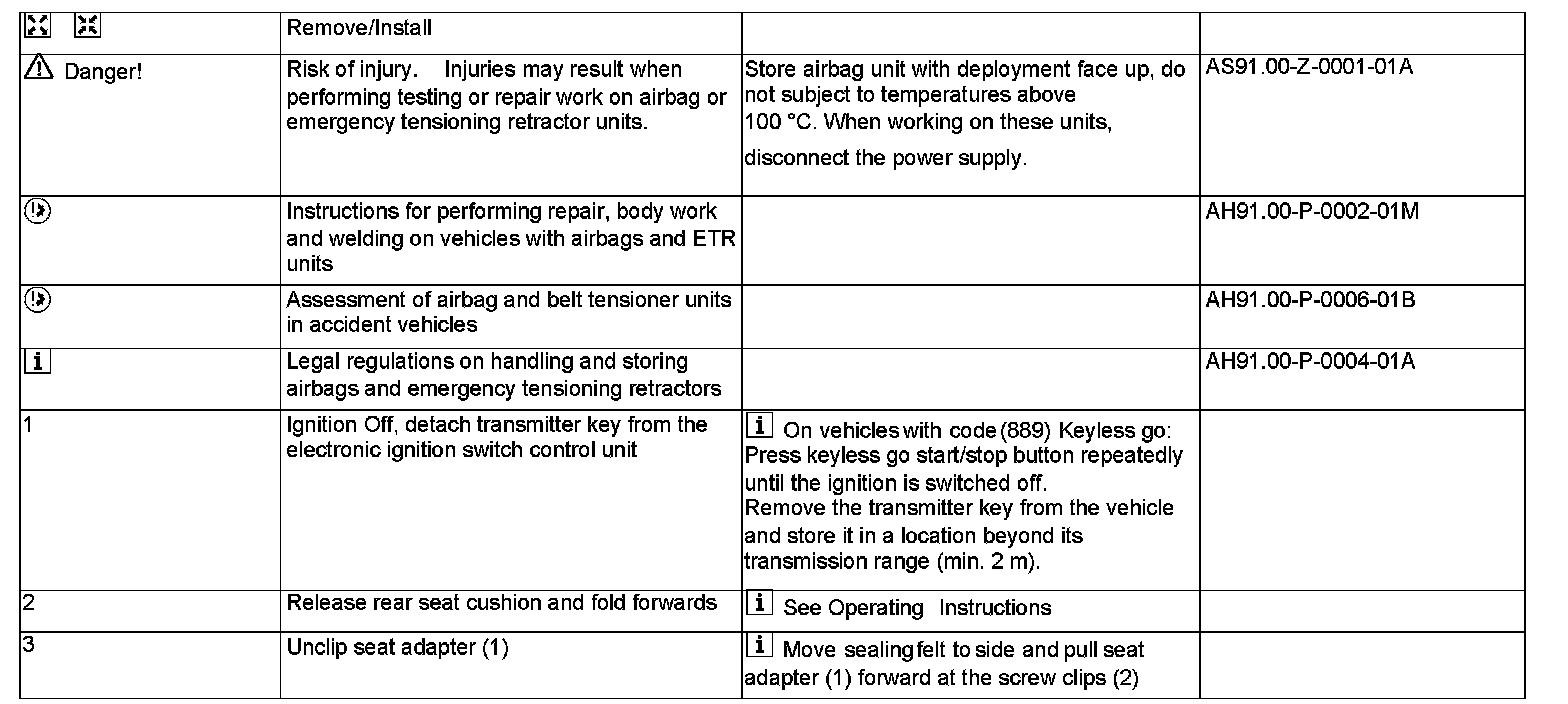

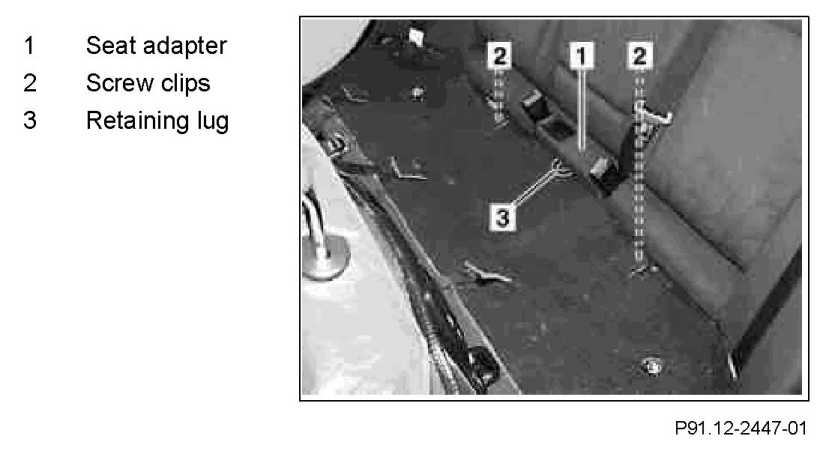

Part 1:

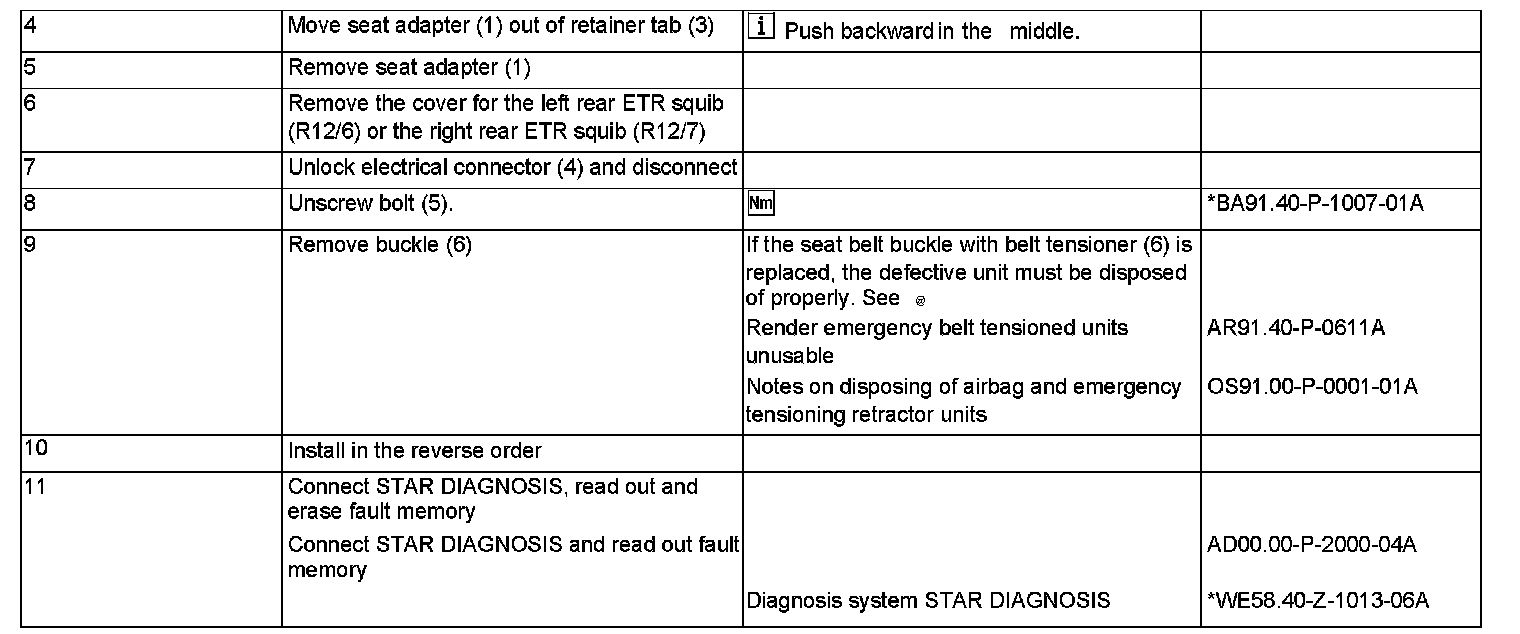

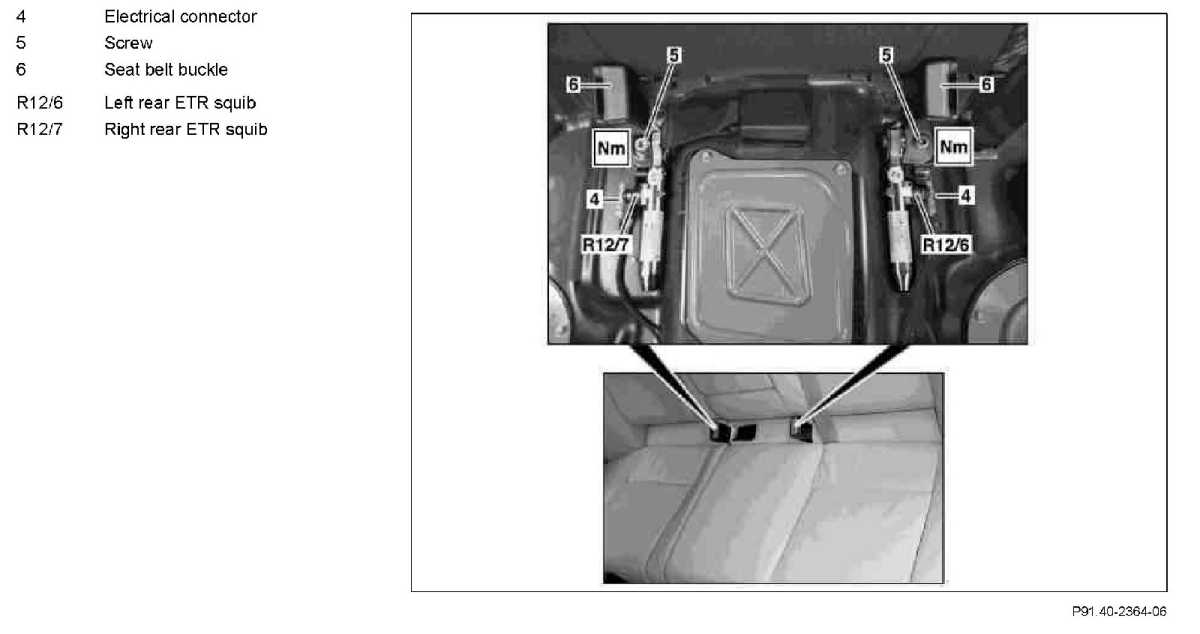

Part 2:

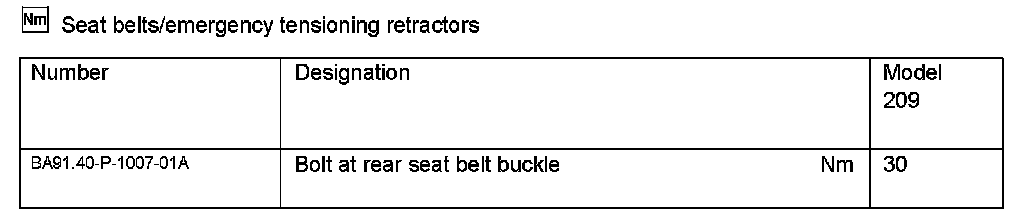

Seat Belts/Emergency Tensioning Retractors:
