AR46.10-P-0200PQ Remove/Install Clock Spring Contact
AR46.10-P-0200PQ Remove/Install Clock Spring Contact
AR46.10-P-0200PQ Remove/install clock spring contact

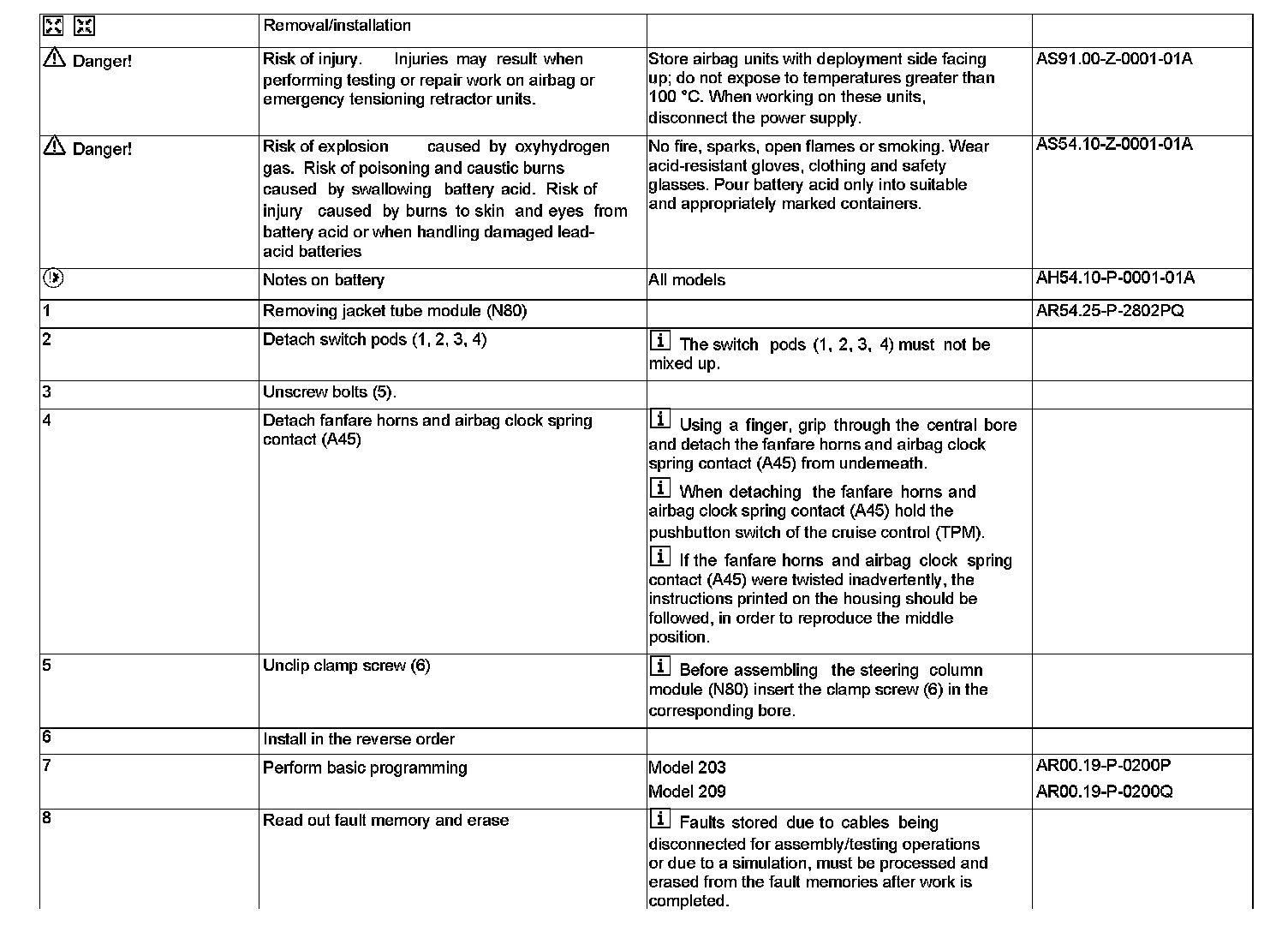

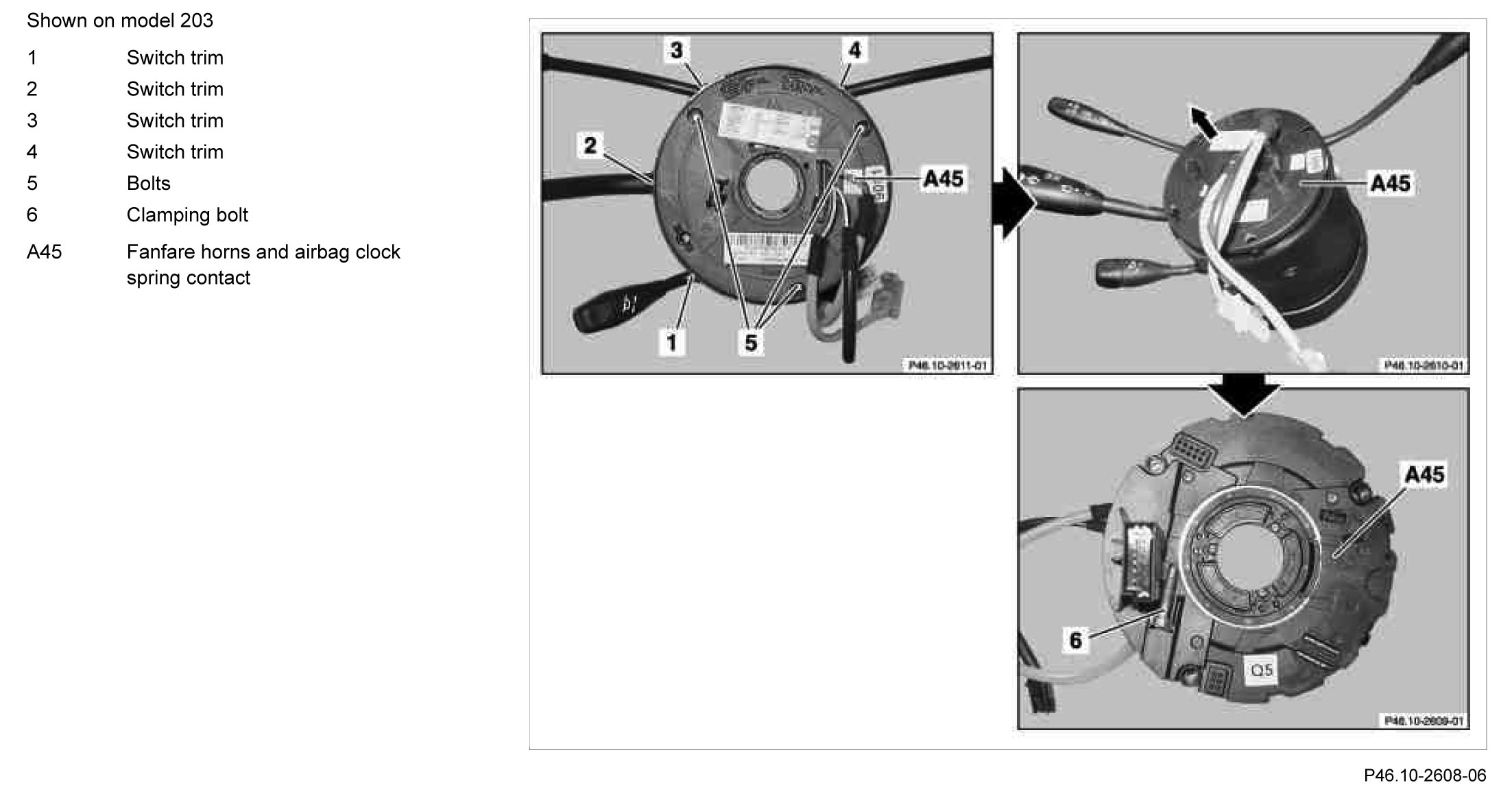

Steps 1 - 8:

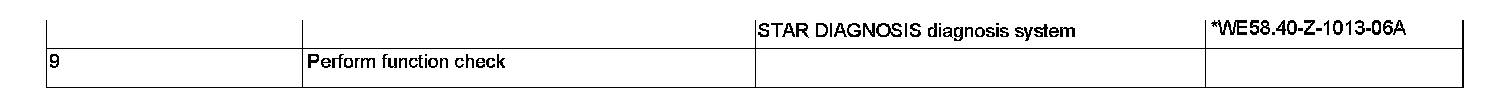

Step 9:

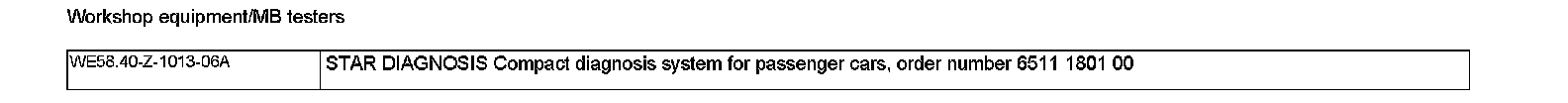

Workshop Equipment/MB Testers:
