FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> AR91.60-P-0694Q Remove/Install Sidebag Unit In The Rear

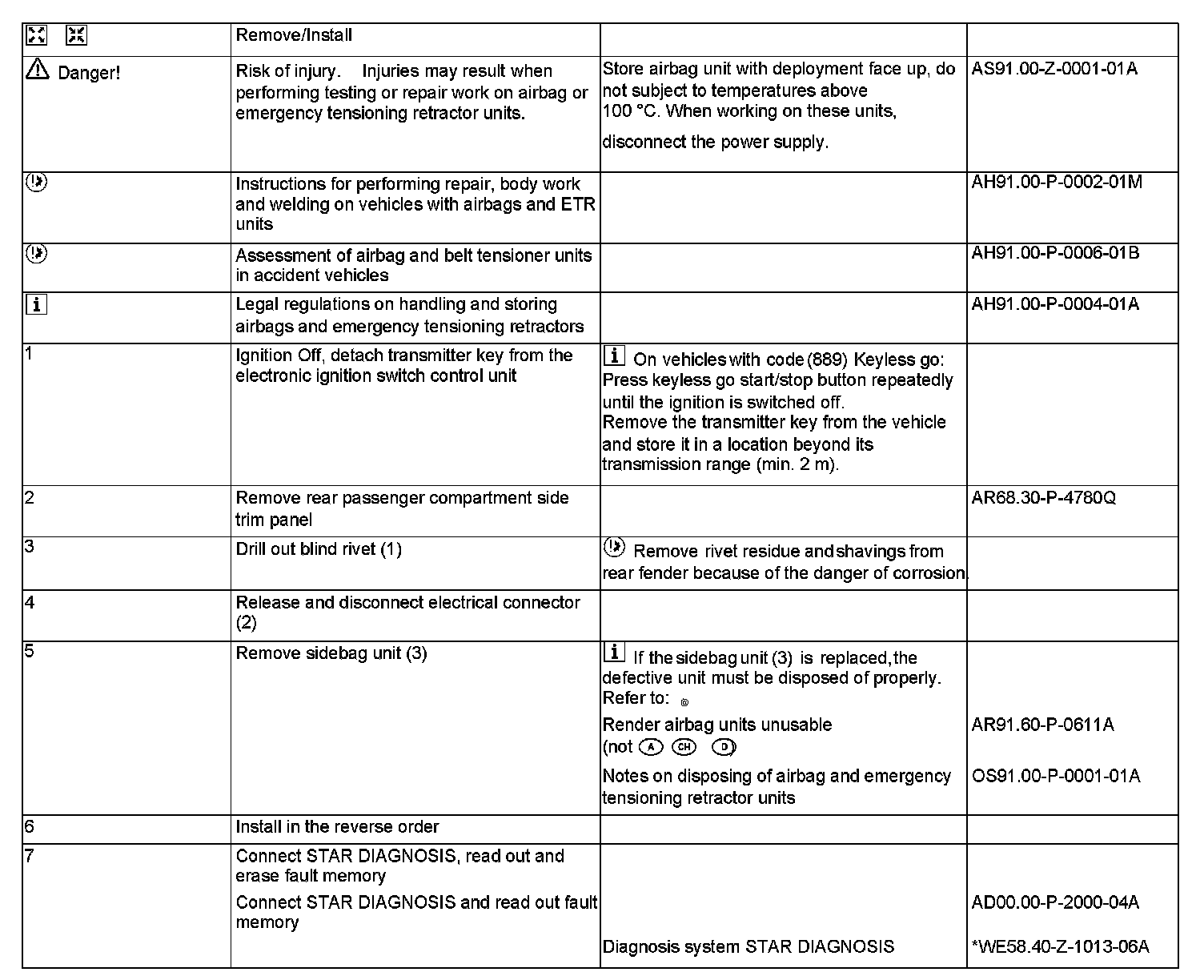

AR91.60-P-0694Q Remove/Install Sidebag Unit In The Rear



AR91.60-P-0694Q Remove/Install Sidebag Unit In The Rear

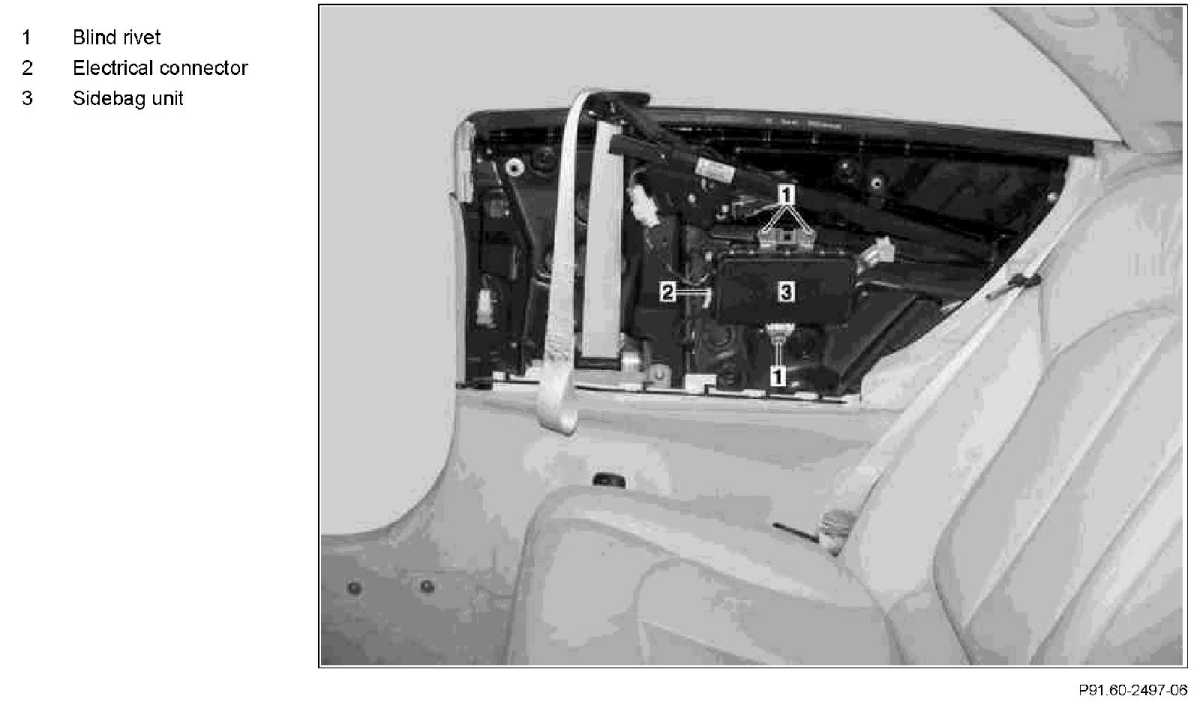

- with CODE (293) Left and right rear sidebag

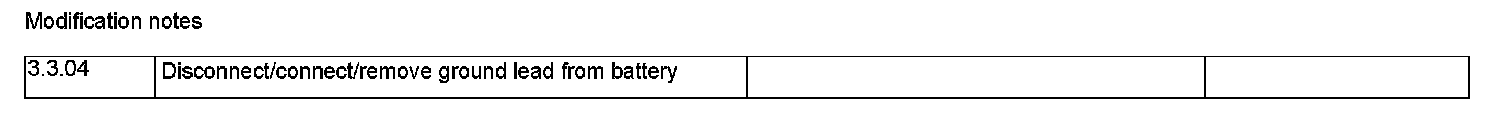

Modification Notes


Modification Notes:









pro multis Credits:Operation CHARM About Operation CHARM
