Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> AR91.60-P-0693Q Remove/Install Window Bag

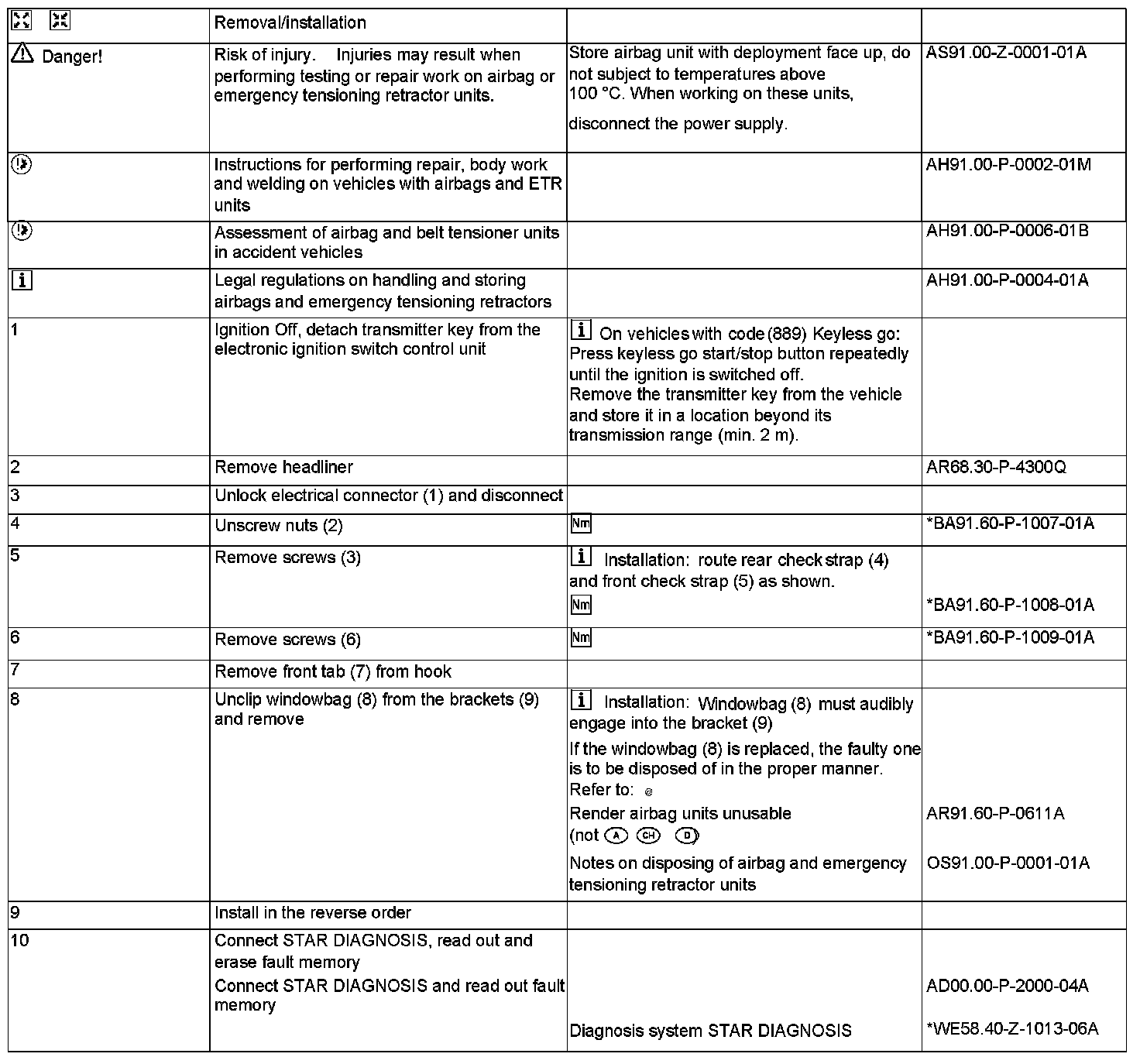

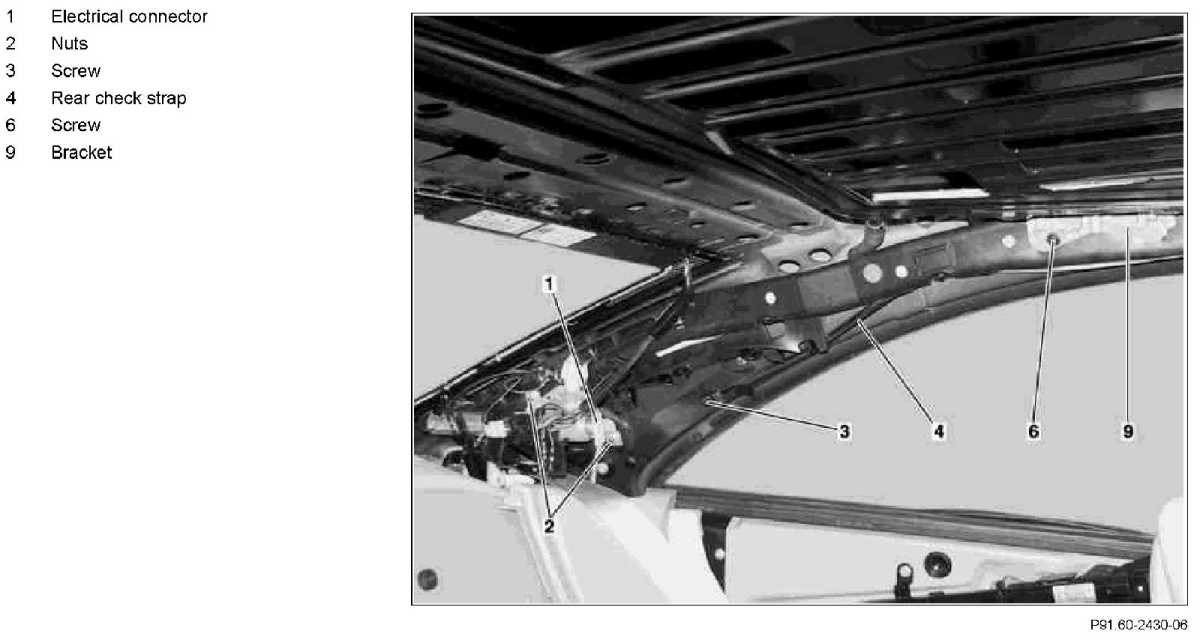

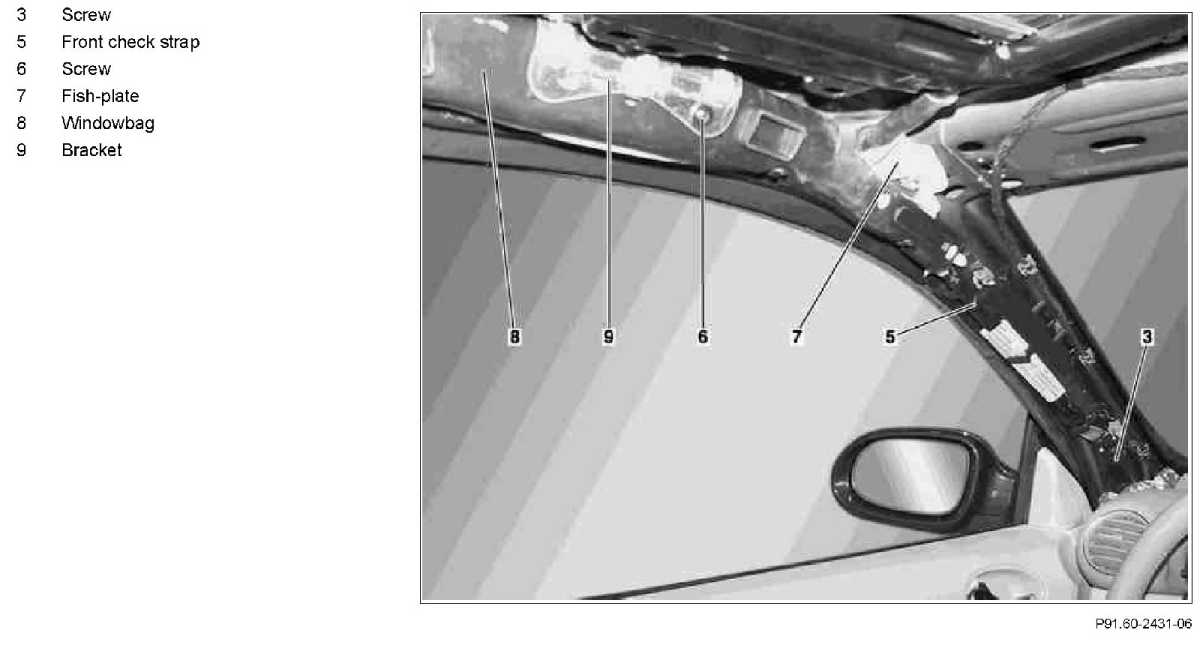

AR91.60-P-0693Q Remove/Install Window Bag



AR91.60-P-0693Q Remove/Install Window Bag

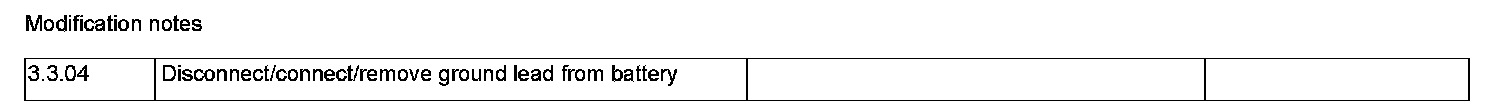

Modification Notes:











Airbag:
