Navigation Module: Service and Repair

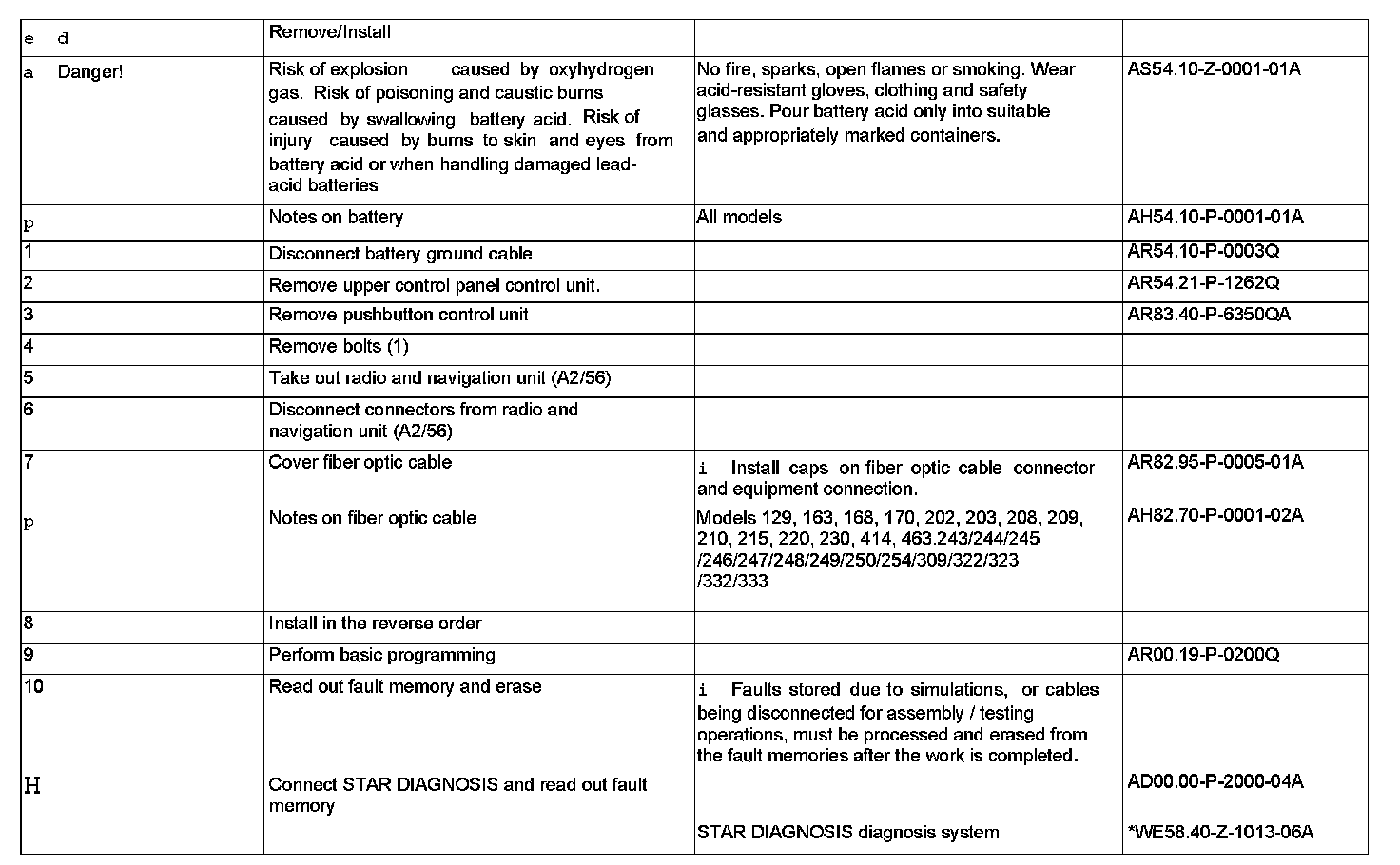

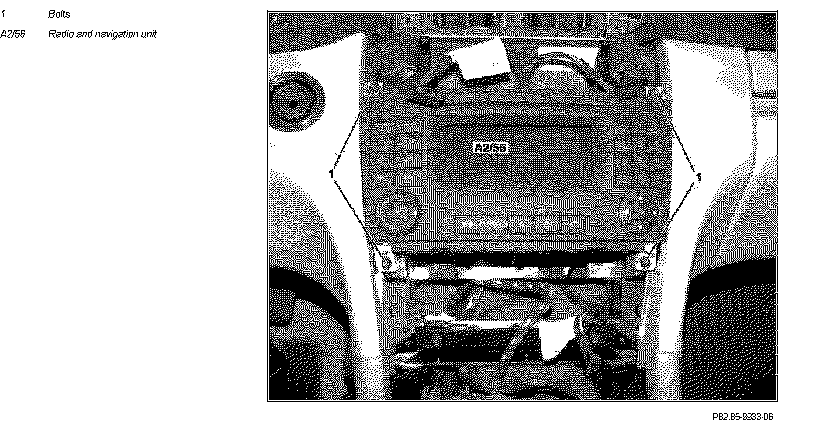

AR82.61-P-7412QA Remove/Install APS Radio and Navigation Operating Unit
- with CODE (525) MB Audio 50 APS radio

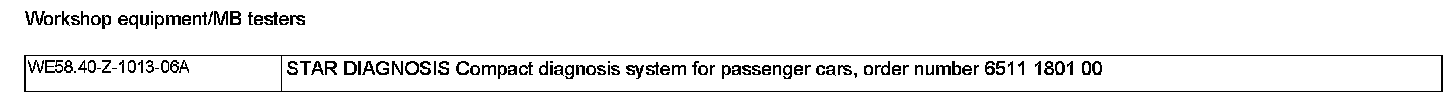

Workshop Equipment/MB Testers:










pro multis Credits:Operation CHARM About Operation CHARM
