TELE AID System PE82.95-U-2101BE

TELE AID System Control Module PE82.95-U-2101BE
- control module N123/4

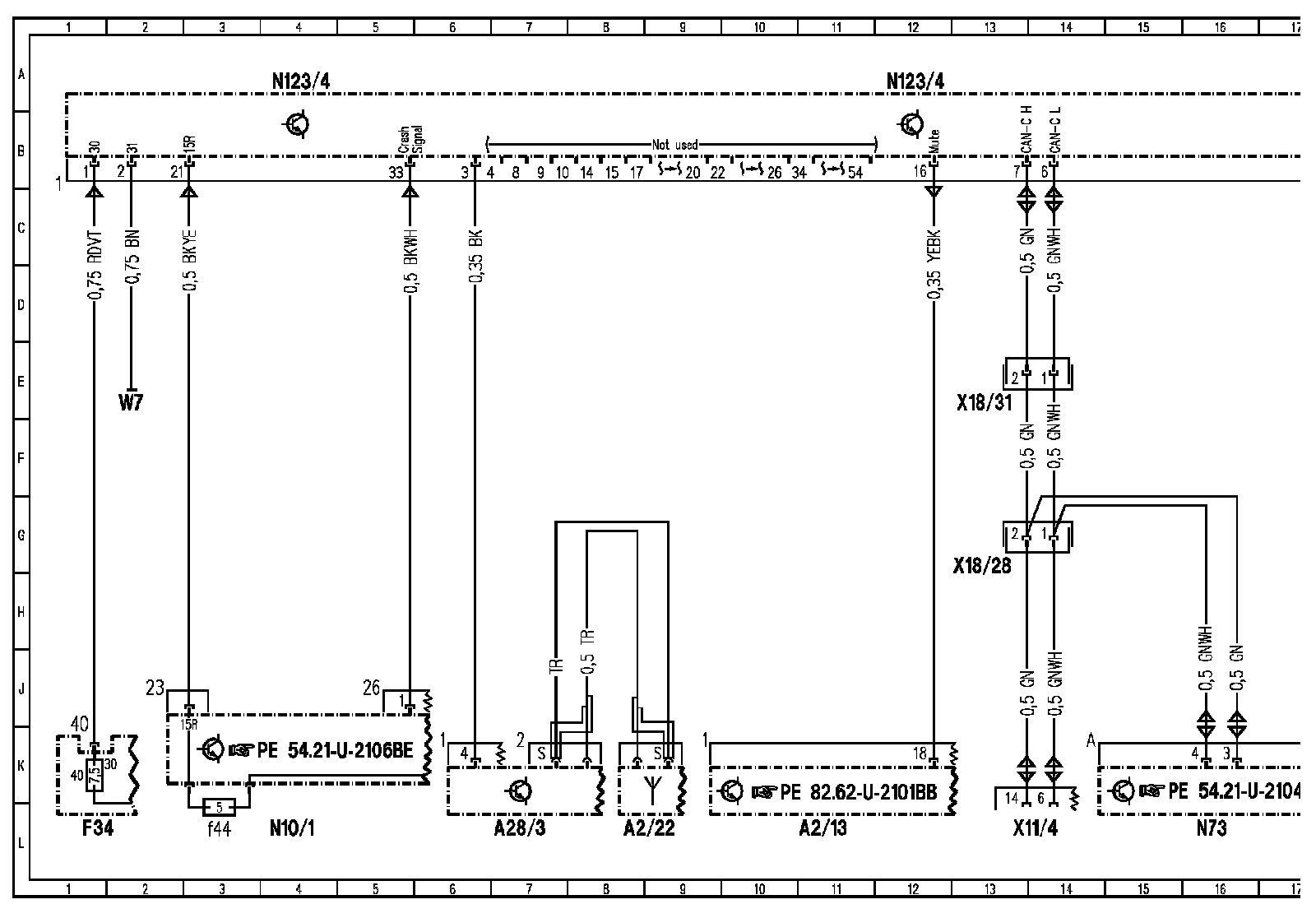

Wiring Diagram, Part-1:

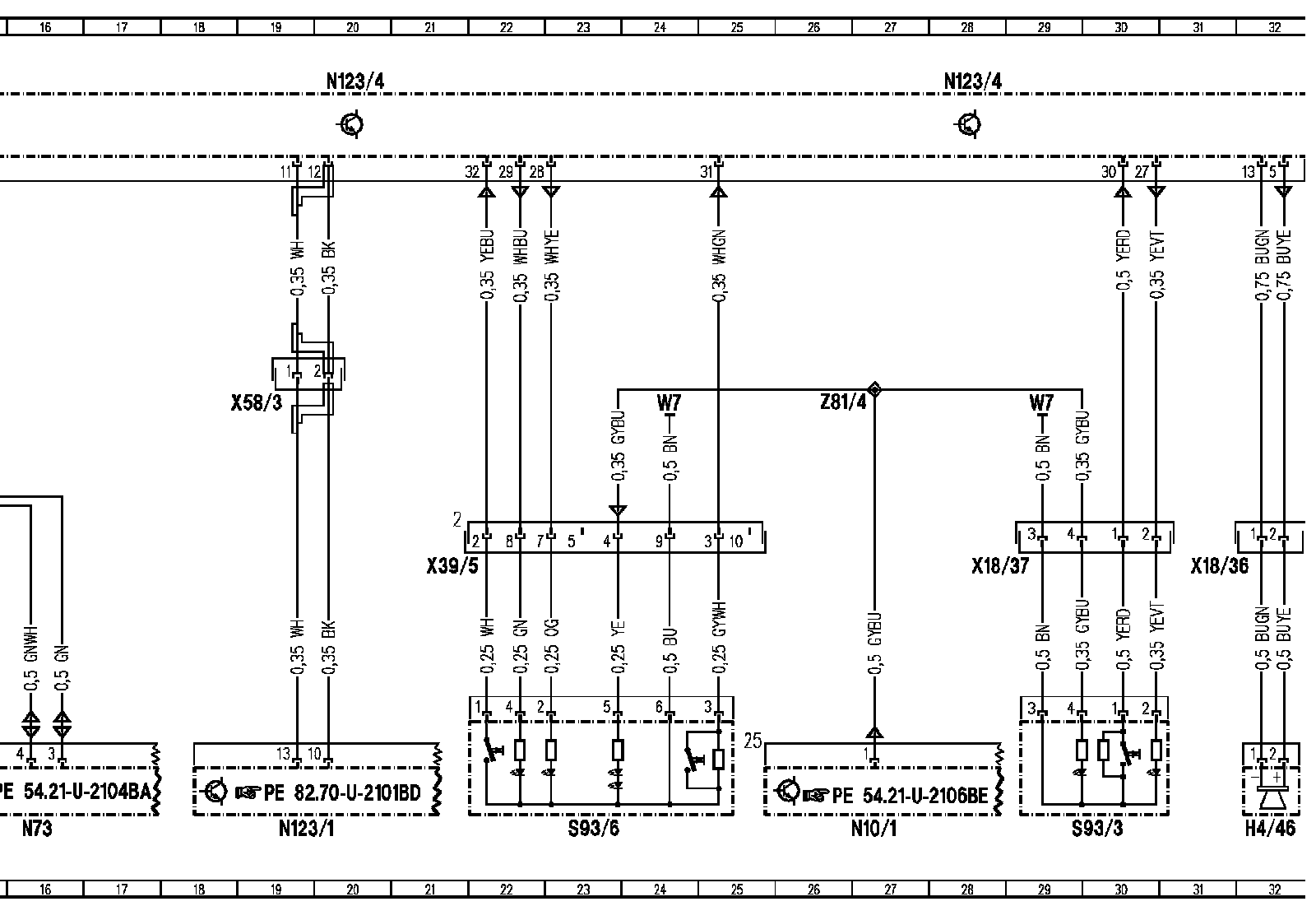

Wiring Diagram, Part-2:

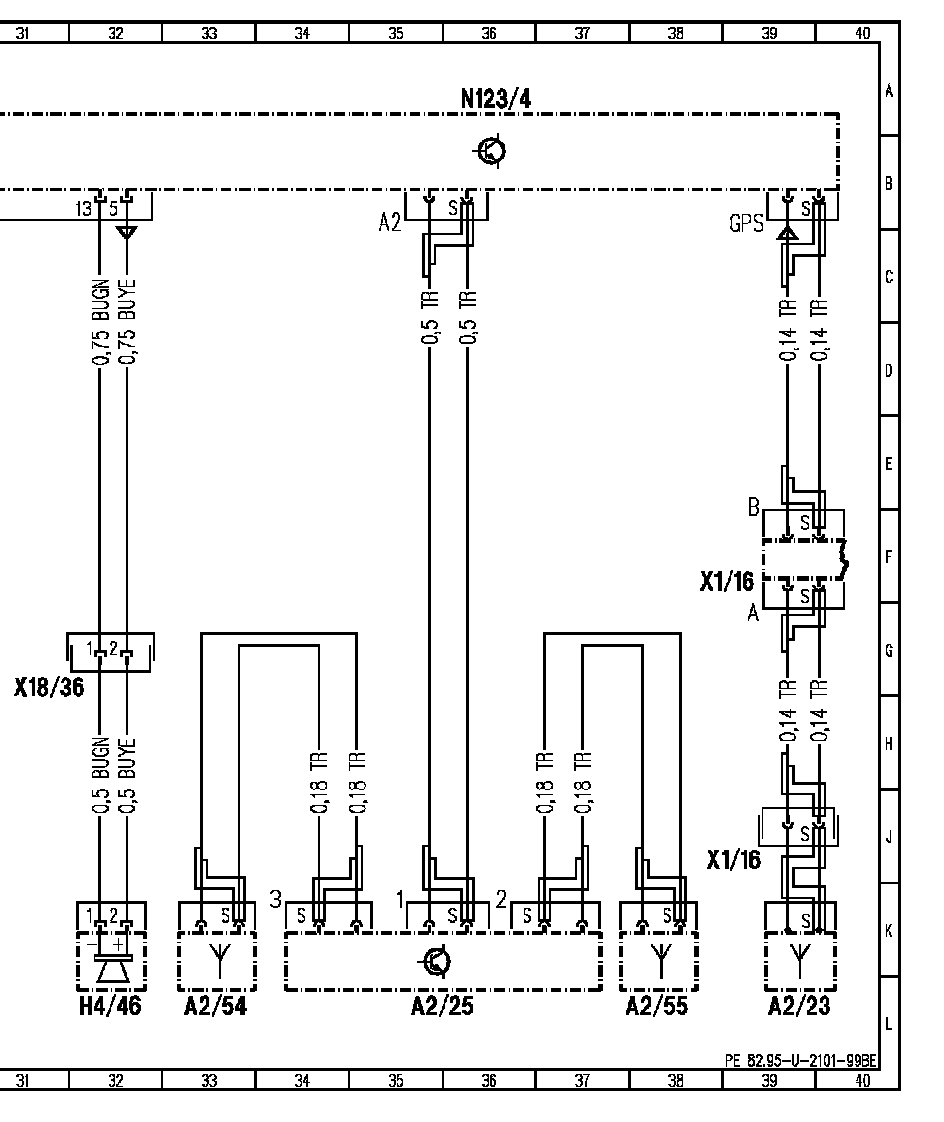

Wiring Diagram, Part-3:

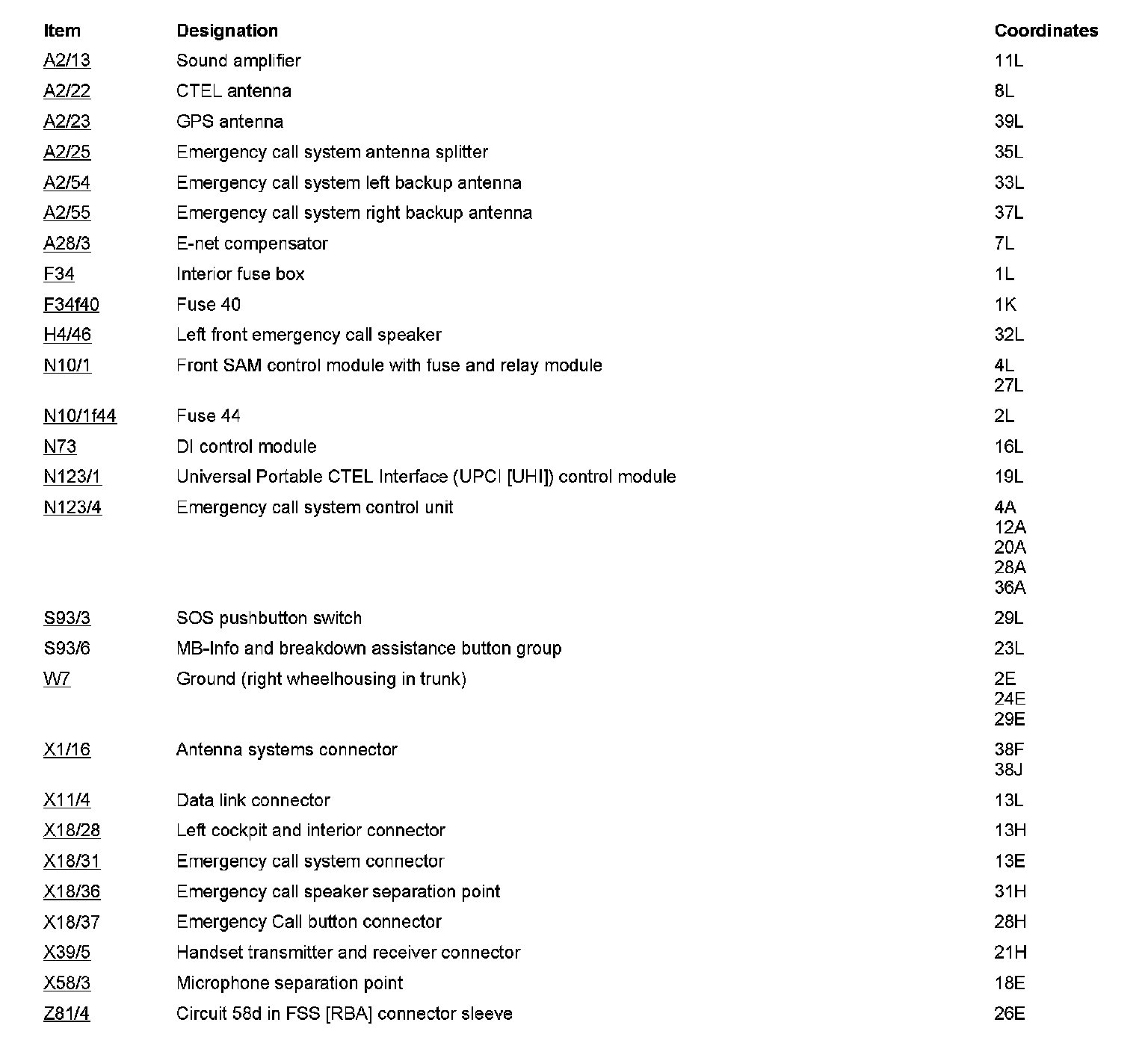

Component Description/Coordinates, A2/13 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
