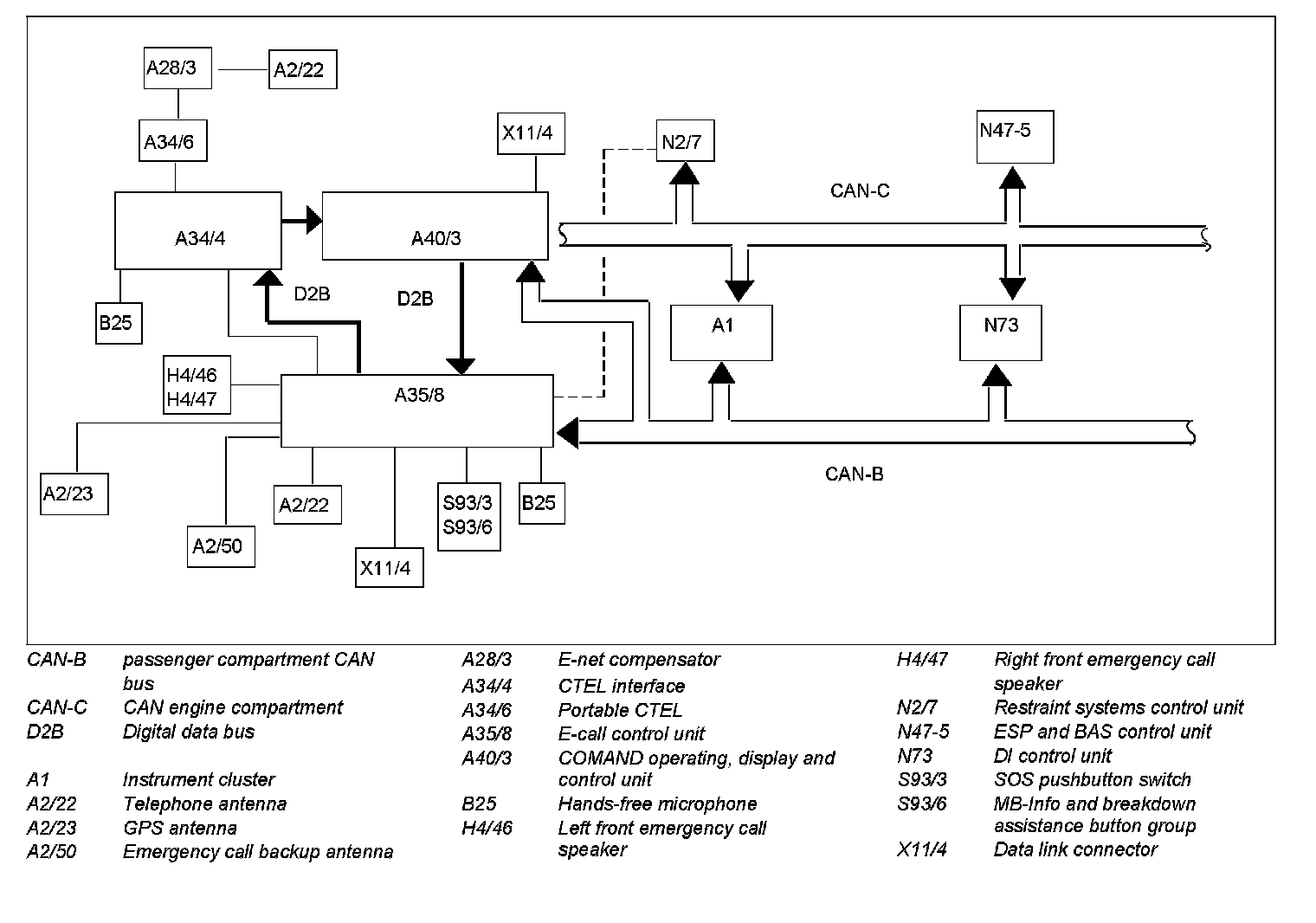

GF82.95-P-0003-02QU Emergency Call (E-Call), Block Diagram



GF82.95-P-0003-02QU Emergency Call (E-call), Block Diagram
- with CODE (349) E-Call emergency call system


Component Identification:
