AR47.10-P-4100-02QBS Open, Close Latch

AR47.10-P-4100-02QBS Open, Close Latch

1 Vehicles without code P98 Black Series: hit back damping mat or take out.

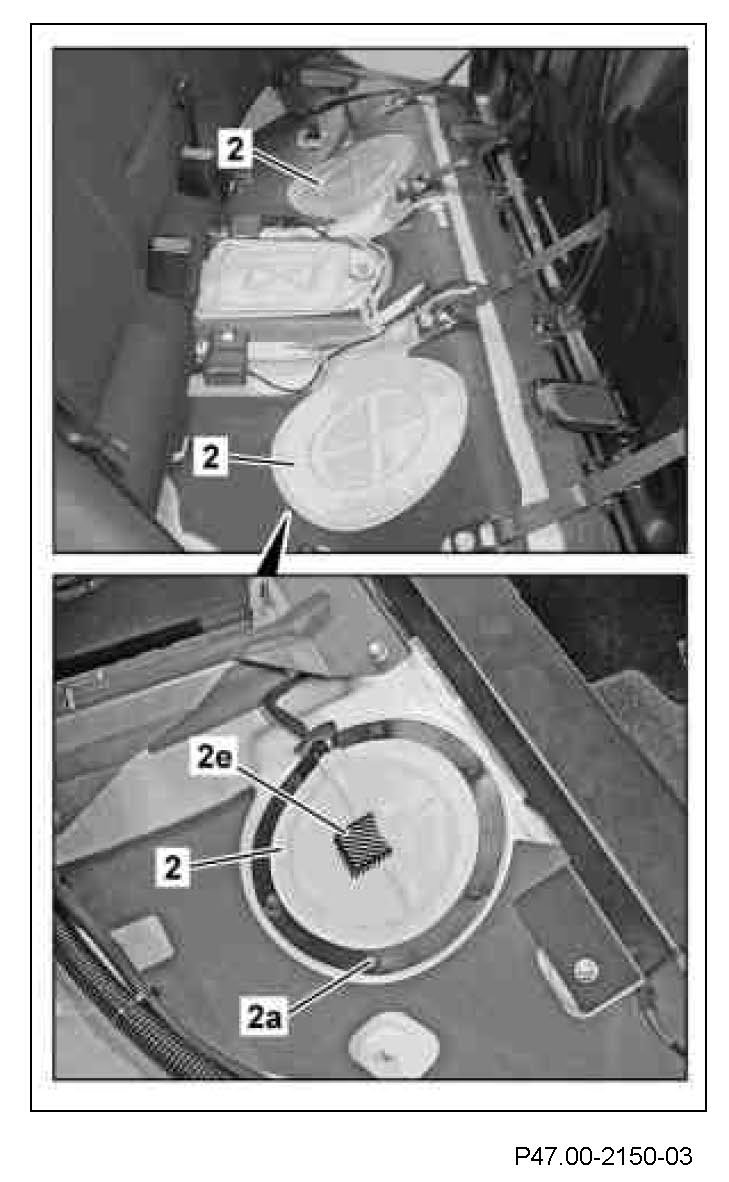

2 Remove bolts (2a) and cover (2) for service openings.
Installation: Observe maximum bolt length of 10 mm. When using longer bolts there is the danger of leaks at the fuel tank and injury to persons or damage to equipment and the environment.
Installation: Do not electrical feed lines get caught in moving parts.
Installation: Mount cover (2) in the correct position. The cover (2) must lay evenly over the whole circumference before assembly of the bolts (2a).
Installation: Model 209 with engine 156: mount cover (2) with the convex recess point (2e) on the right service opening.

3 Install in the reverse order.
Always perform leak test on the fuel system before assembly of the cover (2).
