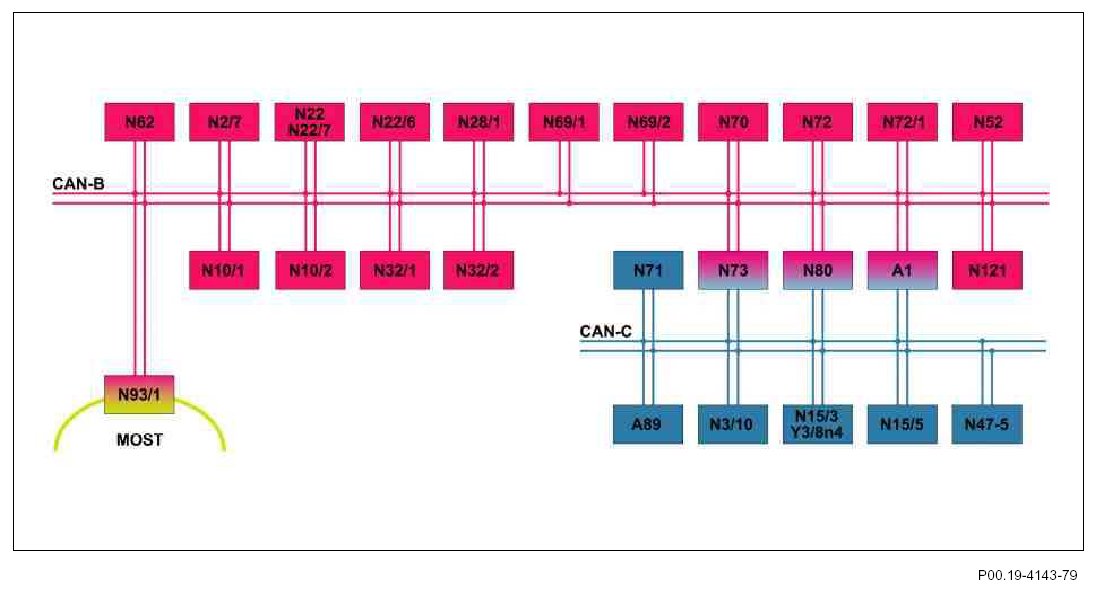

GF00.19-P-0001-02QMJ Overall Network (GVN), Networking of Components

GF00.19-P-0001-02QMJ Overall Network (GVN), Networking Of Components
- MODEL 209.3 /4 as of 1.6.04 with CODE (498) Japan version






A1 Instrument cluster
A89 DTR controller unit (with code (219) Distronic (DTR))
N2/7 Restraint systems control unit
N3/10 ME control unit
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/3 ETC control unit (with transmission 722.6)
N15/5 Electronic selector lever module control unit (with transmission 722)
N22 AAC control and operating unit (without code (581) Comfort automatic air conditioning)
N22/6 Rear control unit (on model 209.3)
N22/7 Comfort AC control and operating unit (with code (581) Comfort automatic air conditioning)
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N32/1 Front seat adjustment control unit with memory and easy entry, driver (with code (275) Electrically adjustable driver seat, steering column and outside mirrors with memory)
N32/2 Front seat adjustment control unit with memory and easy entry, front passenger (with code (242) Electrically adjustable front passenger seat with memory)
N47-5 ESP and BAS control unit
N52 Power soft top control unit (on model 209.4)
N62 PTS control unit (with code (220) Parktronic system (PTS))
N69/1 Left door control unit
N69/2 Right door control unit
N70 Overhead control panel control unit
N71 Headlamp range adjustment control unit (with code (614) Bi-xenon headlamp unit or with code (615) Bi-xenon headlamp unit with integrated curve illumination)
N72 Lower control panel control unit (with code (219) Distronic (DTR))
N72/1 Upper control panel control unit
N73 EIS [EZS] control unit N80 Steering column module
N93/1 Audio gateway control unit
N121 TLC control unit (with code (881) remote trunk closing (RTC))
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
CAN-B Controller Area Network bus class B (interior compartment) (CAN-B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN-C)
MOST Media Oriented System Transport (MOST)







A2/6 CD player with changer (in glove box) (for code (819) 6-disk CD changer)
A2/13 Sound amplifier (with code (810) Sound system)
A35/1 Hands-free system control unit (with code (529) HIGH Class Japan)
A40/3 COMAND operating, display and controller unit
N93/1 Audio gateway control unit
CAN-B Controller area network bus class B (interior compartment) (CAN B)
MOST Media Oriented System Transport (MOST)
