Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant >> Service and Repair >> AR83.55-P-5250P Correct Oil Level In Air Conditioning System When Replacing Refrigerant Compressor

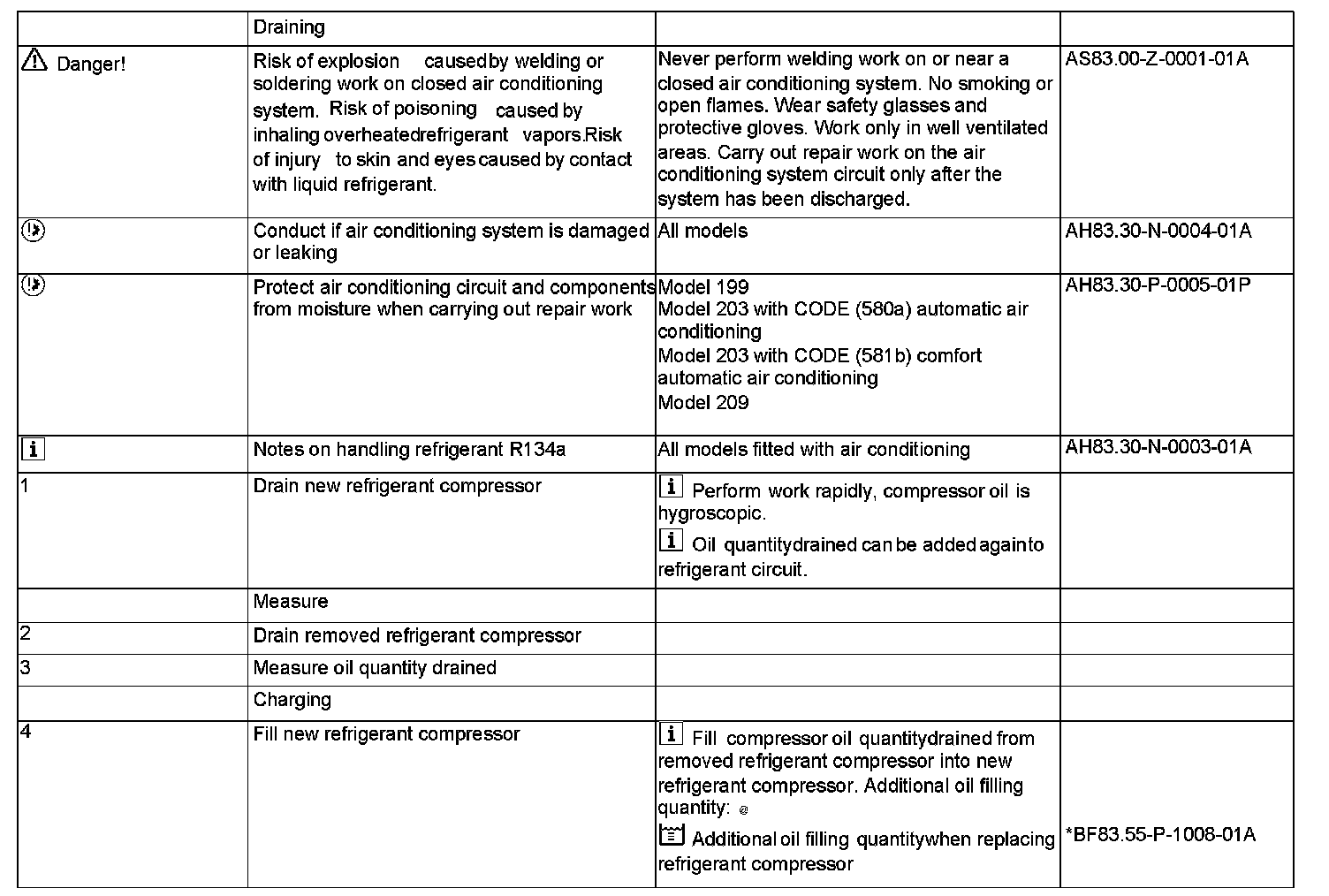

AR83.55-P-5250P Correct Oil Level In Air Conditioning System When Replacing Refrigerant Compressor



AR83.55-P-5250P Correct Oil Level In Air Conditioning System When Replacing Refrigerant Compressor
- with CODE (580) Automatic air conditioning [model 203]
- with CODE (581) Comfort automatic air conditioning [model 203]

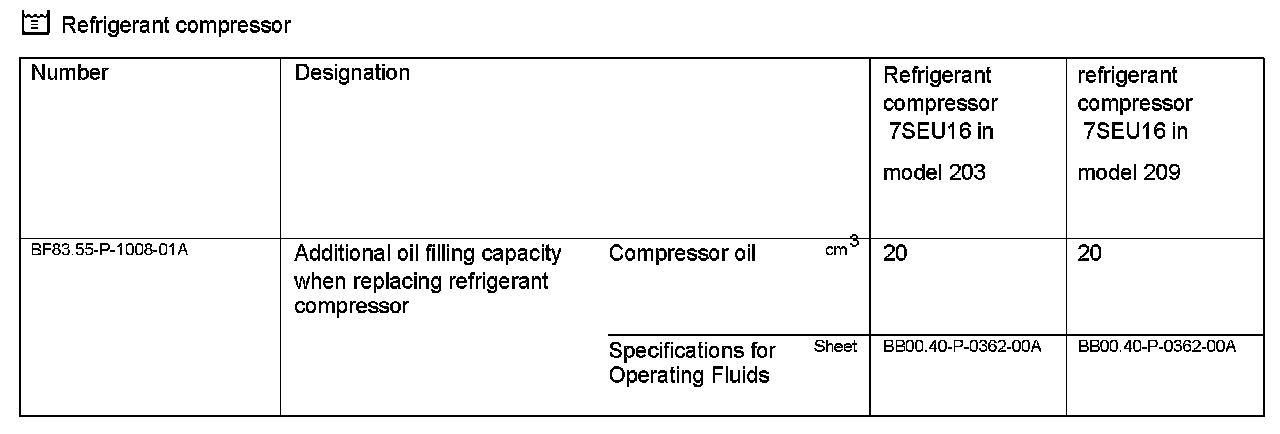

Refrigerant Compressor:
