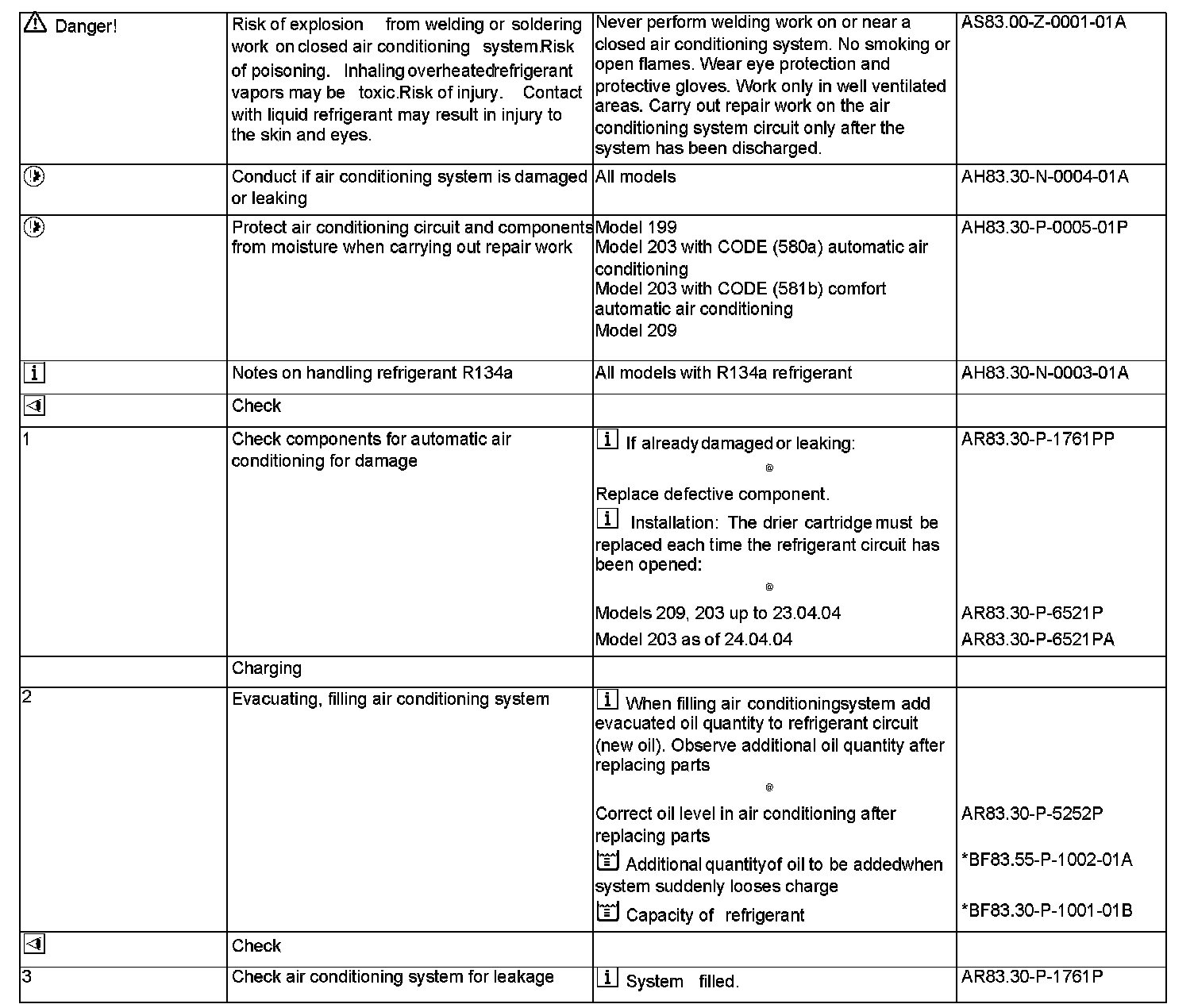

AR83.30-P-5253P Correct Fluid Level In the Air Conditioning In the Case of Sudden System Evacuation



AR83.30-P-5253P Correct Fluid Level In the Air Conditioning In the Case of Sudden System Evacuation

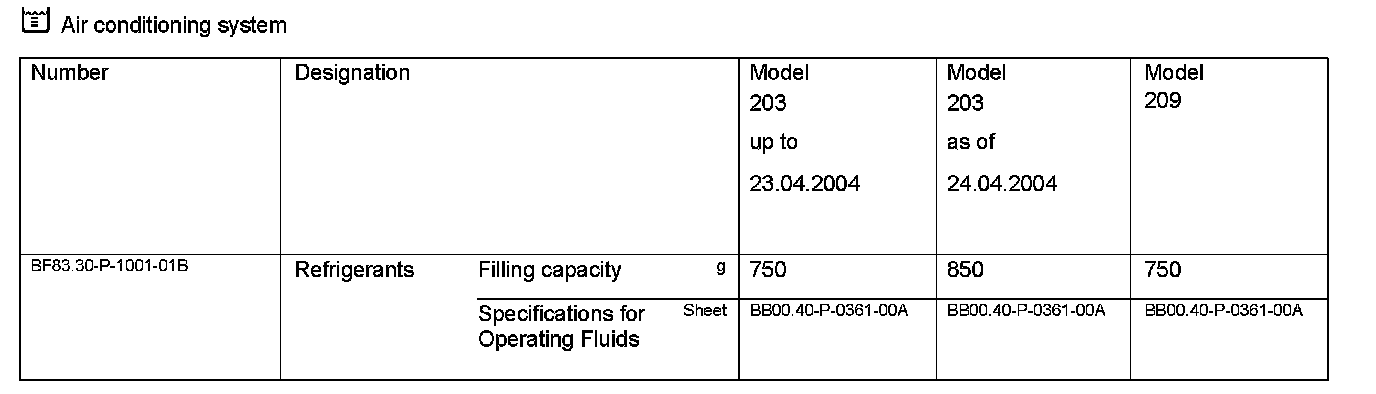

Air Conditioning System:

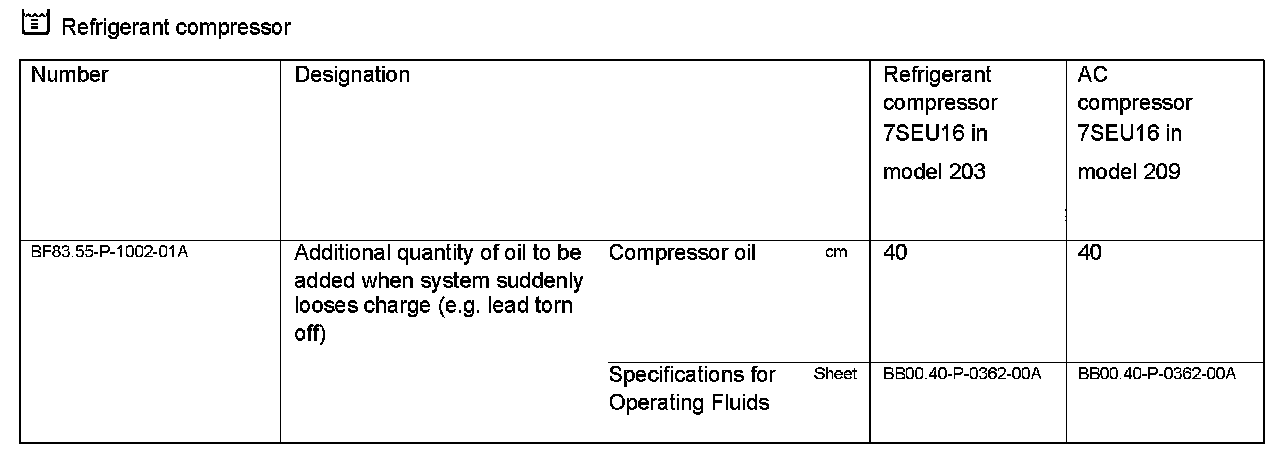

Refrigerant Compressor:
