AR40.30-P-0420A Checking Alignment of Spring Control Arm, Camber Strut, Strut Rod, Thrust Arm and Tie Rod on Rear Axle
AR40.30-P-0420A Checking alignment of spring control arm, camber strut, strut rod, thrust arm and tie rod on rear axle
- except CODE (P98) Black Series [Model 209]

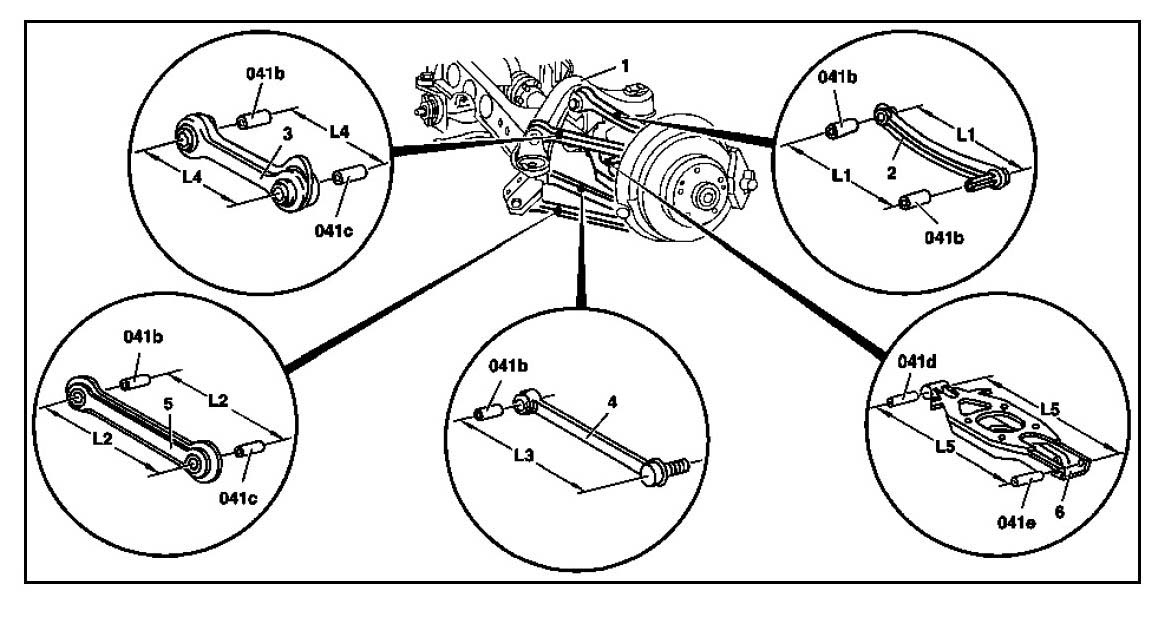

Component Identification:

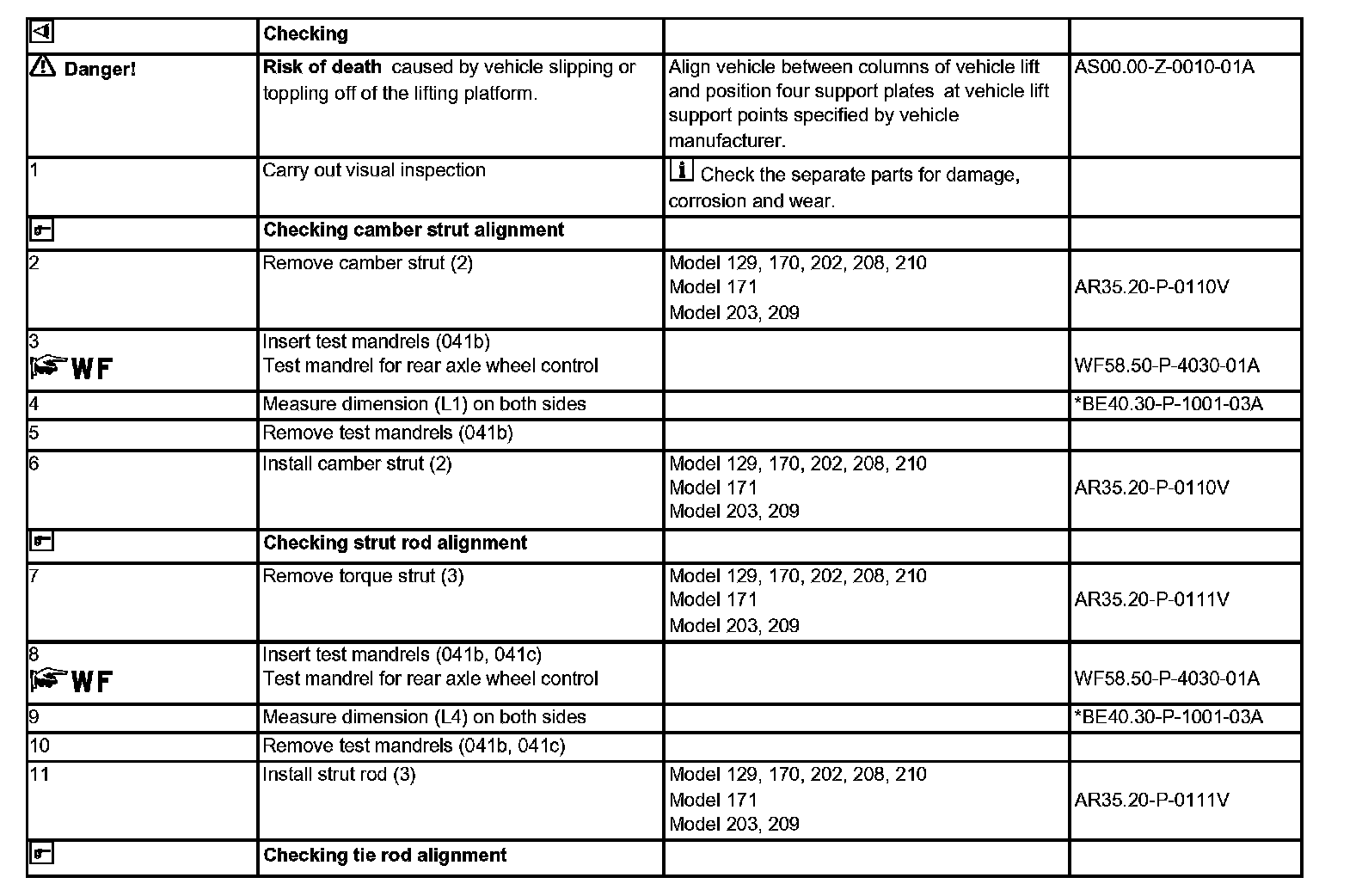

Steps 1-11:

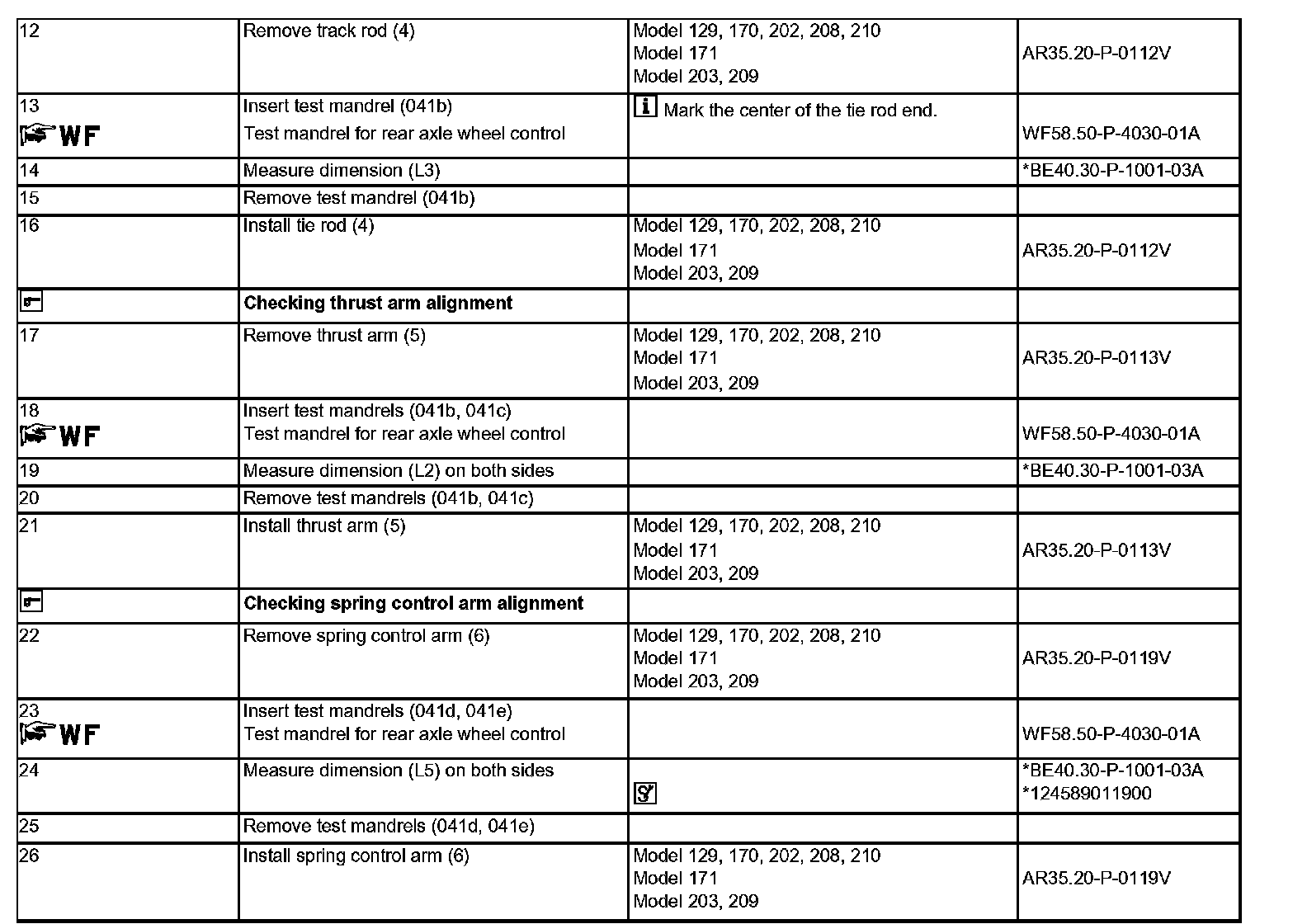

Steps 12-26:

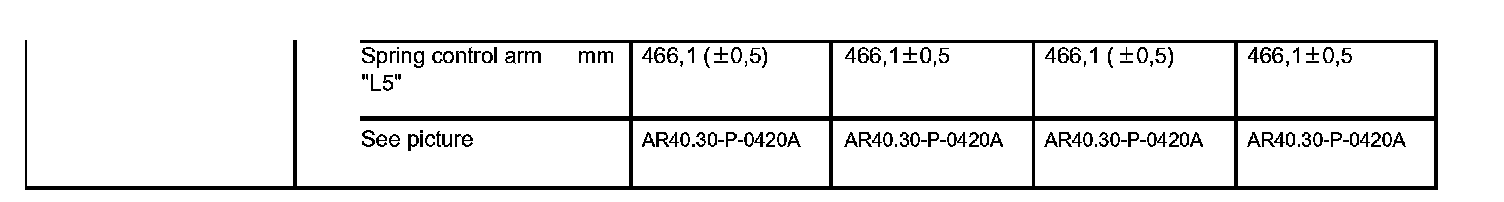

Rear axle check values - thrust/strut/camber strut, spring control arm, tie rod:

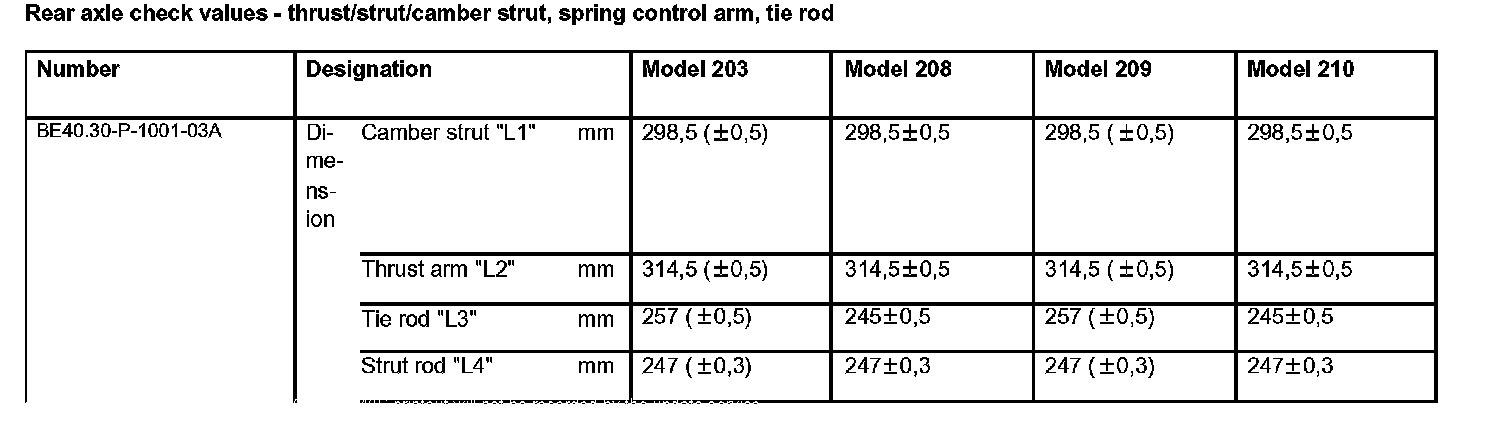

Rear axle check values - thrust/strut/camber strut, spring control arm, tie rod:

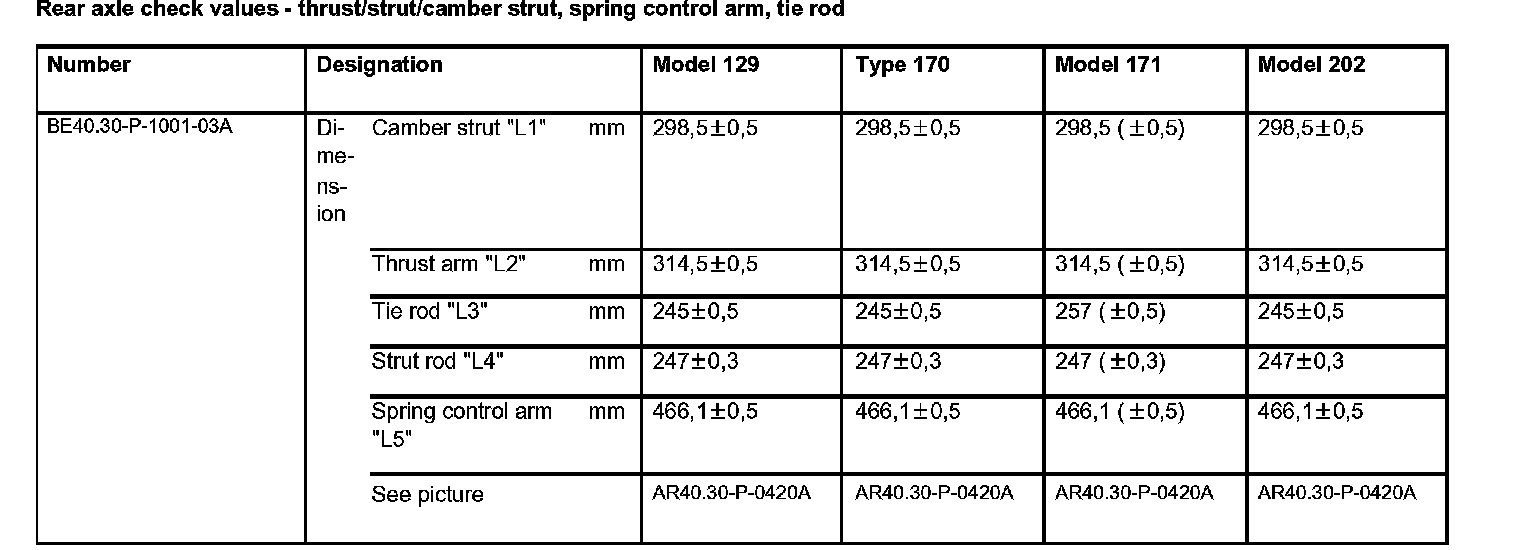

Rear axle check values - thrust/strut/camber strut, spring control arm, tie rod:

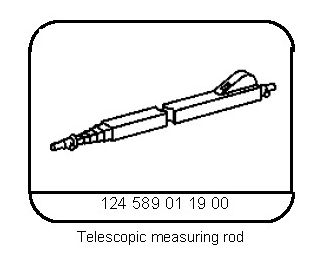

Special Tools:
