AR40.20-P-0322-03QBS Check Caster and Assign to Tabular Value

AR40.20-P-0322-03QBS Check caster and assign to tabular value
- with CODE (P98) Black Series

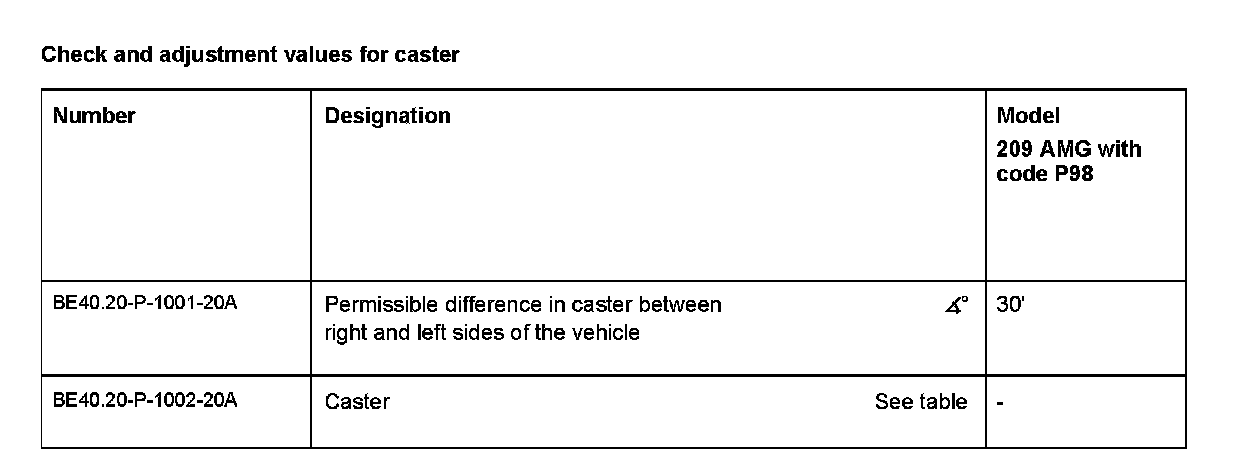

Check and adjustment values for caster

Check and adjustment values for caster:

Tolerance for caster ± 30'

The level values are displayed by the electronic inclinometer in decimal degrees °.
1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

Example, see Table:
Front axle level value (FA): +8.3 degrees

Rear axle level value (RA): -4.3 degrees
= Caster value 10 degrees 55' ( ± 30')
