AR40.20-P-0322-03Q Check Caster and Assign to Tabular Value

AR40.20-P-0322-03Q Check caster and assign to tabular value

Check and adjustment values for caster

Check and adjustment values for caster:

Tolerance for caster ± 30'

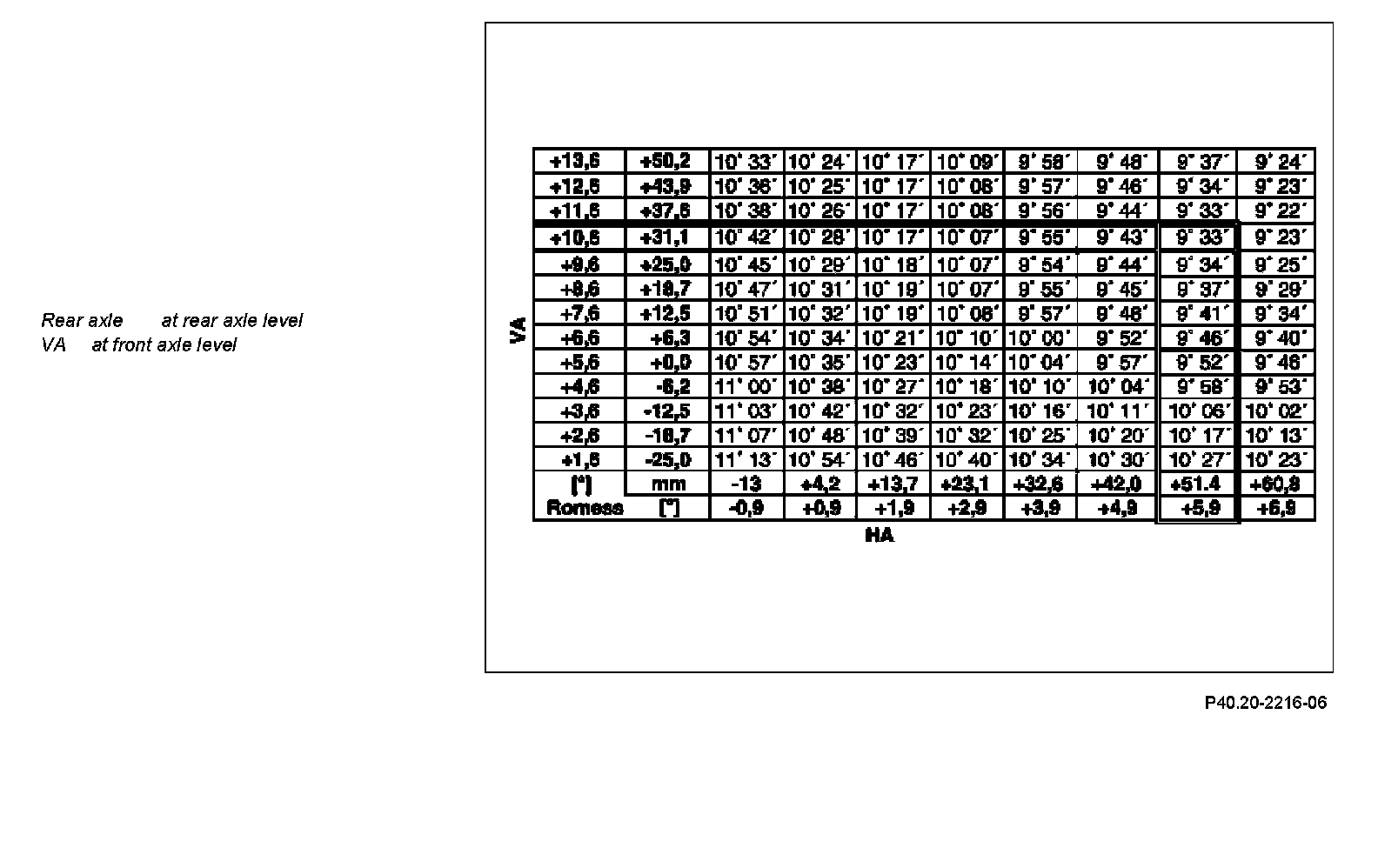

The level values are displayed by the electronic inclinometer in decimal degrees.

Example:
Level of front axle +10.6 degrees

+ Rear axle level +5.9 degrees
= Caster value 9 degrees 33'
