AR40.20-P-0261QBS Adjust Rear-Axle Toe



AR40.20-P-0261QBS Adjust rear-axle toe
- with CODE (P98) Black Series

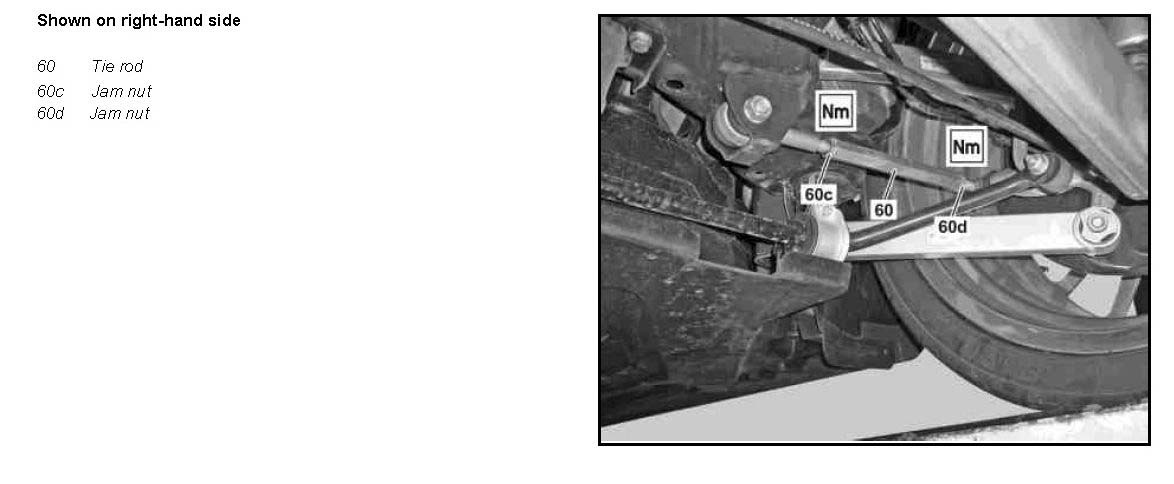

Component Identification:

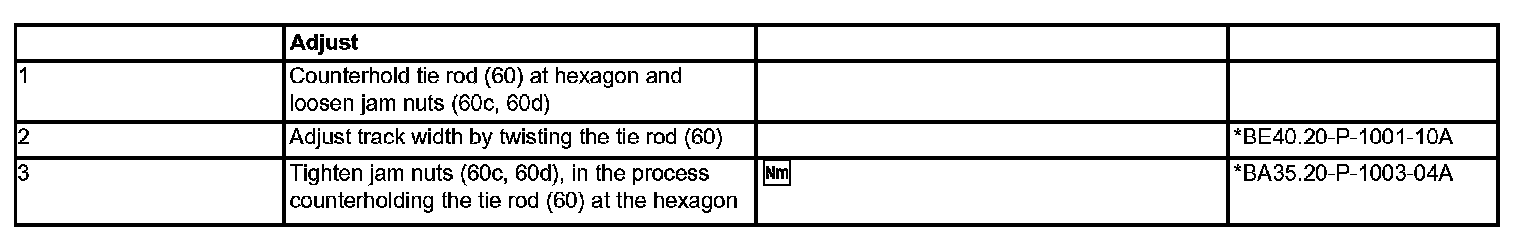

Steps 1-3:

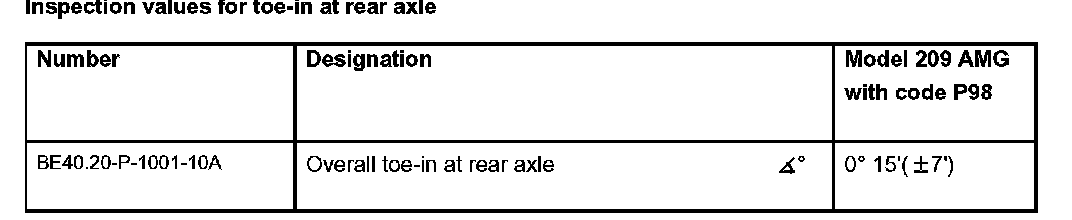

Inspection values for toe-in at rear axle:

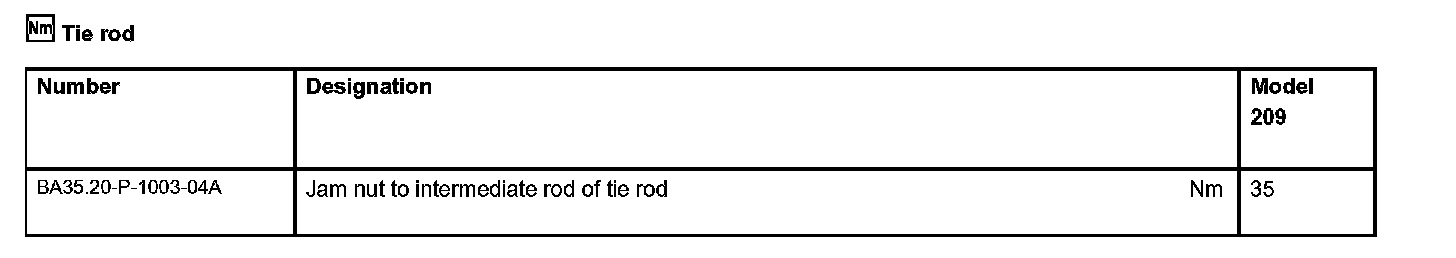

Tie rod:
