AR32.25-P-0050-02QBS Adjust Vehicle Level

AR32.25-P-0050-02QBS Adjust vehicle level
- with CODE (P98) Black Series [Model 209, 230]
- with CODE (P99) Special model "AMG Black Series" [Model 230]

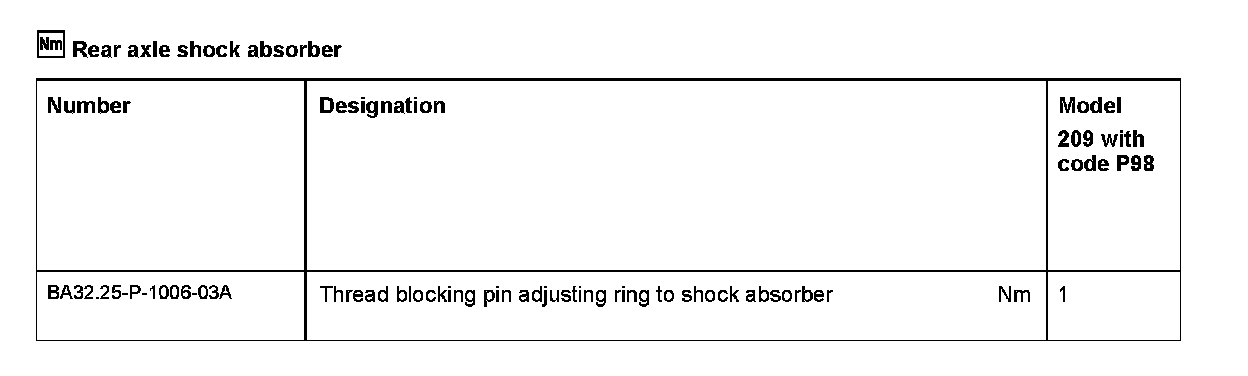

Rear axle shock absorber:

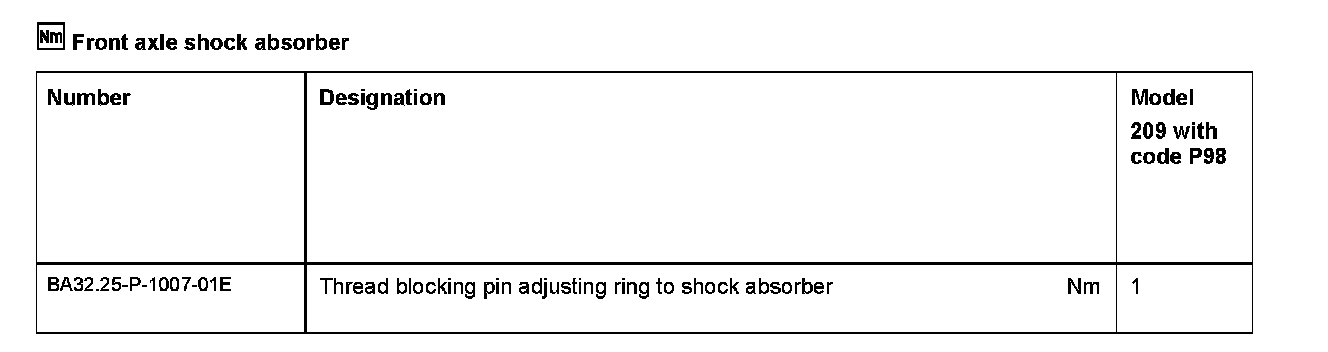

Front axle shock absorber:

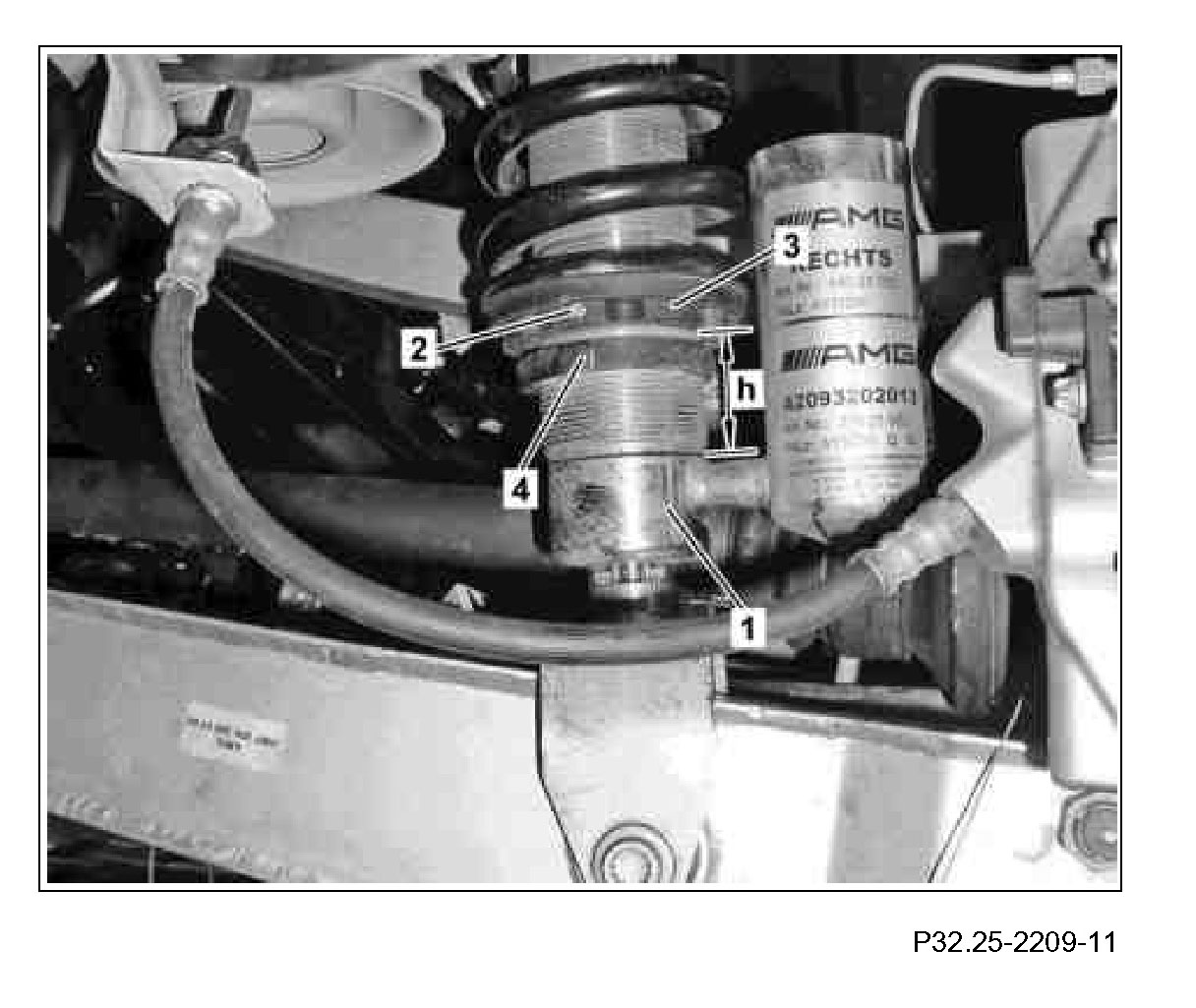

Component Identification:

The limiting ring (4) must not be adjusted otherwise the vehicle and wheels will be damaged.

Clean the thread above and below the adjusting ring (3) with compressed air otherwise the thread will be damaged.

Do not exceed specified tightening torque of threaded locking pin (2) otherwise the adjusting ring (3) may be damaged.

1 Loosen the thread blocking pin (2) by two revolutions.
2 Turn adjusting ring (3) with hook claw.
3 Tighten thread blocking pin (2).

The dimension "h" must have the following values for the basic setting of vehicle level:

MODEL 209:
^ Front axle: 27 mm ± 1 mm
^ Rear axle: 39.5 mm ± 1 mm
Model 230:
^ Front axle: 66 mm ± 1 mm
^ Rear axle: 22 mm ± 1 mm
