GF82.10-P-3014Q Trailer Sensing, Function

GF82.10-P-3014Q Trailer Sensing, Function
- with CODE (550) Trailer hitch

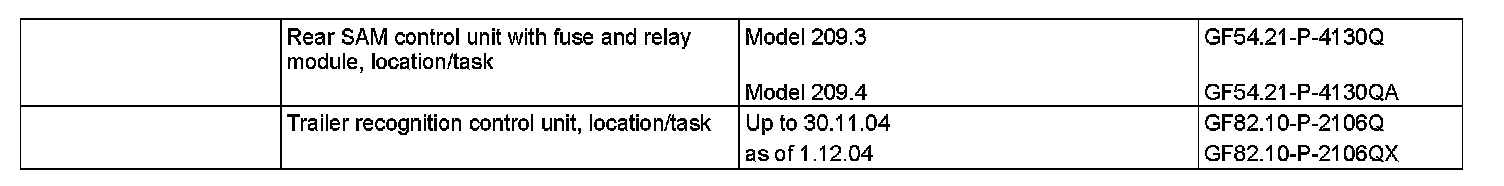

Component Identification:

Function requirements:
^ Circuit 15 ON
^ The trailer is mechanically coupled.

Function sequence

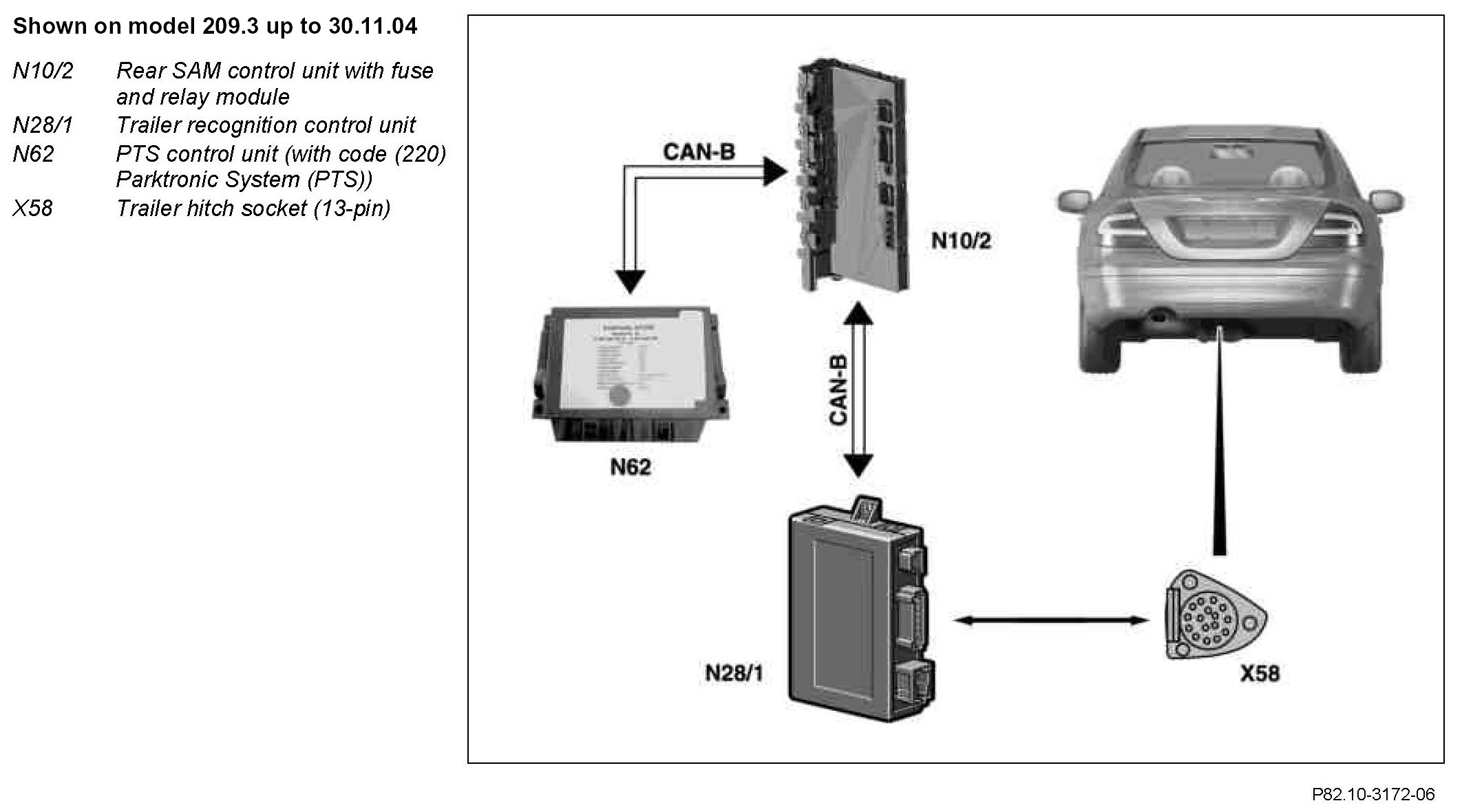

The trailer's connecting line is hooked up to the AHV socket, 13-pin (X58). The trailer left turn signal lamp and stop lamp circuits are briefly supplied with current by the trailer recognition control unit (N28/1).
The trailer recognition control unit (N28/1) detects the electrically connected trailer on the basis of the closed circuit of the turn signal lamps or stop lamps.

The trailer recognition control unit (N28/1) sends the "Trailer connected" CAN message to the rear SAM control unit with fuse and relay module (N10/2) via the class B (interior) Controller Area Network Bus (CAN-B).
The rear SAM control unit with fuse and relay module (N10/2) activates the actuation and monitoring of the trailer lighting system.

In vehicles with code (220) Parktronic system (PTS), the CAN-B message causes the PTS control unit (N62) to switch off the Parktronic sensors in the rear bumper.
