AR82.10-P-1201QB Remove/Install Bulbs of Headlamp Unit



AR82.10-P-1201QB Remove/Install Bulbs of Headlamp Unit
- with CODE (614) Bi-xenon headlamp unit
- except CODE (615) Bi-xenon headlamp unit with integrated curve illumination

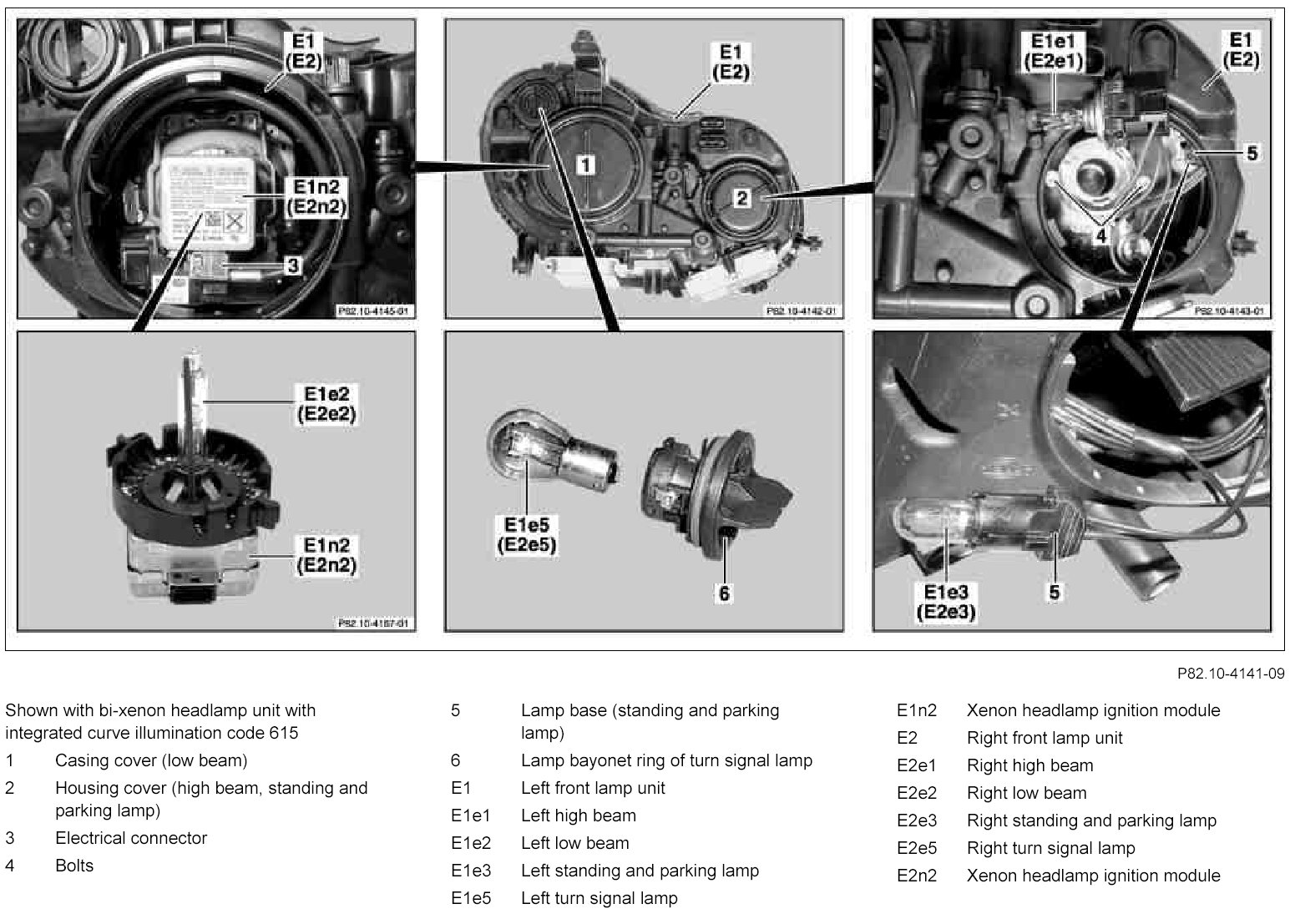

Component Identification:

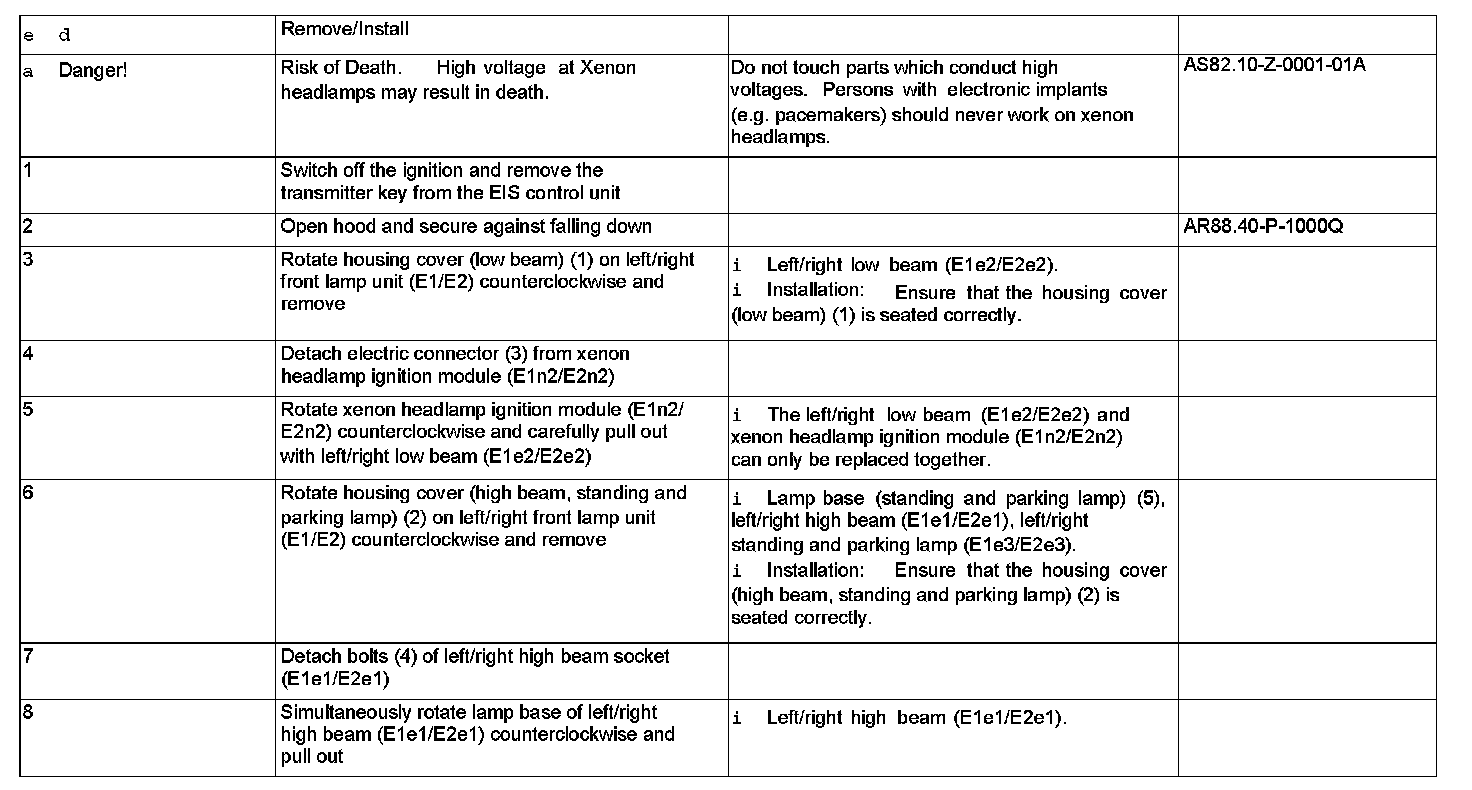

Steps 1 - 8:

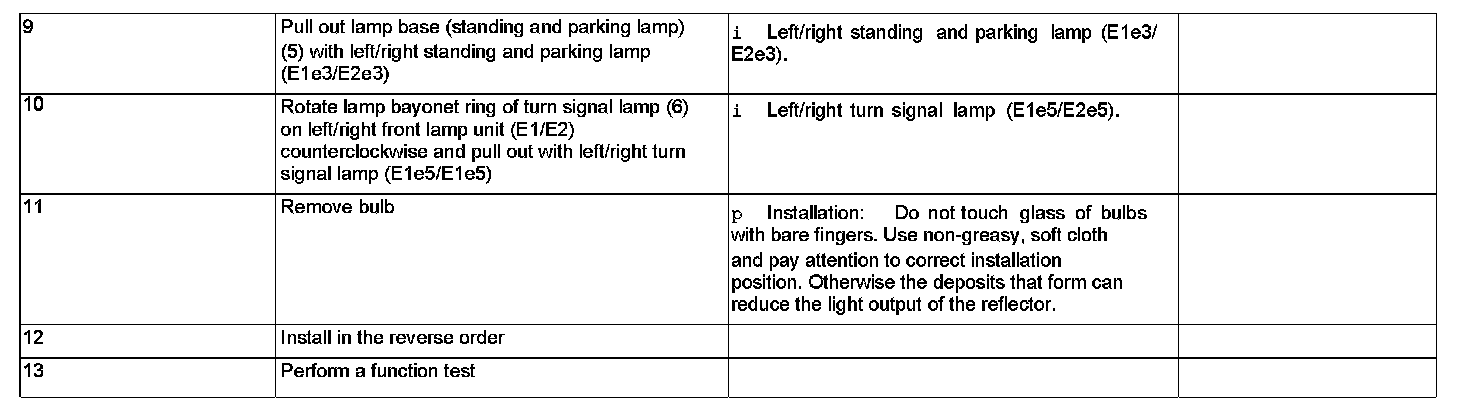

Steps 9 - 13:
