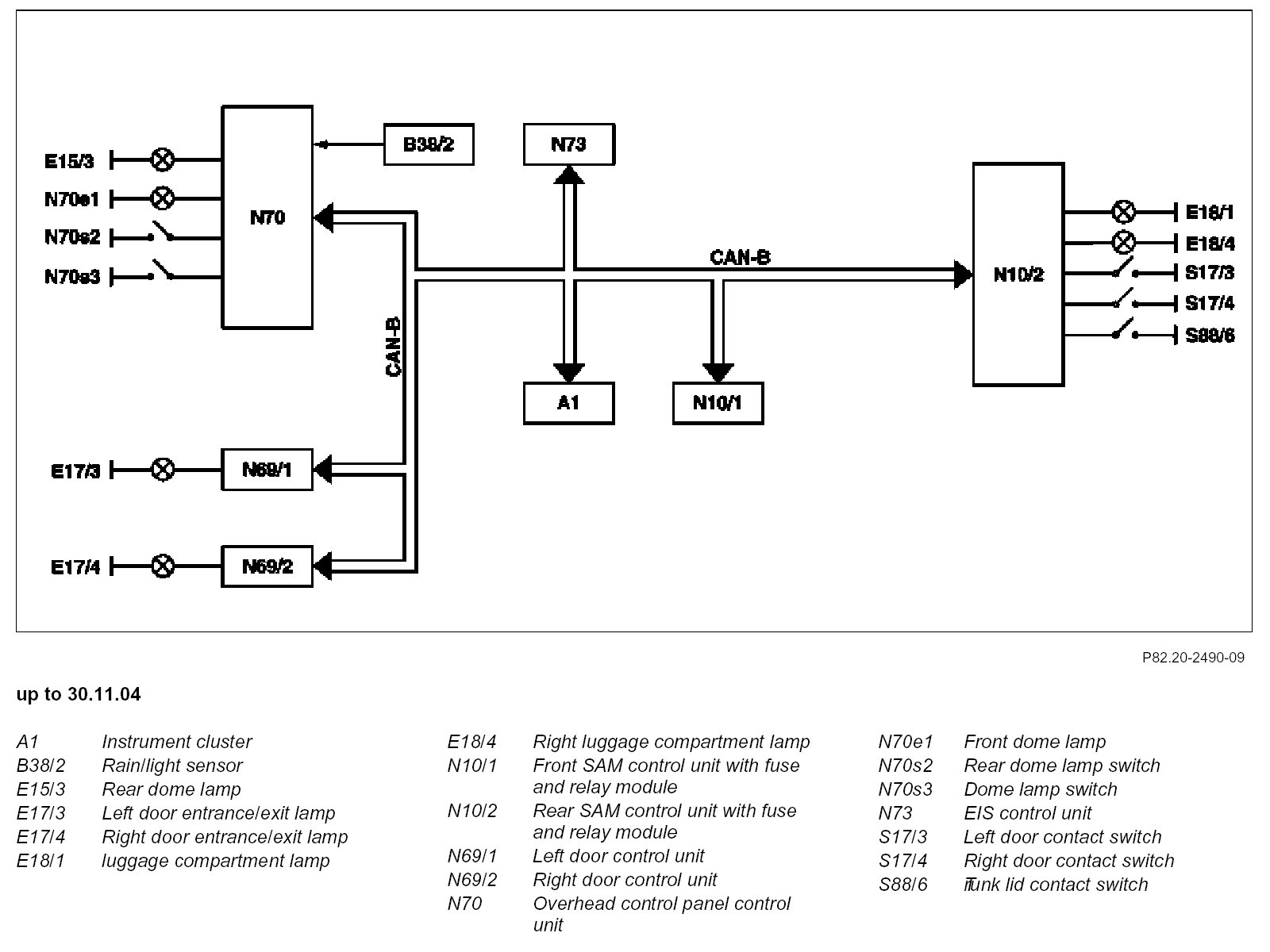

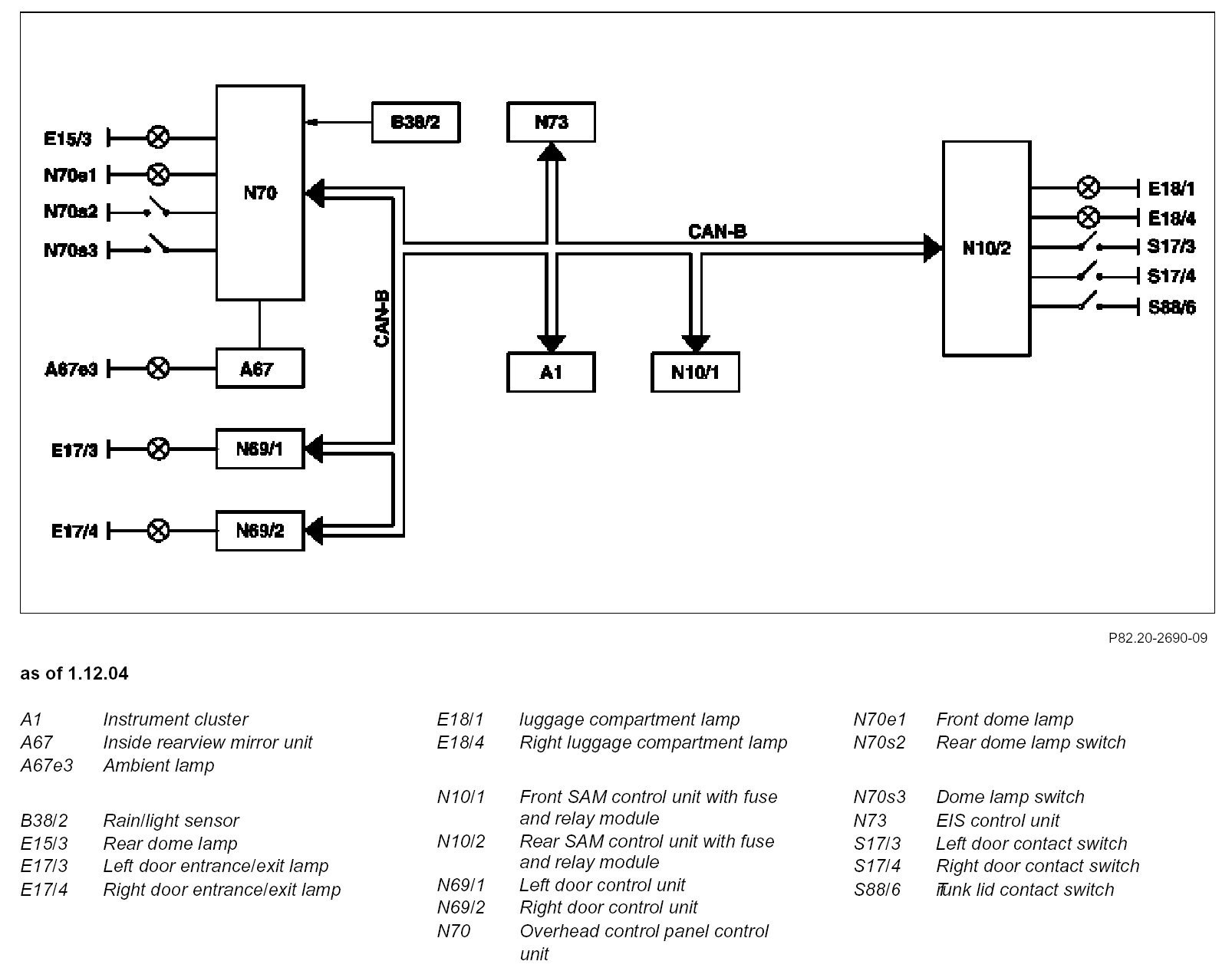

GF82.20-P-0002-02Q Interior Lights (IBL) Component Network

GF82.20-P-0002-02Q Interior Lights (IBL) Component Network

Component Identification:

The following lamps are not listed in the figure:
^ Glove compartment illumination with switch (E13/2)
^ Left front vanity mirror illumination (E14/1).
^ Right vanity mirror illumination (E14/2)
^ Left front reading lamp (N70e2)
^ Right front reading lamp (N70e3)
^ Front cigar lighter (with illumination) (R3)
