AR54.30-P-6015-01P Pull Out Instrument Cluster

AR54.30-P-6015-01P Pull Out Instrument Cluster

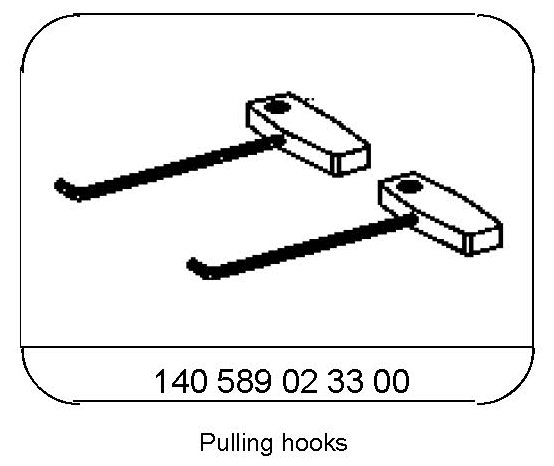

Special Tools:

Do not damage the dashboard when removing.

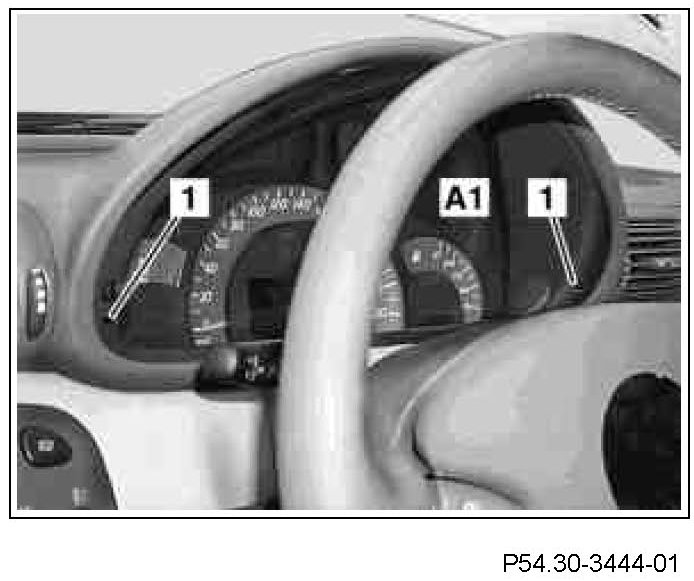

1. Insert pulling hooks into slots (1) in instrument cluster (A1) with the bend pointing to the right.

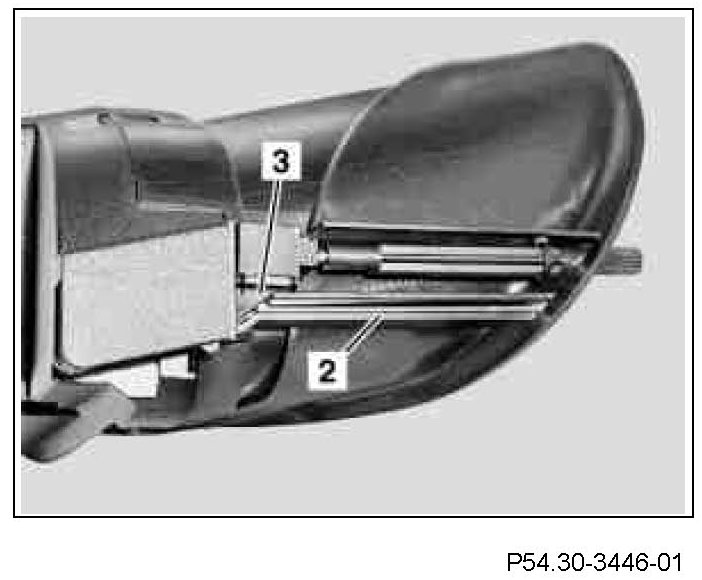

To prevent the pulling hooks from slipping out of the guide duct (2), they must be pressed gently outwards (in direction of arrow).







2. Carefully insert pulling hooks as far as the stop (approx. 80 mm) and unlock catch (3).

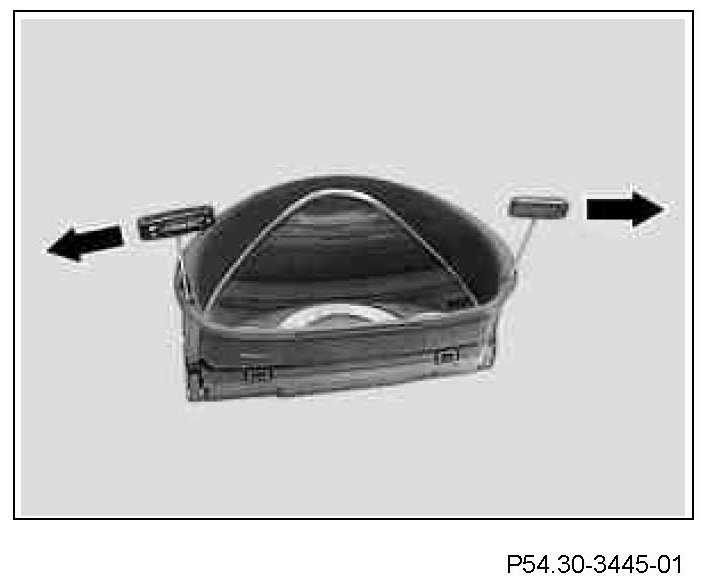

Turn pulling hook 90° in clockwise direction (elbow is pointing down).

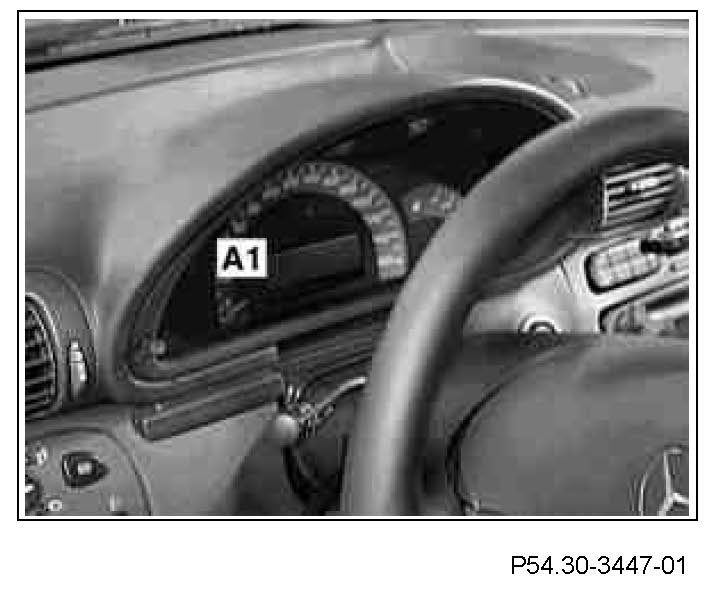

3. Carefully pull out instrument cluster (A1).
