Driver/Vehicle Information Display: Service and Repair

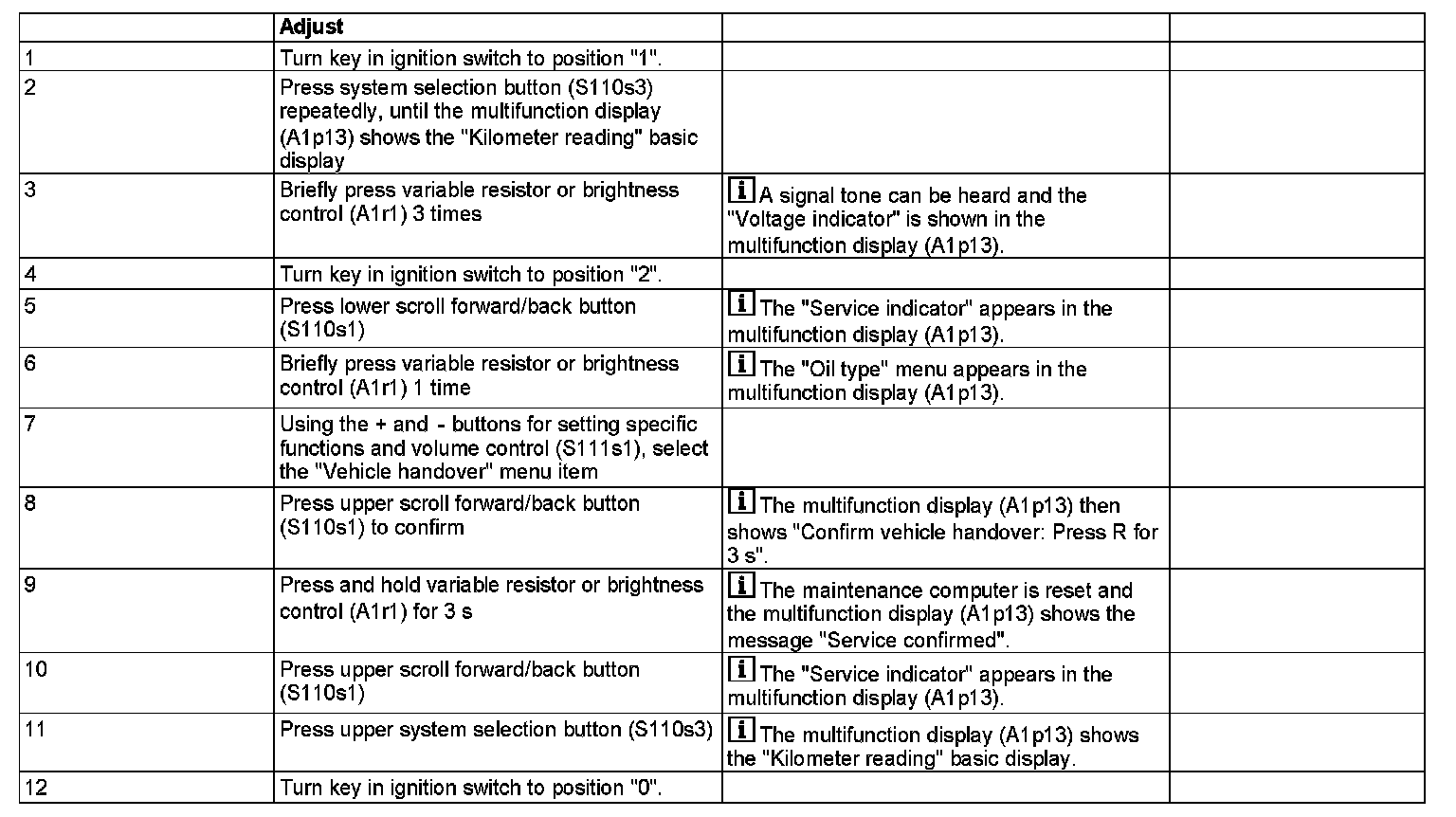

AR00.20-P-0006R Perform Vehicle Handover
- MODEL 203, 209, 230

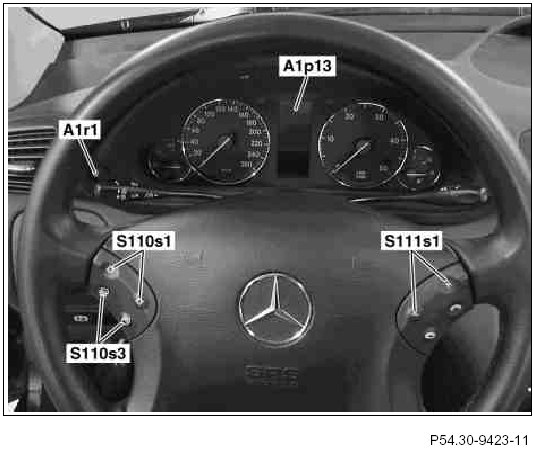

A1p13 Multifunction display (model 203, 209)
A1p13 Left multifunction display (model 230)
A1r1 Instrument illumination variable resistor (model 203)
A1r1 Instrument illumination brightness control and reset button (model 209, 230)
S110s1 Scroll forward/back button
S110s3 System selection button
S111s1 Buttons + and - for setting specific functions and volume control
