GF83.40-P-2170-02Q Comfort Automatic Air Conditioning Housing, Task

GF83.40-P-2170-02Q Comfort Automatic Air Conditioning Housing, Task
- with CODE (581b) Convenience automatic air conditioning

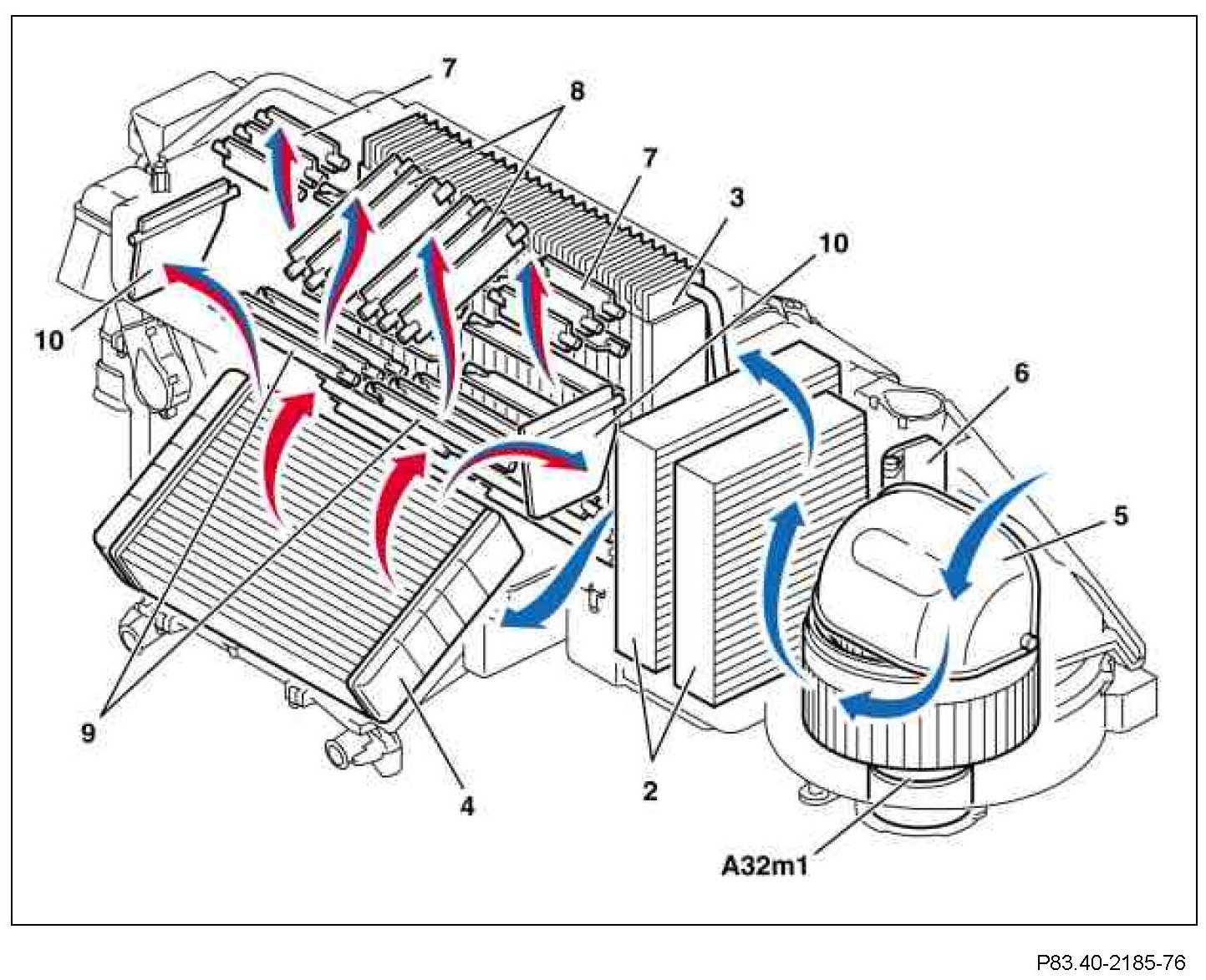

The comfort automatic air conditioning housing houses the following components
^ Air deflector flaps (5 to 10)
^ Activated charcoal filter (2)
^ Blower motor (A32m1)
^ Evaporator (3)
^ Heating system heat exchanger (4)
^ Expansion valve
^ Actuator motors
and therefore forms a complete unit. The comfort automatic air conditioning housing distributes the air that is required to ventilate the vehicle to the relevant air ducts and vents depending on the interior temperature that is required.







The air ducting depends on various operating conditions such as:
^ Heating mode
^ Cooling mode
^ Normal mode
^ Blended air mode
