Evaporator Core: Testing and Inspection

AR83.30-P-5550Q Check Evaporator For Leakage
- with CODE (580) Automatic air conditioning [model 171]
- with CODE (581) Comfort automatic air conditioning [model 171]

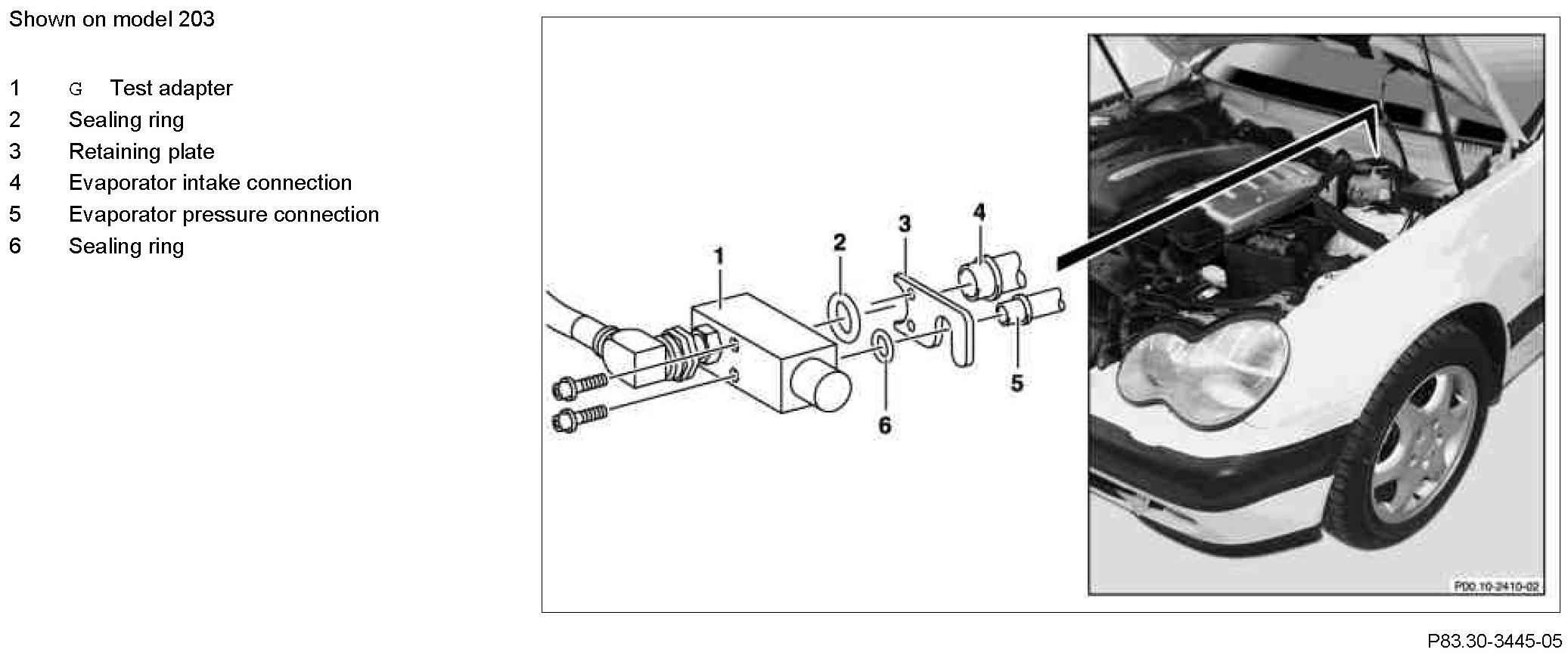

Component Identification:

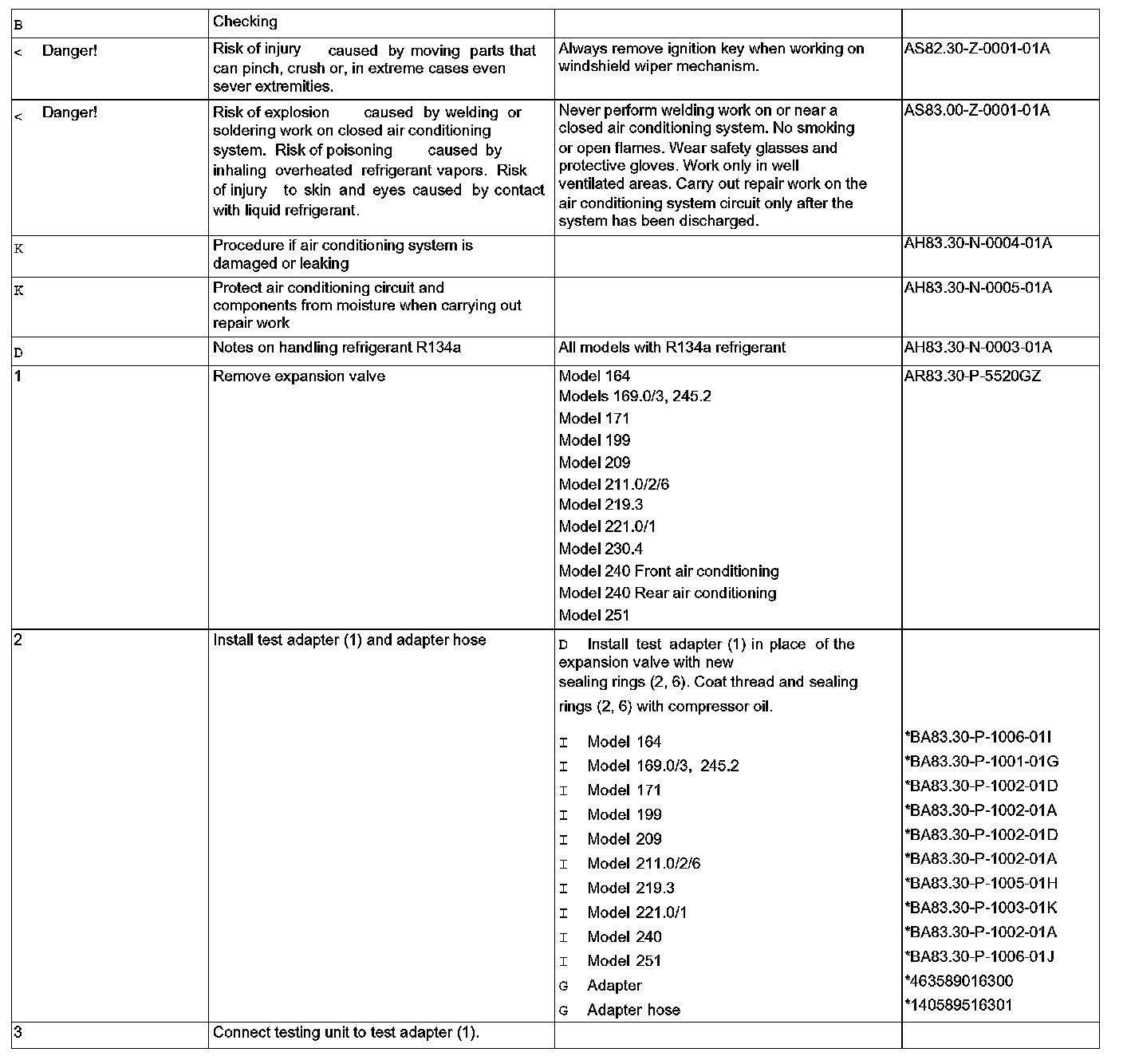

Steps 1 - 3:

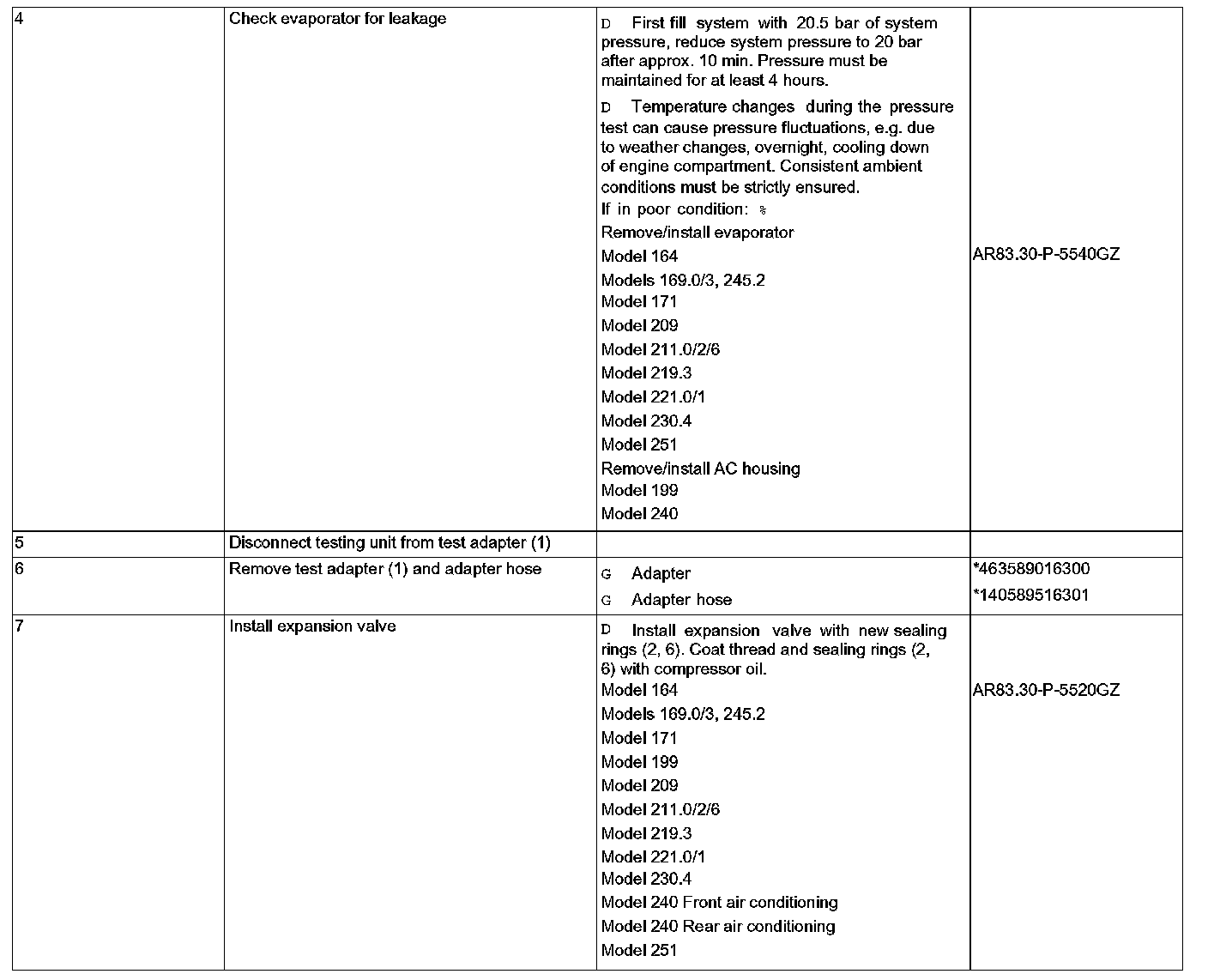

Steps 4 - 7:

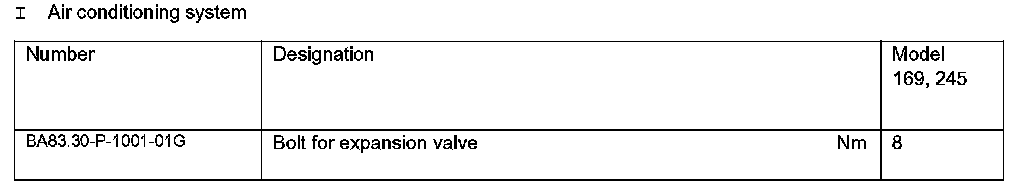

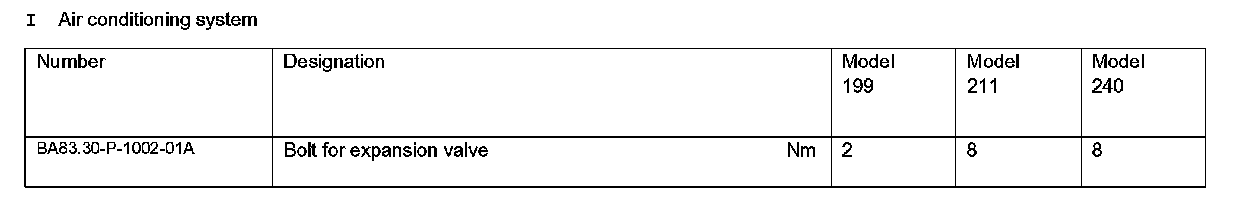

Air Conditioning System:

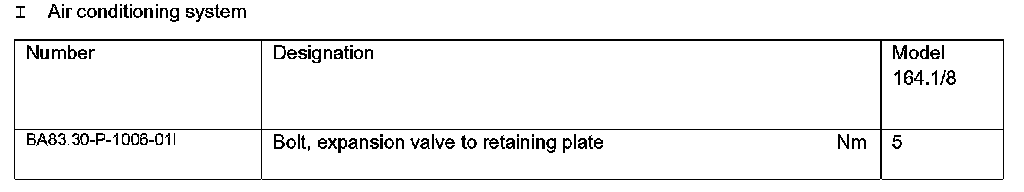

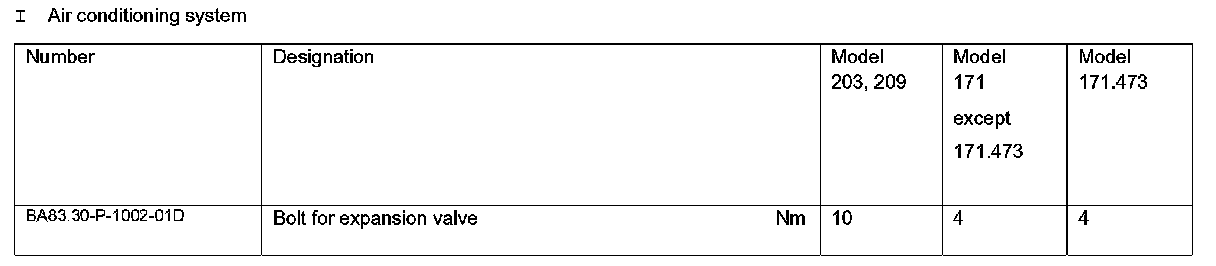

Air Conditioning System:

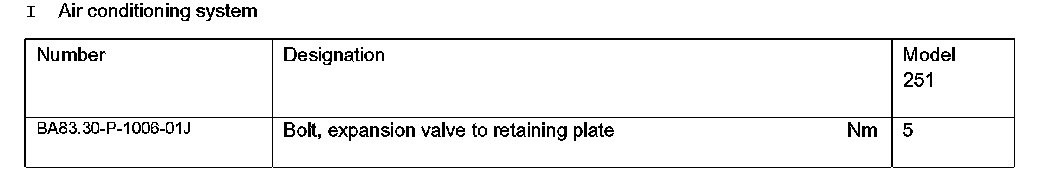

Air Conditioning System:

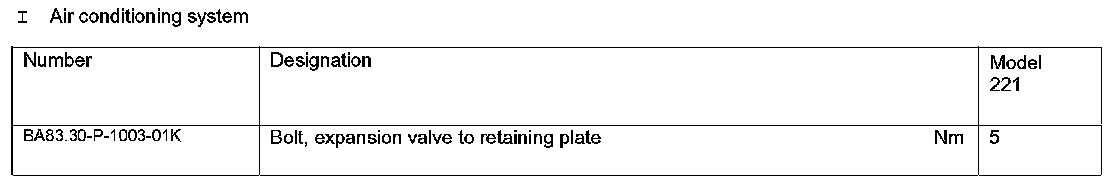

Air Conditioning System:

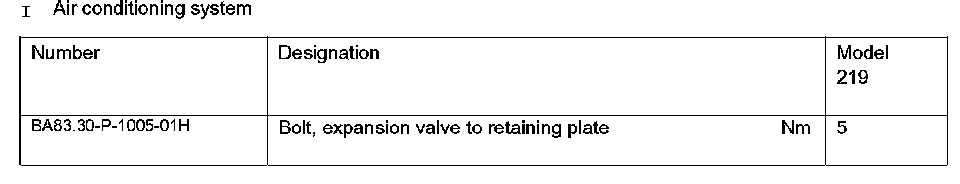

Air Conditioning System:

Air Conditioning System:

Air Conditioning System:

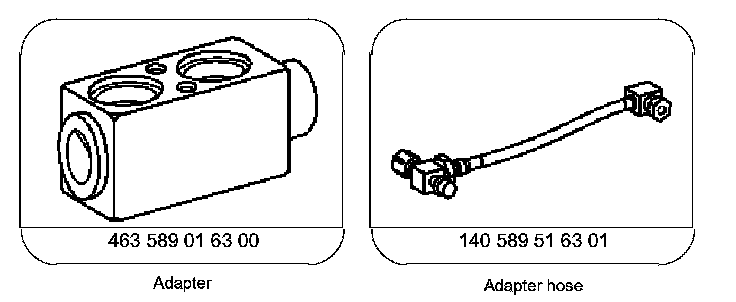

Special Tools:
