GF83.40-P-0001-02Q Automatic Air Conditioning (AAC) Component Networking



GF83.40-P-0001-02Q Automatic Air Conditioning (AAC) Component Networking
- except CODE (581) Comfort automatic air conditioning

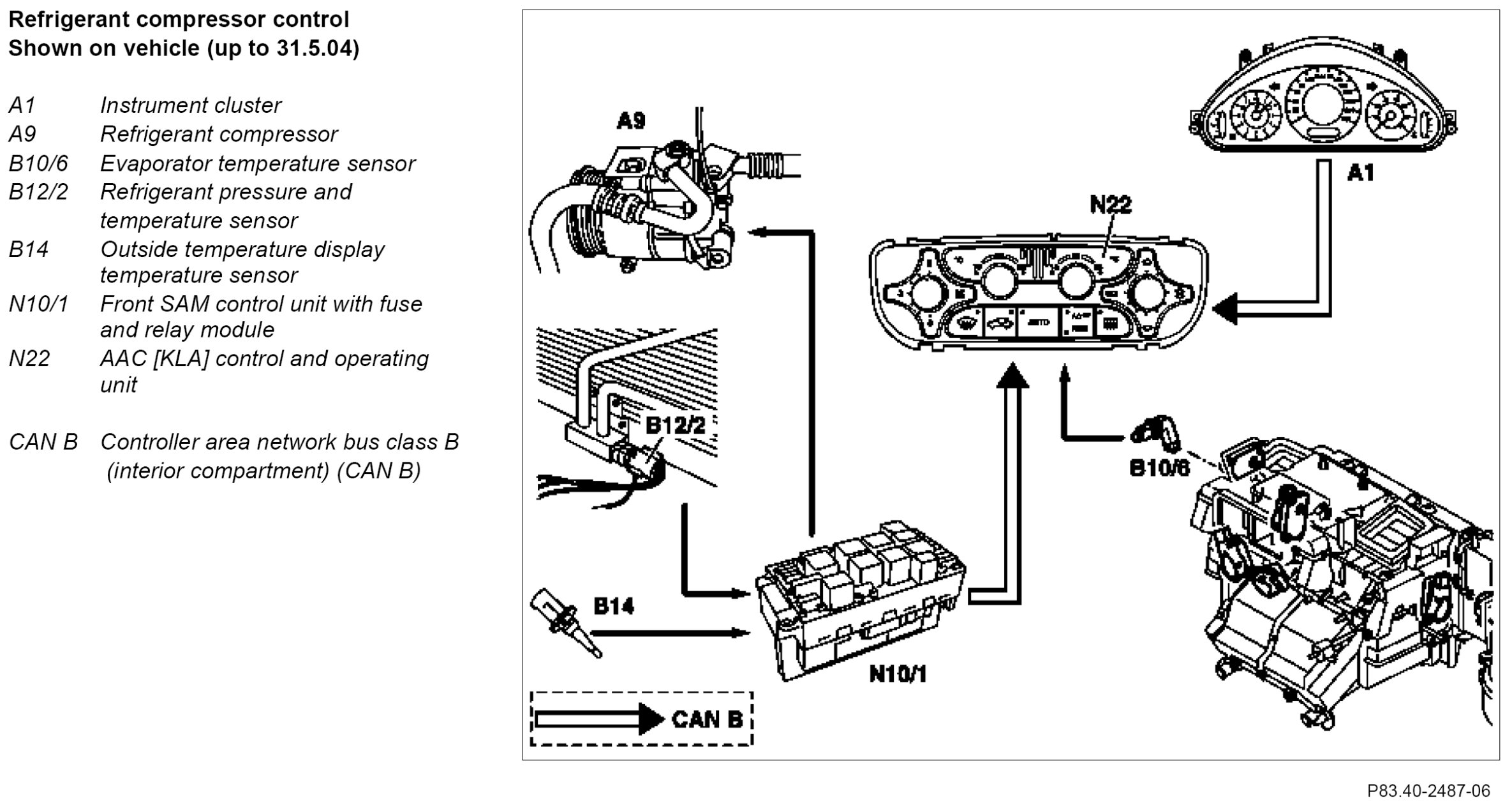

Component Identification:

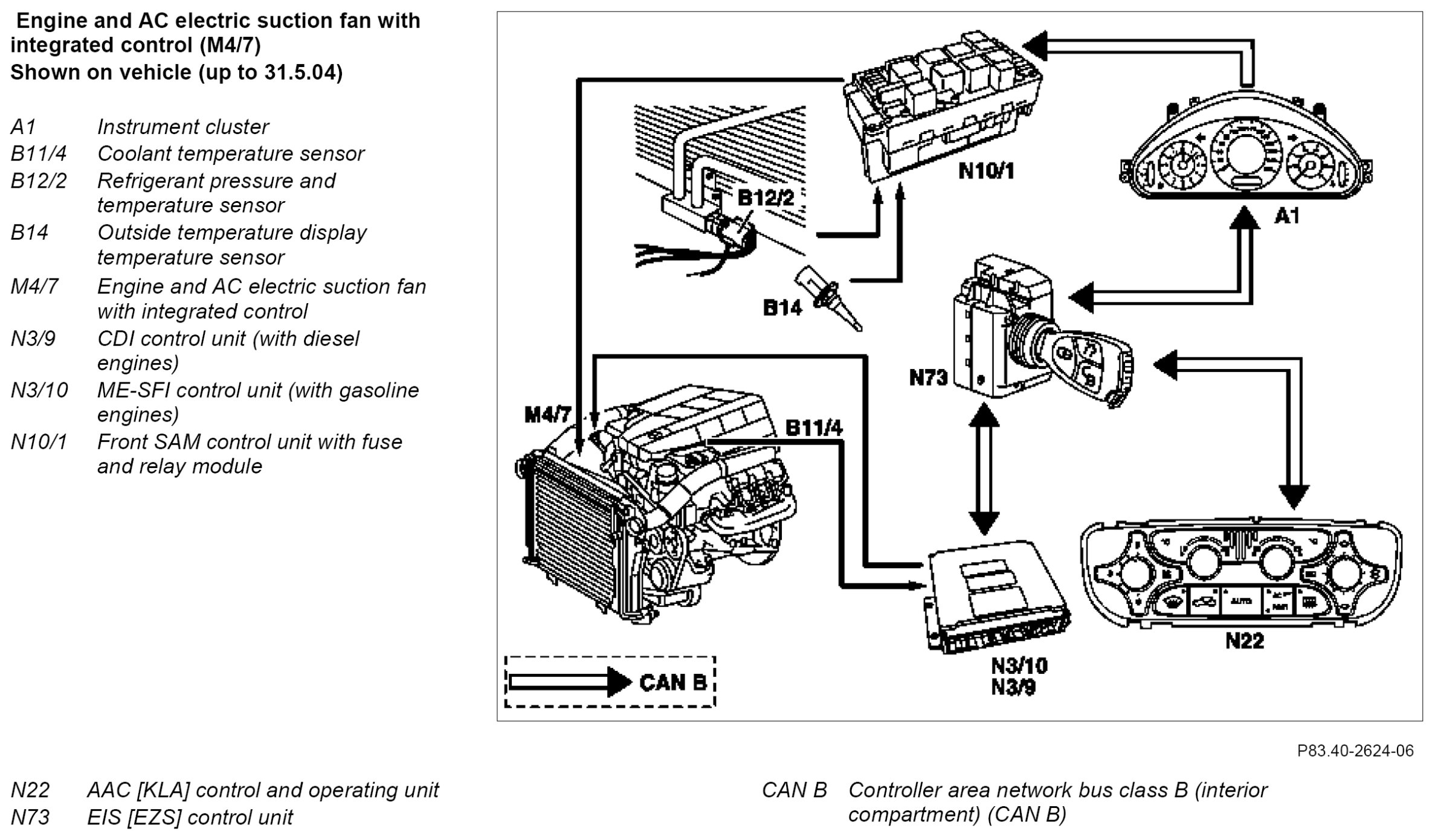

Component Identification:

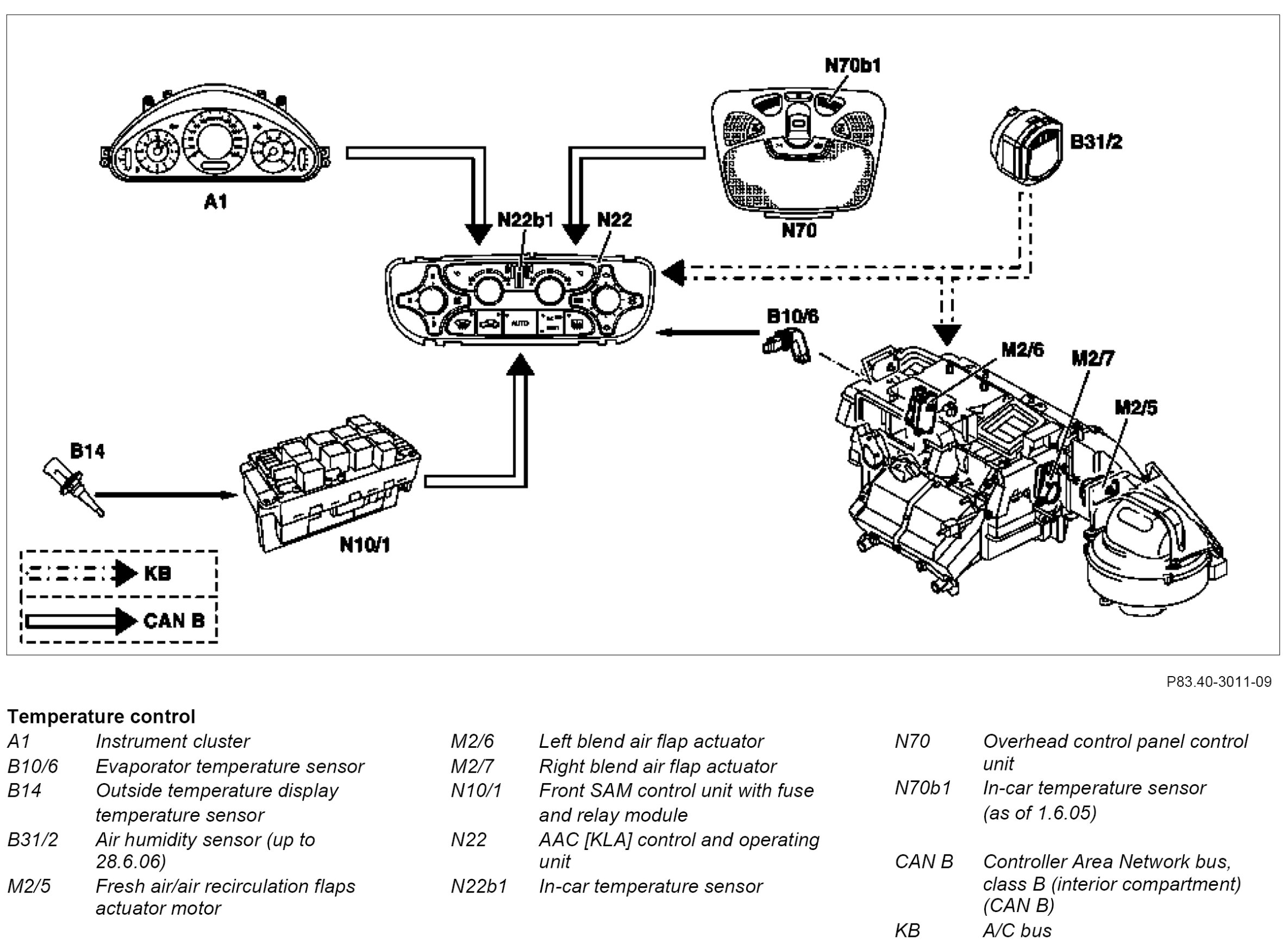

Component Identification:
