GF83.40-P-2180Q Control and Operating Unit Automatic Air Conditioning Location/Task



GF83.40-P-2180Q Control And Operating Unit Automatic Air Conditioning Location/task
- except CODE (581b) Convenience automatic air conditioning

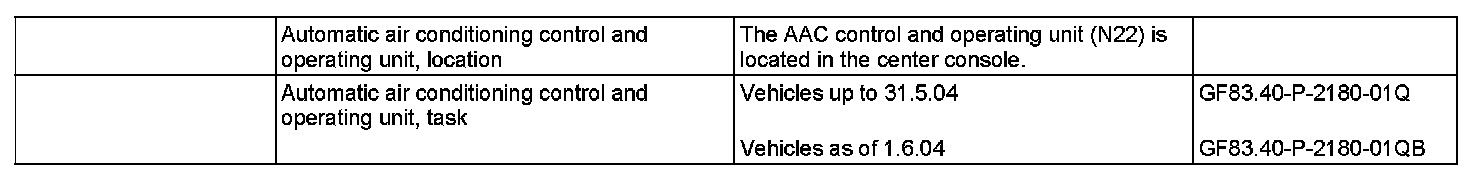

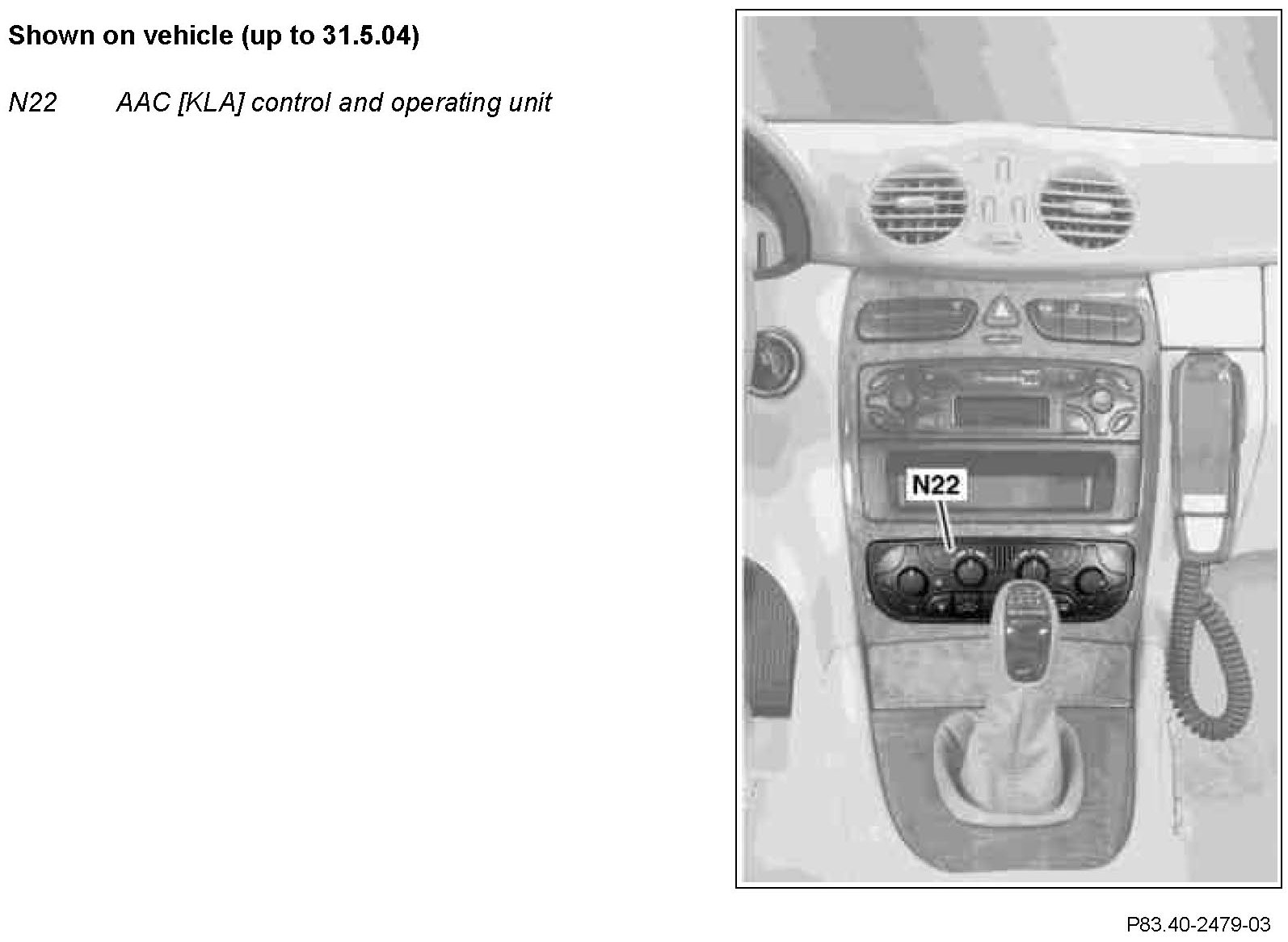

Component Identification:
