GF83.55-P-2103-03P Belt Pulley, Design



GF83.55-P-2103-03P Belt Pulley, Design
- with CODE (580) Air conditioning or Tempmatic for USA
- with CODE (580) Automatic air conditioning
- with CODE (581) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

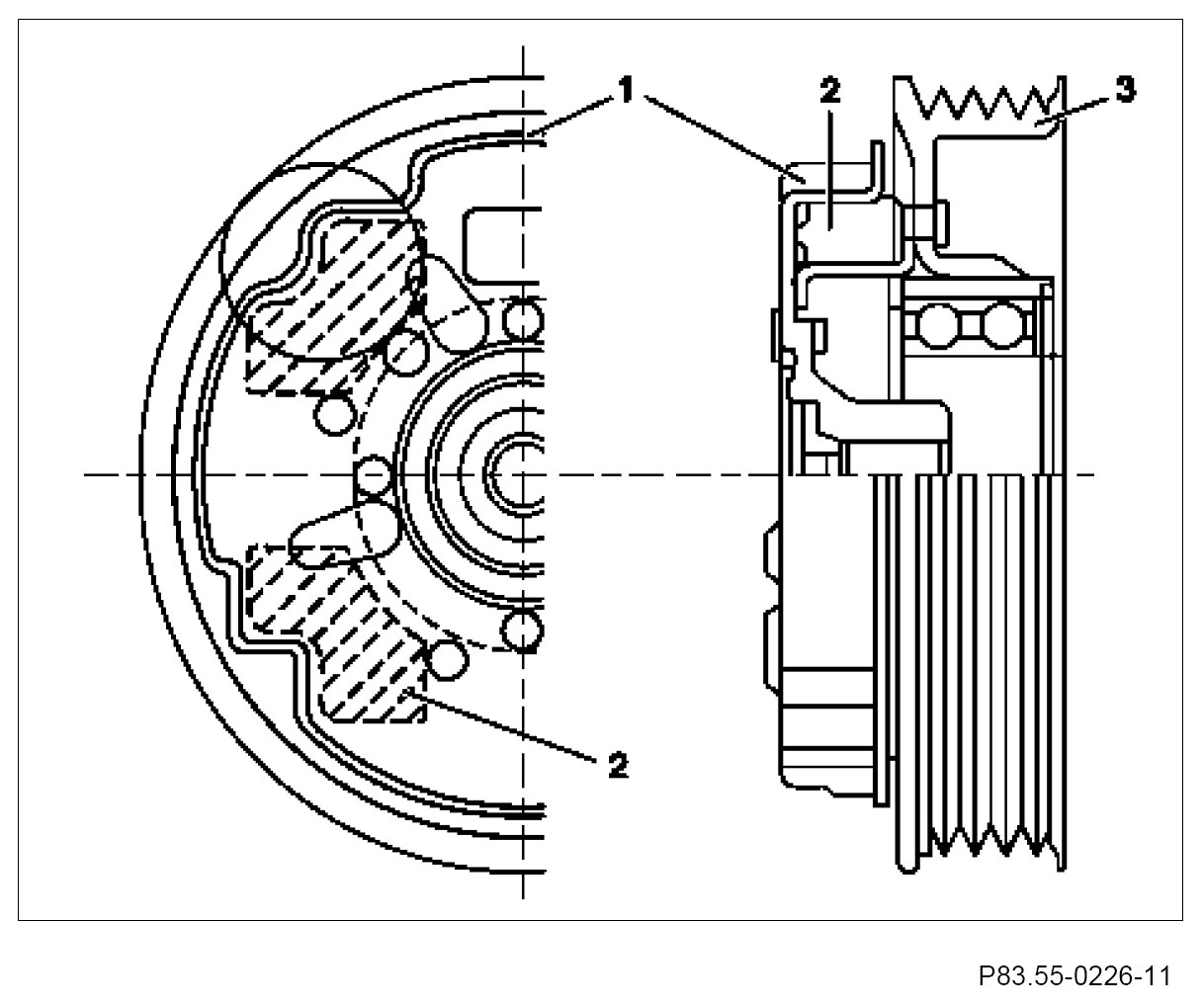

The belt pulley (3) is attached to the hub (1) via the rubbers (2) , the hub (1) being firmly connected to the refrigerant compressor shaft.
