GF83.55-P-2103-02P Belt Pulley, Function

GF83.55-P-2103-02P Belt Pulley, Function
- with CODE (580) Air conditioning or Tempmatic for USA
- with CODE (580) Automatic air conditioning
- with CODE (581) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

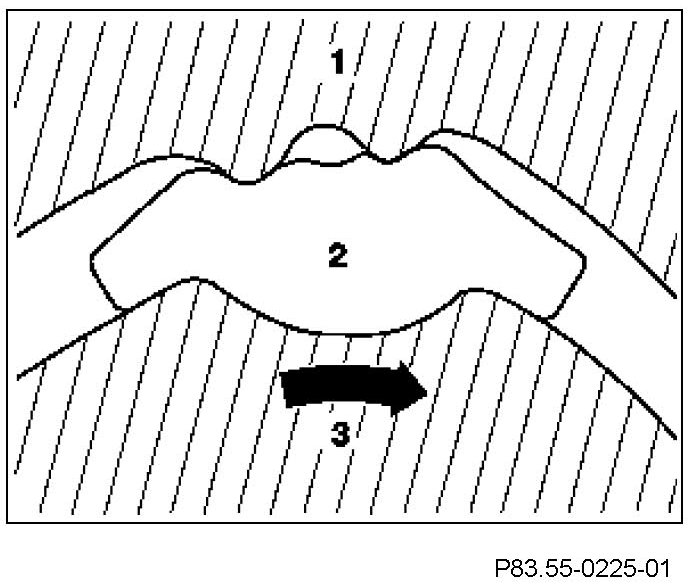

Function under normal operating conditionsUnder normal operating conditions the rubber (2) is deformation resistant. Thus it transmits the belt pulley's (3) torque to the hub (1) and at the same time to the refrigerant compressor shaft, whereby the hub (1) and belt pulley (3) turn in the direction of the arrow.
The refrigerant compressor torque < the rubber torque limit (2).In this operating condition, the rubber (2) acts as a shock absorber by inhibiting resonance via the belt with other engine components.







Function of refrigerant compressor lock up

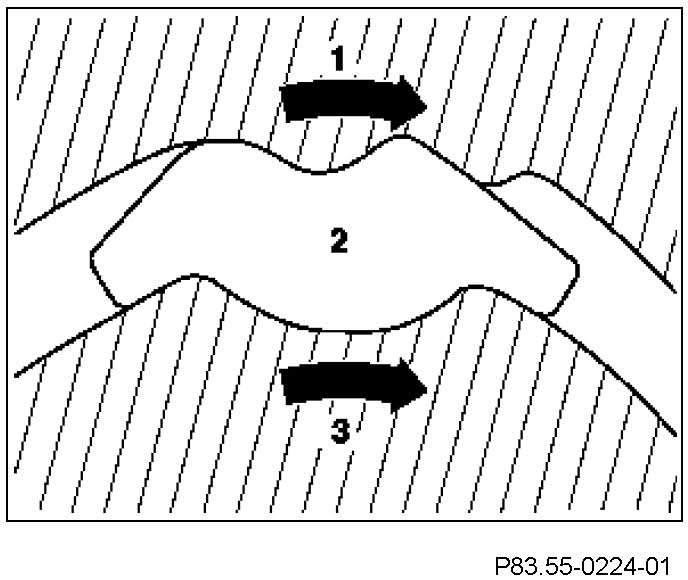

When the refrigerant compressor locks up, the torque required to drive the refrigerant compressor must be greater than the torque present on the belt pulley (3). This causes slip to occur between the belt pulley (3) and hub (1) because of the deformation and wear of the rubber (2). Thus the belt pulley (3) continues to rotate even with a locked up refrigerant compressor.
The refrigerant compressor torque > the rubber torque limit (2). In this operating condition, the rubber (2) acts as a belt pulley protection device.
