AP83.00-P-8382P Replacing Activated Charcoal Filter

AP83.00-P-8382P Replacing Activated Charcoal Filter
- with CODE (581b) Convenience automatic air conditioning

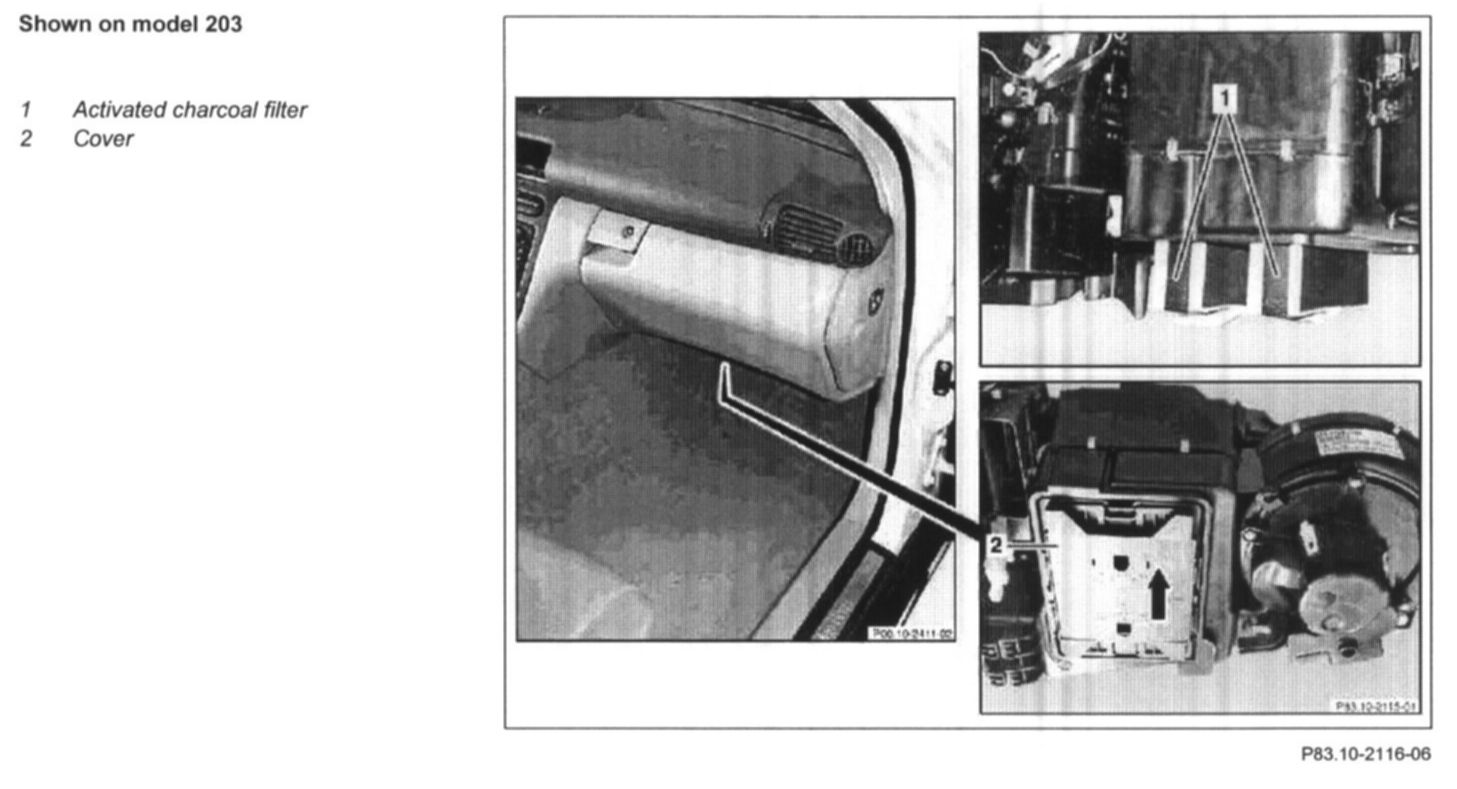

Shown on model 203:

1 Remove cover below instrument panel

NOTE: Passenger side.

2 Remove cover (2)

NOTE: Slide cover in direction of arrow. Pay attention to markings on cover.

3 Pull out both activated charcoal filters (1) from below

CAUTION: Activated charcoal filters must not be cleaned - replace.

4 Install in the reverse order.
