CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Auxiliary Cabin Heater
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications

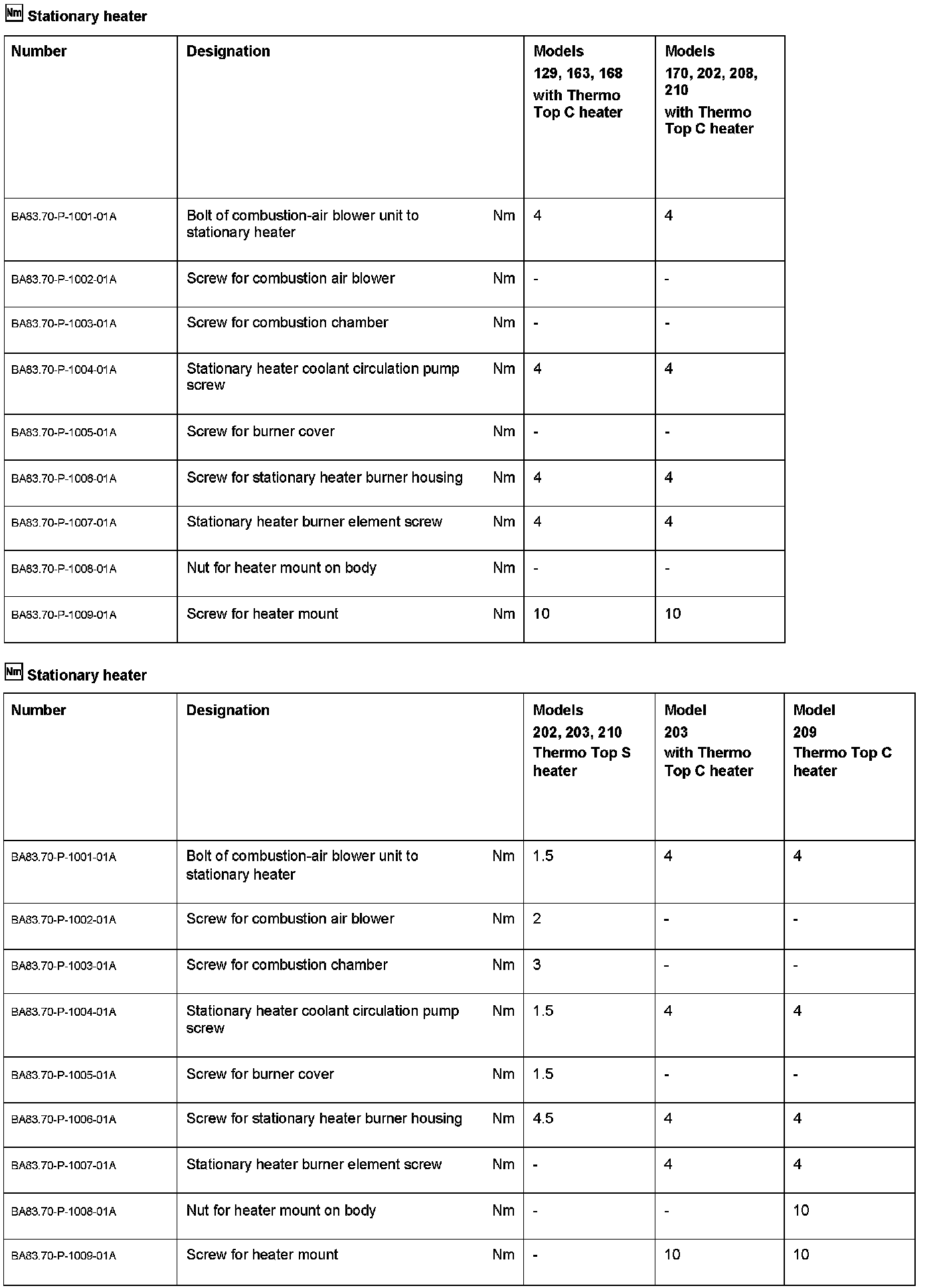

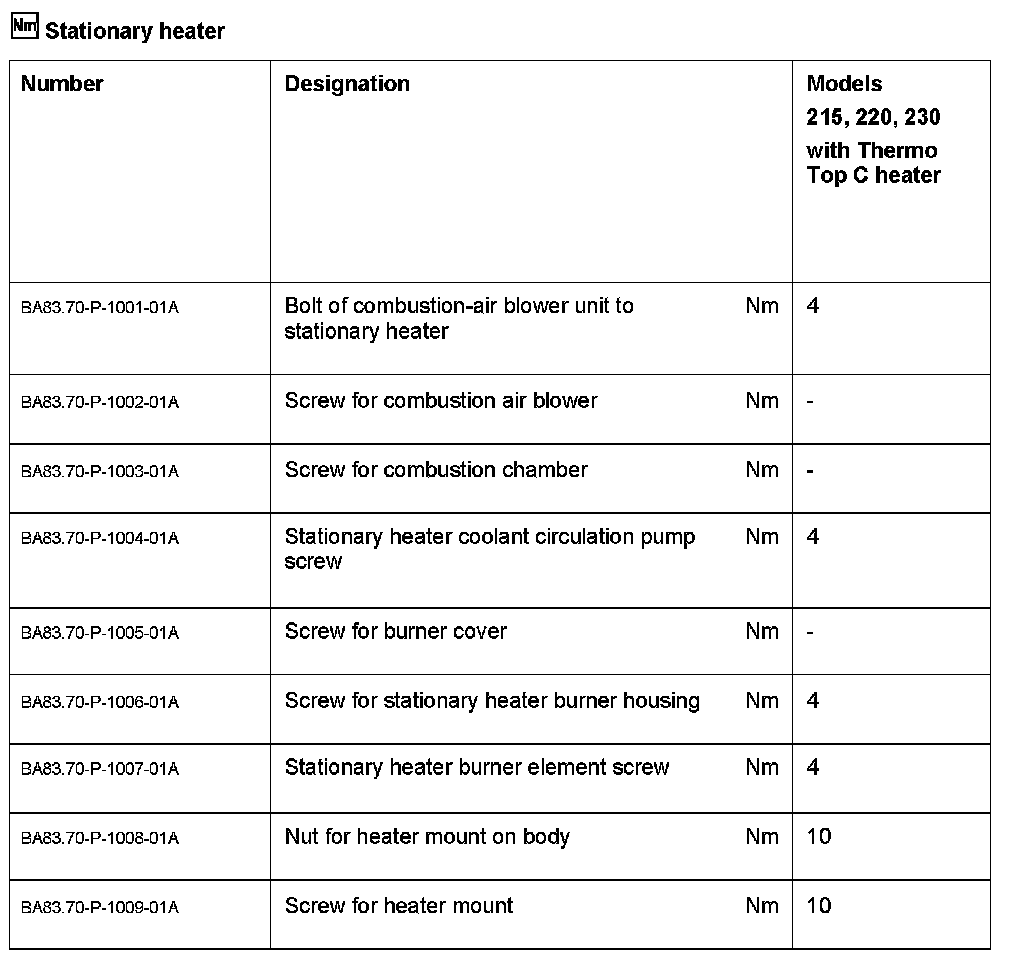

BA83.70-P-1000-01A Stationary Heater Unit
Stationary heater
Stationary Heater:
Stationary Heater:
