Home >> Mercedes Benz >> 2005 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Description and Operation >> GF83.70-P-4060Q STH Heater Unit, Location/Task/Design/Function

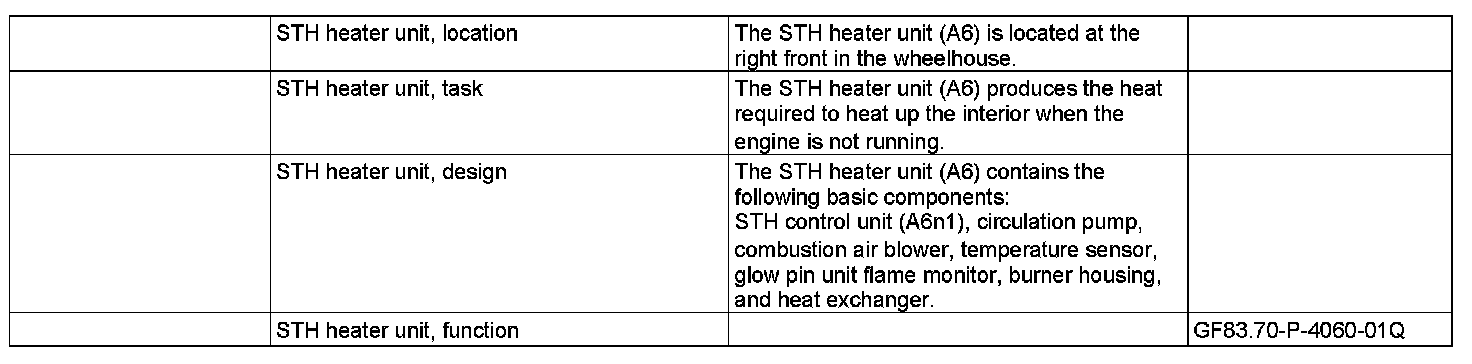

GF83.70-P-4060Q STH Heater Unit, Location/Task/Design/Function



GF83.70-P-4060Q STH Heater Unit, Location/task/design/function
- with CODE (228) Stationary heater [models 209.3 as of 1.6.04]

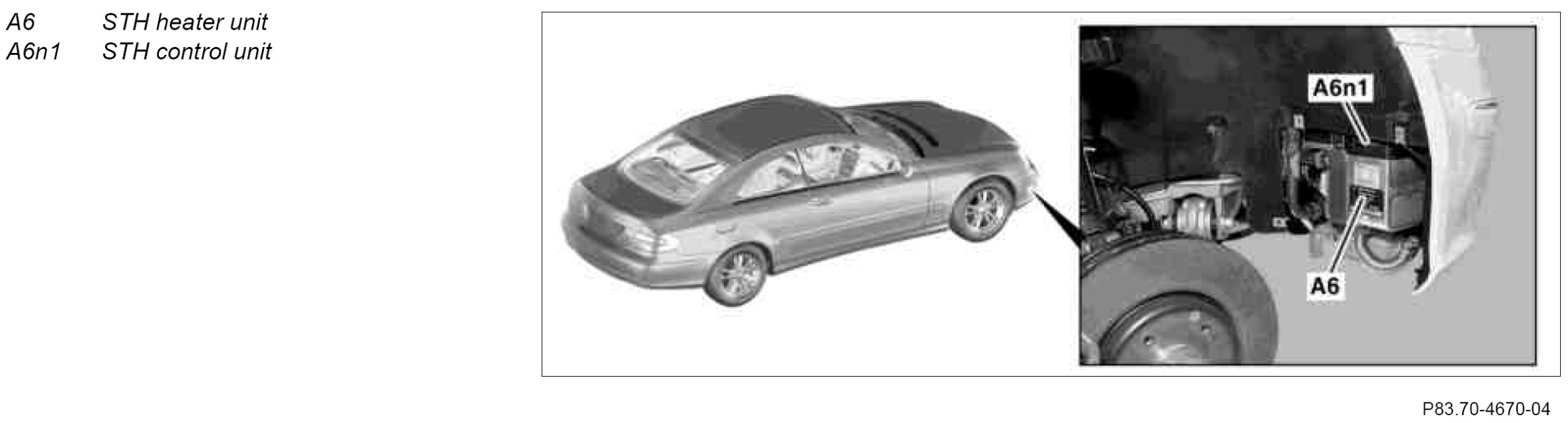

Component Identification:
